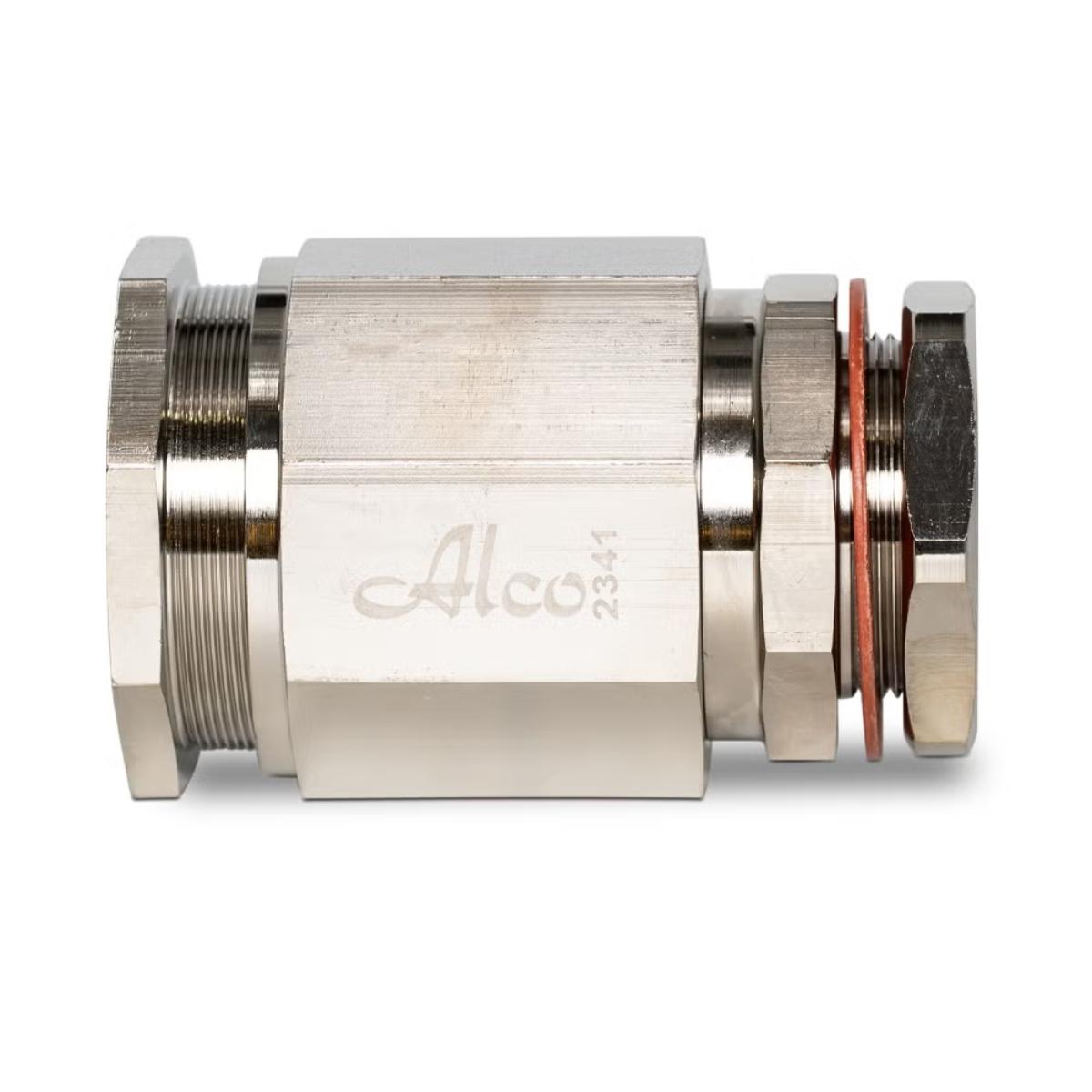

Alco AW40 Gland Industrial GP Armoured AW Series NPB (33.0-42.0mm) M40x 15mm Thread length c/w Locknut
Code: ALCAW40
Unit of measure:
EACH
Description
Alco AW40 Gland Industrial GP Armoured AW Series NPB (33.0-42.0mm) M40x 15mm Thread length c/w Locknut
Gland Industrial General Purpose Armoured AW Series. Nickel Plated Brass (NPB) (33.0-42.0mm) M40x 15mm Thread length c/w Locknut
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mounting thread Size (mm) | M40 |
| Cable Type | Armoured |
| Size | 40 mm x 1.5 mm |
| Conductor Size | 33 - 36 mm Seal B, 36 - 42 mm x 33 mm Seal A |
| Compliance Standards and Approvals | AS1939-1990 |
| Standard | AS 1939-1990 |
| Ambient air temperature for operation | -20 To 80°C |
| Box Qty | 5 |
| Hexagonal Dimension | 57.5 mm Across Flat x 61.9 mm Across Corner |
| Cable acceptance details – overall diameter (mm) | 33 To 42mm |
| Comes with Nut (Y/N) | Yes |
| UNSPCS | 39121431 |
| Seal Material | Thermoset Elastomer |
| Finish | Nickel Plated |
| Finish/Color | Nickel Plated |
| Temperature Rating | -20 to 80 deg C |
| Code of Protection | IP66,IP68 |
| Dimensions | 95 mm Uncompressed x 78 mm Compressed x 17 mm Exposed Length |
| Material | Brass |
| Thread Size | 15 mm Length |
| Brand Name | Alco |
| Item Name | Cable Gland |
| Type | General Purpose, Weatherproof |
| UOM | Metric |
| Tightening Torque | 53 N/m |
| IP Rating | IP66,IP68 |
| Environmental Conditions | IP66/68 |
| Mounting thread Length (mm) | 15mm |
