This product has now been replaced with

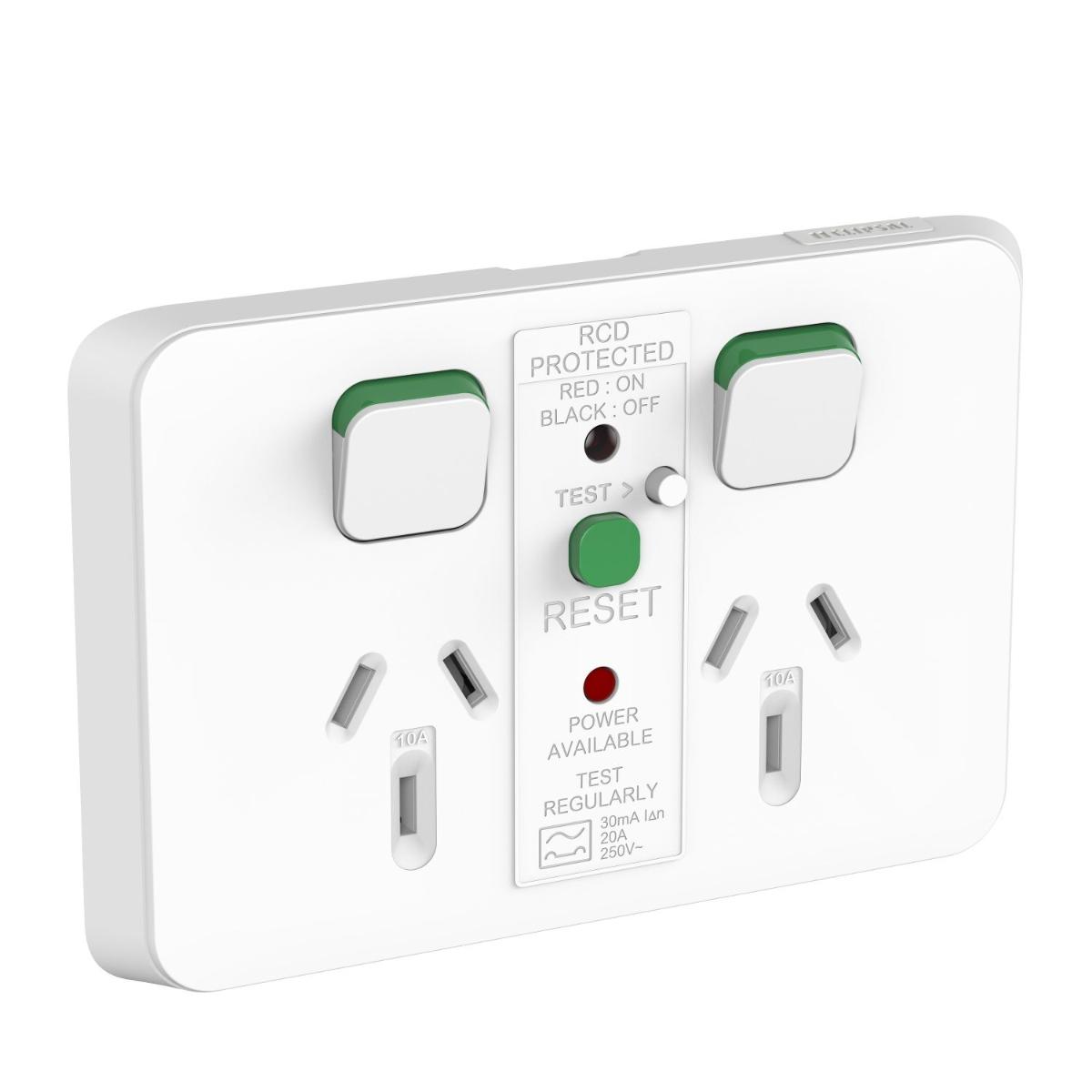

Clipsal 3025RCD30-VW Iconic, Power Outlet Twin, 30Ma, Rcd Protected, 250V, Ac, 10A, Vivid White
Code: CLI3025RCD30VW
Unit of measure:
EACH
Description
Clipsal 3025RCD30-VW Iconic Socket Switch, Twin, Double Power Point, 30MA, RCD, 10A, 250V
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 1 Pole |
| Relative humidity | 10-95 % |
| Mount | Flush |
| Installation direction | horizontal |
| Ambient air temperature for operation | 0-45 °C |
| Rockers | 2 Rocker |
| Gang | 2 Gang |
| Number of power socket outlets | 2 |
| Connection Type | Wired In |
| Supplier Code | 3025RCD30-VW |
| Number of Pins | 3 Pin |
| Ambient air temperature for storage | 0-60 °C |
| Terminals | 3 Terminal |
| Ground lug position | straight 180° position |
| Type of packing | polybag |
| Finish/Color | Matte |
| Screwdriver shape | square drive no 1 (SQ1) |
| Fixing mode | by screw |
| Device composition | 1 residual current device (RCD) 30 mA |
| Quantity per set | set of 4 |
| Range | Clipsal Iconic |
| Clamping connection capacity | 1 x 2.5...4 x 2.5mm² for flexible cable(s) |
| Weight | 110g |
| Number of rocker | 2 |
| Item Name | RCD Powerpoint |
| Device mounting | flush |
| Electrical durability | 12000 cycles |
| Number of Terminals | 3 Terminals |
| Range compatibility | Clipsal Iconic |
| Device presentation | complete product |
| Box Quantity | 5 |
| Current | 10A |
| Colour tint | vivid white (VW) |
| Shape | Rectangular |
| Standard | AS/NZS 3112 AS/NZS 3190 |
| Depth | 42mm |
| Colour | Vivid White |
| Outlet poles configuration | 2P + E with shutter |
| Rated current | 10 A at 250 V AC 50 Hz |
| Voltage | 250V |
| Sale per indivisible quantity | 1 |
| Carton Quantity | 25 |
| Height | 78mm |
| Finish | Matte |
| Width | 120mm |
| Outlet standard | Australian |
| Wire stripping length | 16mm |
| Material | PC (polycarbonate): fixing frame |
| Outlet standard deviation | Australian/New Zealand |
| Standards | AS/NZS 3190 |
| Brand Name | Clipsal |
| Product certifications | RCM |
| Surface finish | matt |
| Sockets | 2 Socket |
| Length | 120mm |
| Outlet standard description | with earthing contact |
| Product or component type | switched socket |
