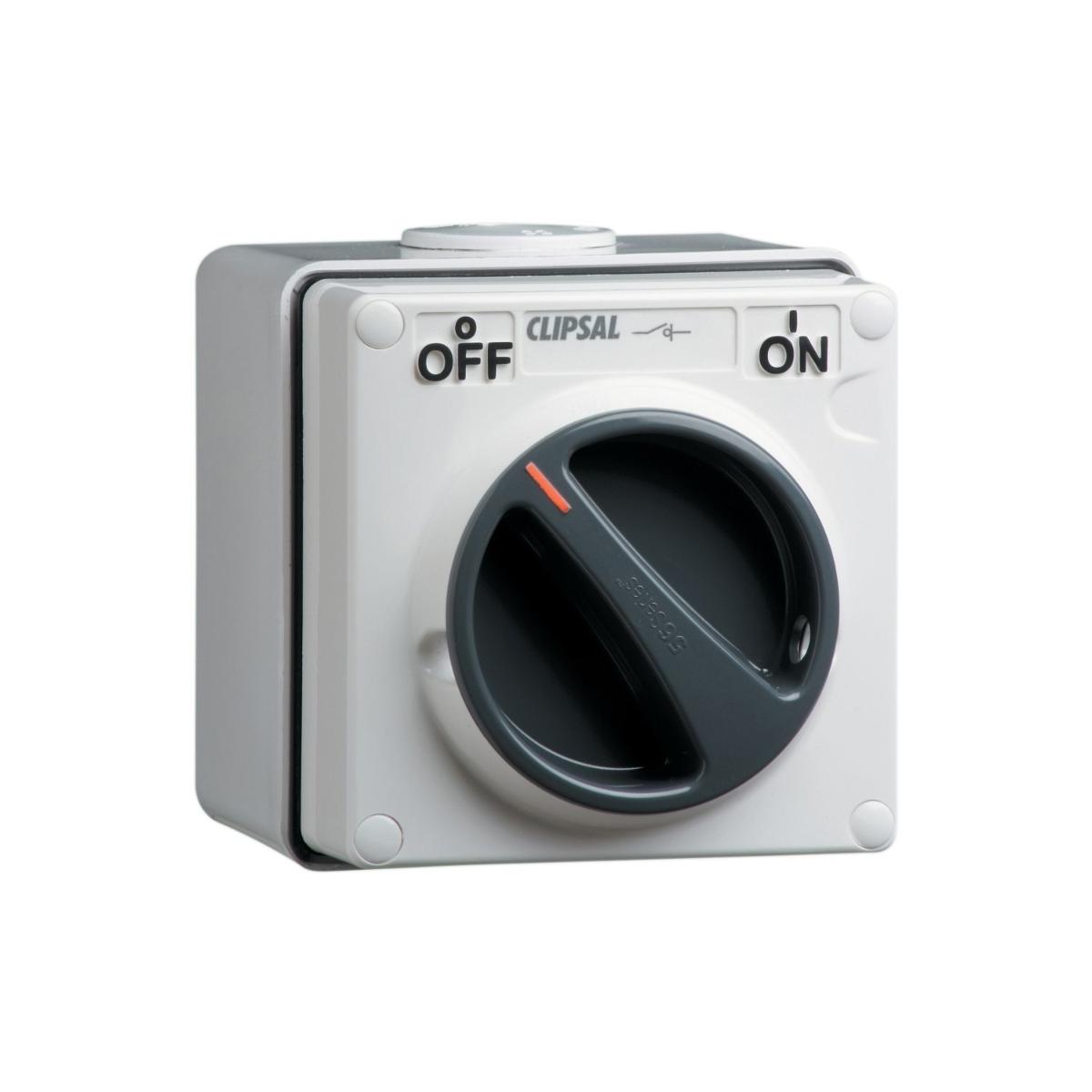

Clipsal 56SW432-RO Surface Switch, Clipsal - 56 Series, 1 Gang, 4 Pole, 440VAC, 32A, Orange
Code: CLI56SW432RO
Unit of measure:
EACH
Description
Clipsal 56SW432-RO 56 Series - Switch - 4 Pole - 32a - 500v - Orange
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 4 Pole |
| Mount | Surface |
| Ambient air temperature for operation | -25-75 °C |
| Gang | 1 Gang |
| Supplier Code | 56SW432-RO |
| Connection Type | Screw Terminal |
| Breaking Capacity | 32 kA |
| [Icw] rated short-time withstand current | 0.8 kA for 1 s |
| Targeted country | Australia |
| Fixing mode | by screws |
| Control type | rotary knob |
| IP degree of protection | IP66 conforming to AS 60529 |
| Range | 56 Series |
| Ways | 1 Way |
| Weight | 0.66kg |
| Device mounting | surface |
| Item Name | Surface Switch |
| Device presentation | basic element with full cover plate |
| Box Quantity | 1 |
| Marking location | marking on surface |
| Local signalling | without |
| Tightening torque | 0.8 N.m |
| Switch function | 4-pole |
| Market segment | small commercial |
| Current | 32A |
| Legend | On/Off |
| Phase | 3 Phase |
| Shape | Rectangular |
| [Icm] rated short-circuit making capacity | 1.7 kA |
| Colour code | RO |
| Standard | AS/NZS 3133, AS/NZS 3947.3, AS/NZS 3120 |
| Suitability for isolation | yes |
| Motor M-rating AS3133 | M180 at 500 V |
| Depth | 108mm |
| Colour | Orange |
| Rated current | 32 A |
| Voltage | 500V |
| Height | 107mm |
| Carton Quantity | 12 |
| Poles description | 4P |
| Width | 101mm |
| Device application | control |
| [Ue] rated operational voltage | 500 V AC 50 Hz |
| Pole Configuration | 4 Pole |
| Material | PC (polycarbonate) |
| Marking | ON-OFF |
| Standards | AS/NZS 3133 |
| Brand Name | Clipsal |
| Rotary handle padlocking | 2 padlocks 8-8mm |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Number of Modules | 1 Modules |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Net weight | 0.604 kg |
| Handle colour | grey |
| Product or component type | switch |
