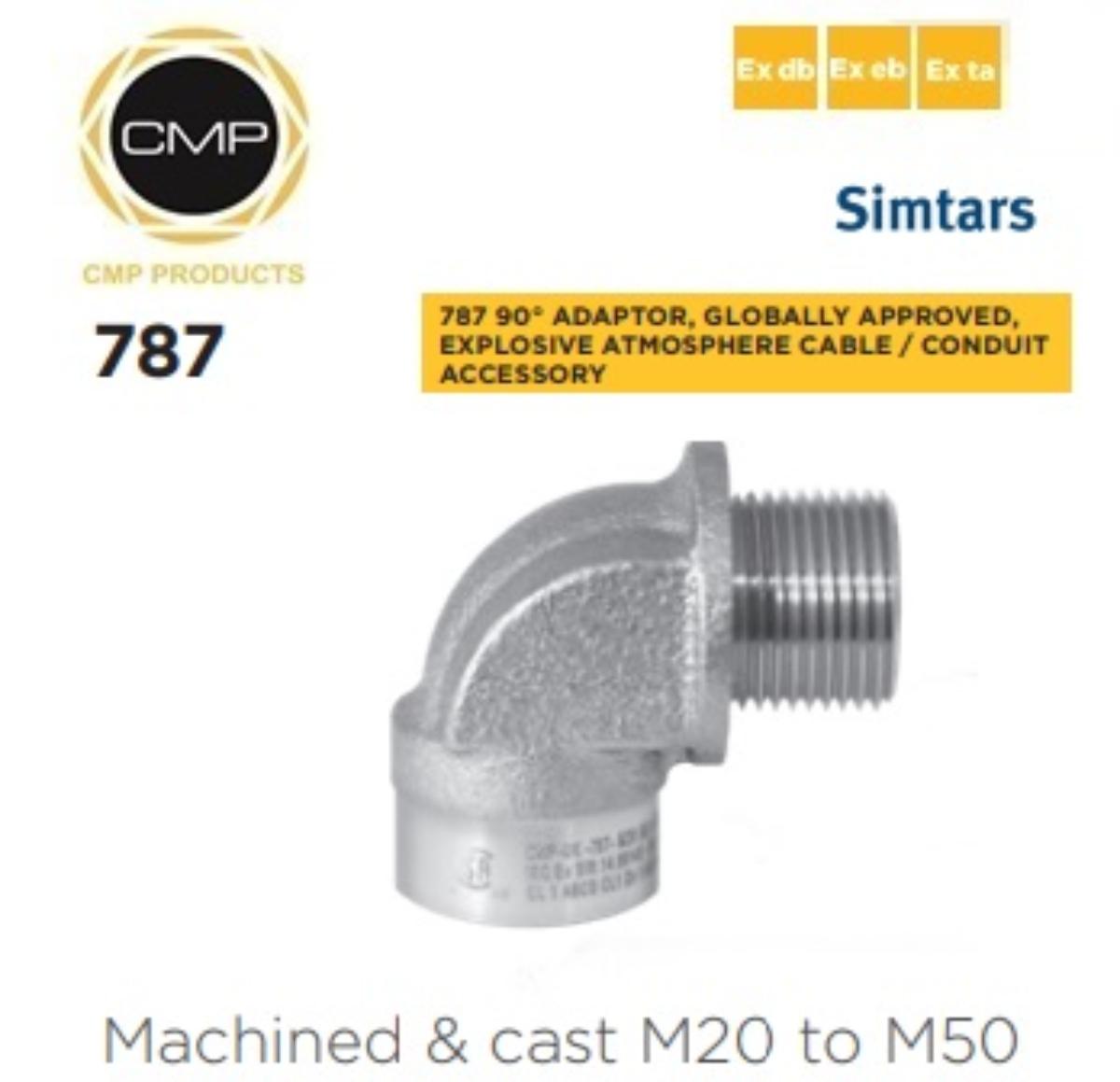

CMP 787DM3M35 Adaptor 90Deg. NPB 787(Exd/Exe) M25(M) x M25(F)
Code: CMP787DM3M35
Unit of measure:
EACH
Description
CMP 787DM3M35 Adaptor 90Deg. NPB 787(Exd/Exe) M25(M) x M25(F)
Adaptor 90Deg. NPB 787(Exd/Exe) M25(M) x M25(F)
Features:
• Adaptor 90Deg. (Exd/Exe) 787 Series , Nickel Plated Brass (NPB) M25(M) x M25(F) ,
• Protects cables from excessive bending stress
• Supplied with male or female threads
• Can be supplied with thread conversion
• Equipment interface o-ring seal available
• -60˚C to 200˚C
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Brand Name | CMP Products |
| Box Qty | 1 |
| Series | 787 Series , |
| UOM | EACH |
| Length | 51.6mm |
| IP Rating | IP66, IP67 and IP68*** |
| Size | M25(M) x M25(F) , |
| Height | 49.3mm |
| Material | Nickel Plated Brass (NPB) |
| Width | 29mm |
| Mounting thread Length (mm) | (M) 15mm Thread length |
| Colour | Silver |
