Description

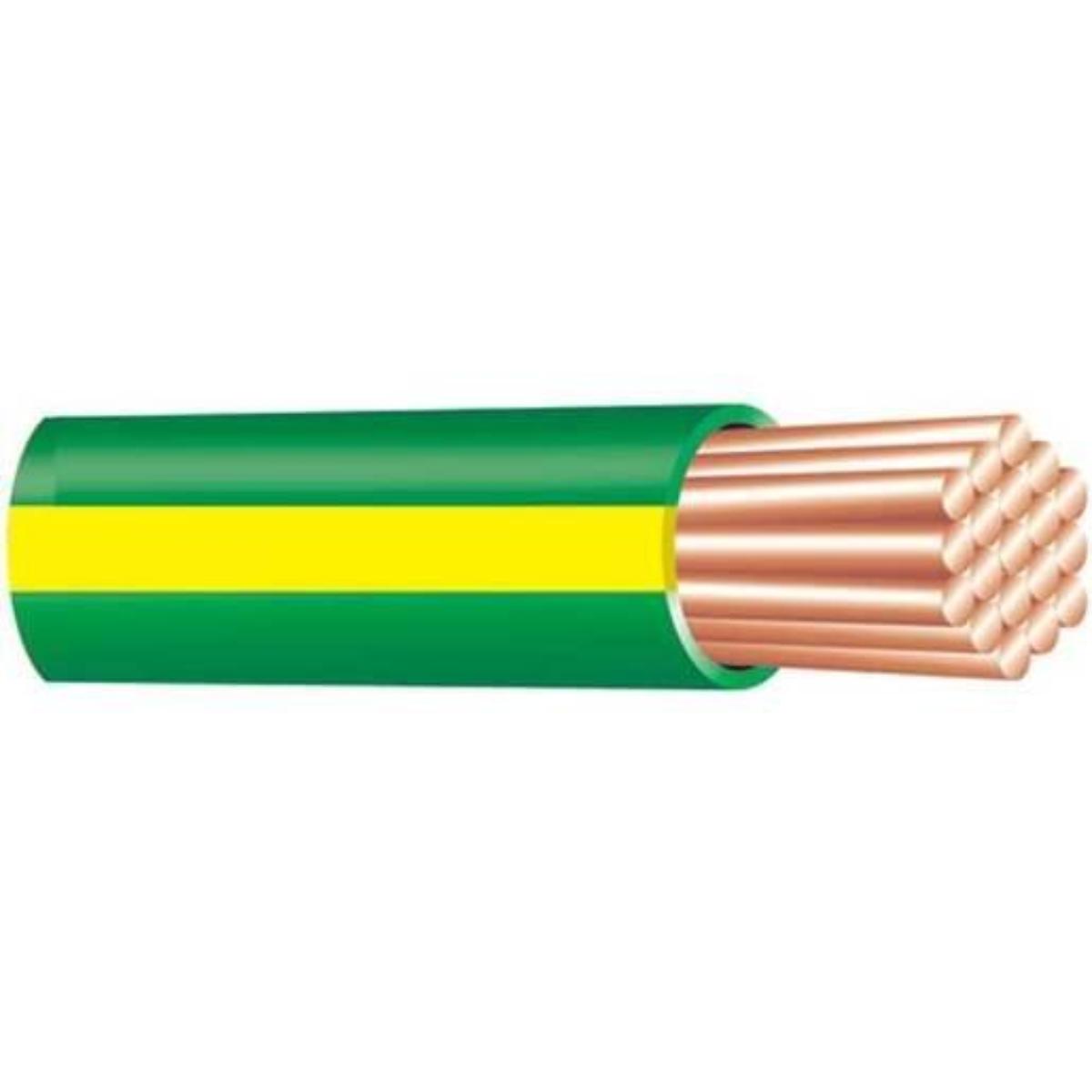

Electra Cables 25MM 1C V90HT Flexible Earth Cable, 600/1000V, 105°C, Plain Annealed Copper, 100m, Green/Yellow
The Electra Cables Flexible Earth 25mm 1C V90HT in Green/Yellow is a high-performance cable designed for effective earthing solutions in various electrical installations. This single-core flexible earth cable features a conductor made from plain annealed copper, ensuring excellent conductivity and reliability. With a cross-sectional area of 25mm2, it is rated for voltages up to 600/1000V, making it suitable for demanding applications. The cable is insulated with V90HT PVC, which provides durability and resistance to high temperatures, withstanding up to 105°C. Its overall diameter of 9.1mm and insulation thickness of 1.2mm contribute to its flexibility and ease of installation in tight spaces. Compliant with AS/NZS standards, this cable ensures safety and performance in accordance with industry regulations, making it an ideal choice for professional electrical projects.
Features:
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Size | 25mm2 |
| Compliance Standards and Approvals | AS/NZS 5000.1,AS/NZS 1125,AS/NZS 3808 |
| Colour | Green,Yellow |
| Brand Name | Size |
| Insulation Material | V90HT PVC |
| Thickness | 1.2mm |
| UOM | Metric |
| Length | 100m |
| Voltage | 600/1000V |
| Conductor Material | Plain Annealed Copper |
| Temperature Range | 105°C |
| Number of Cores | 1 |
| OD or HD | 9.1mm |
