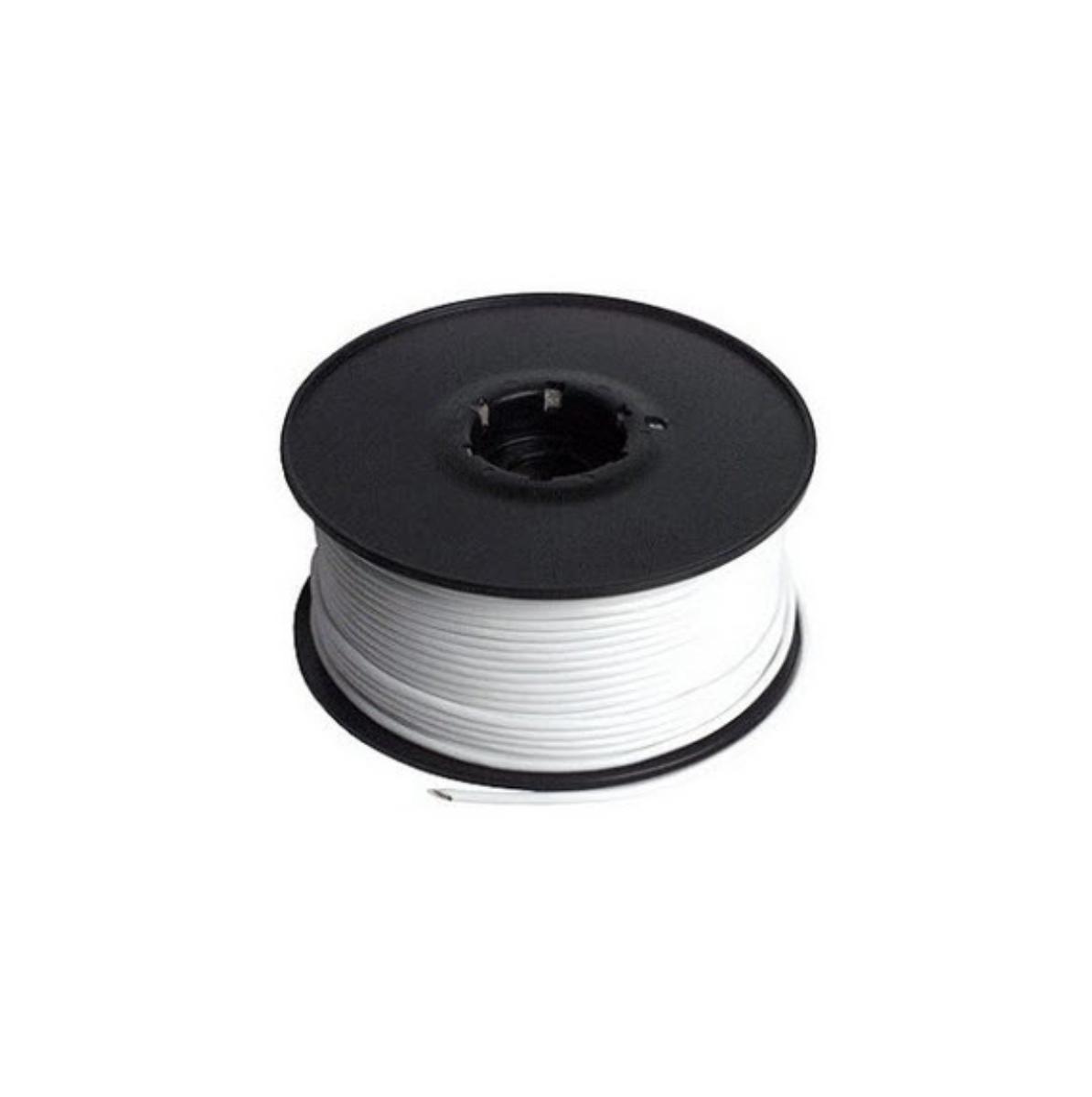

Electra Cables 14/0.20 Security Cable, 4 Core, 0.44mm2, Plain Annealed Copper, V-75 PVC Insulation, 100VDC, 100m Length, White
The Electra Cables Security Cable is a high-performance solution designed for various security applications. This 4-core cable features a conductor size of 0.44mm2, constructed from plain annealed copper, ensuring excellent conductivity and reliability. The insulation is made from V-75 PVC, providing robust protection against environmental factors while maintaining flexibility for easy installation. With a voltage rating of 100VDC and 32VAC, this cable is suitable for low-voltage security systems. Measuring 100m in length with a diameter of 4.4mm, the cable is designed to meet compliance standards AS/NZS 1125 and AS/NZS 3808, ensuring it adheres to industry regulations. The insulation thickness is 0.3mm, while the sheath thickness is 0.5mm, contributing to its durability and performance in demanding environments. Backed by a one-year warranty, this security cable offers peace of mind for your electrical installations.
Features:
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Warranty | 1 Year |
| Conductor Size | 0.44mm2 |
| Size | 0.44mm2 |
| Compliance Standards and Approvals | AS/NZS 1125 (Conductor),AS/NZS 3808 (PVC) |
| Number of Strands | 14 |
| Colour | White |
| Strand Size | 0.20mm |
| Brand Name | Size |
| Thickness | 0.3mm (Insulation),0.5mm (Sheath) |
| Insulation Material | V-75 PVC |
| UOM | Metric |
| Conductor Area | 0.44mm2 |
| Length | 100m |
| Voltage | 100VDC,32VAC |
| Conductor Material | Plain Annealed Copper |
| Diameter | 4.4mm |
| Number of Cores | 4 |
