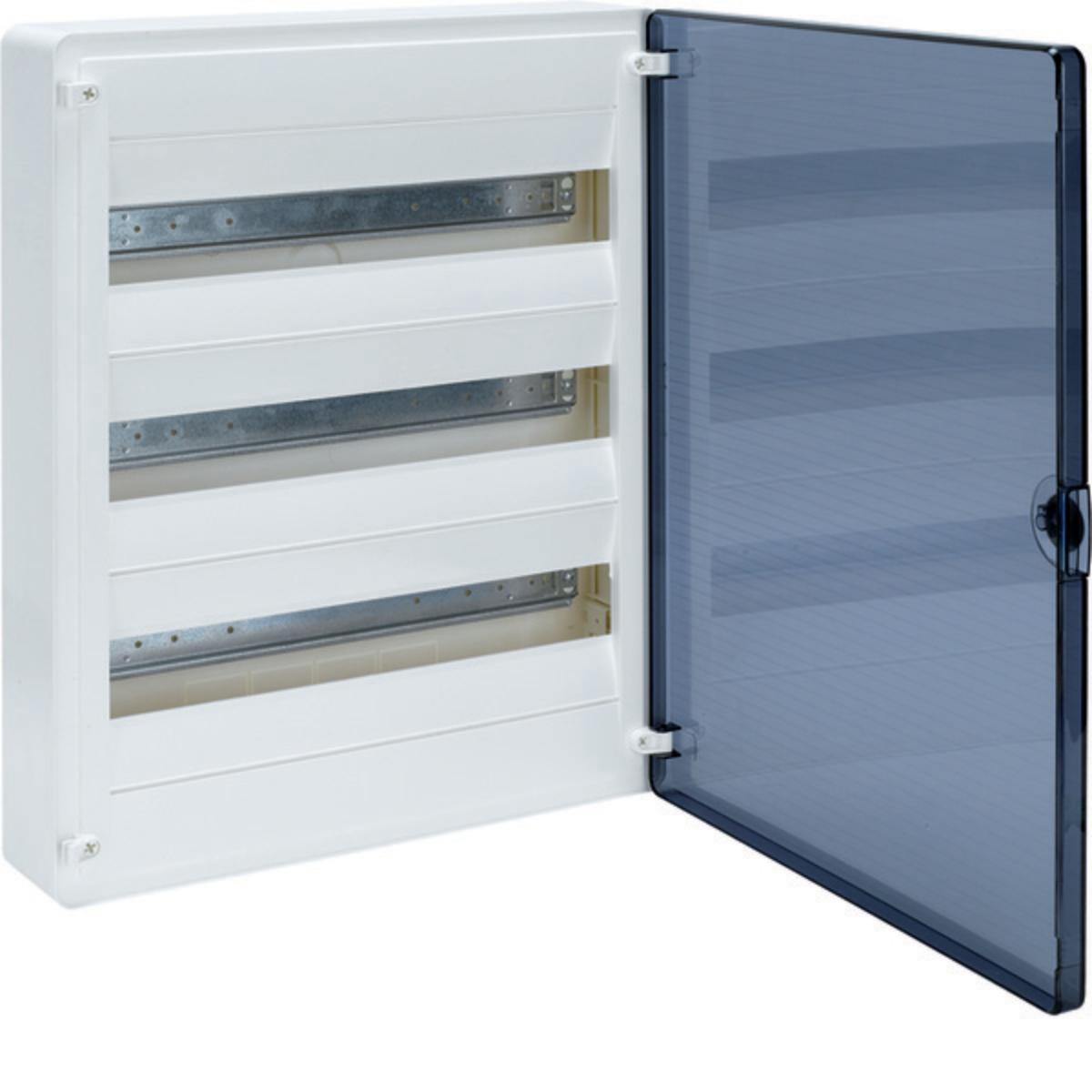

Hager VS318TT Loadcentre, Small Distribuitor, Golf, Surface, Transparent Door, DZA, 54 Module, 3 Row
Code: HAGVS318TT
Unit of measure:
EACH
Description
Hager VS318TT Loadcentre, Small Distribuitor, Golf, Surface, Transparent Door, DZA, 54 Module, 3 Row
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 54 Pole |
| Type of closure | Other |
| Mount | Surface |
| RAL-number | 9010 |
| Number Of Rows | 3 |
| Cover model | Closed |
| Transparent cover/door | TRUE |
| Depth | 99 |
| Inner depth | 99 |
| With Or Without Door | With Door |
| Colour | White |
| Height Packaging (mm) | 105 |
| Extension possible | TRUE |
| With mounting plate | FALSE |
| Door Hinge Direction | Side Hinge |
| Width in number of modular spacings | 18 |
| Length Packaging (mm) | 540 |
| Height | 500 |
| Housing material | Plastic |
| Width | 390 |
| Max. switching power LED | TRUE |
| With Or Without Din Rail | With Din Rail |
| Material | Plastic |
| Perforated | Other |
| Type of covering | Door |
| Weight | 3.3Kg |
| Earthing terminal block | TRUE |
| Brand Name | Hager |
| Plain or Transparent Door | Transparent |
| Length | 540mm |
| IP Rating | IP40 |
| Mounting method | Surface mounted |
| DIN-rail | TRUE |
| Barcode | 3250616595743 |
| With lock | FALSE |
| Width Packaging (mm) | 405 |
