Description

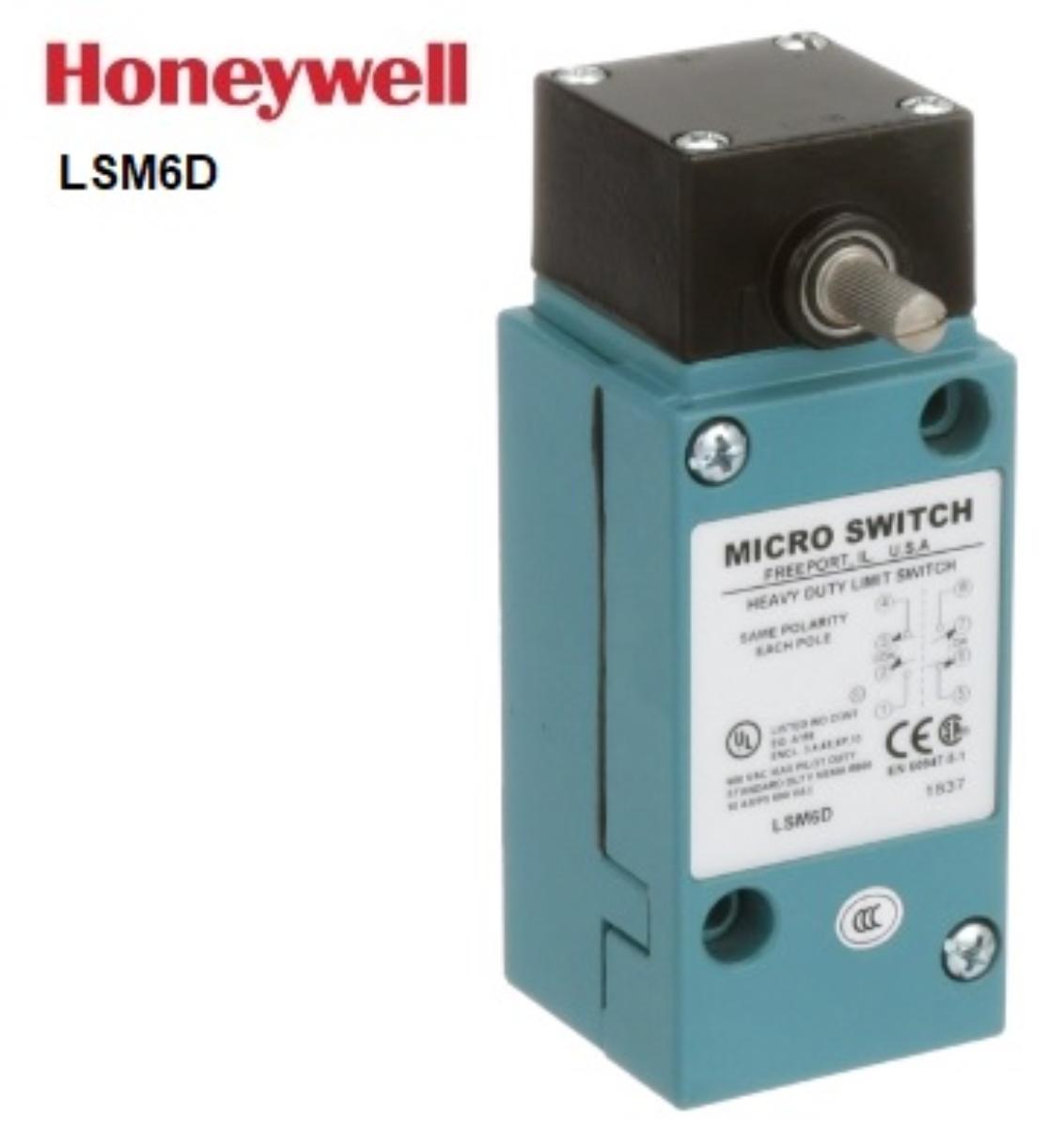

Honeywell LSM6D Limit Switch, Side rotary, Center Neutral, LSM Series, 10 Amp, Plug-in Double Pole, Center Neutral (Pole 1 operates CCW, Pole 2 operates CW), 1/2 inch conduit Entry, NO Lever included
Limit Switch, Side rotary, Center Neutral, LSM Series, 10 Amp, Plug-in Double Pole, Center Neutral (Pole 1 operates CCW, Pole 2 operates CW), 1/2 inch conduit Entry, NO Lever included
Features:
• LSM - Center neutral: One set of contacts operates on the clockwise rotation, and another set on the counterclockwise rotation. 53° minimum overtravel.
• Operating temperature range from -1°C to 121°C [30°F to 250°F].*
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Contact type | Snap action double break |
| Standard | IEC/EN 60947-5-1 |
| Range | LSM Series |
| Type Metal / Poly | compact: epoxy coated zinc die cast plug-in: epoxy coated aluminum die cast |
| Brand Name | Honeywell |
| Mounting | 4 Hole External Surface Mount |
| Box Quantity | 1 |
| Contact Configuration | Center Neutral (Pole 1 operates CCW, Pole 2 operates CW) Double Pole |
| IP Rating | IP65 |
| UNSPCS | 39122210 |
| Body Only / Complete | Complete Body |
| Head Type | Side Rotary Center Neutral |
| Current | 10A |
| Standards and Approvals | IEC/EN 60947-5-1 |
