Description

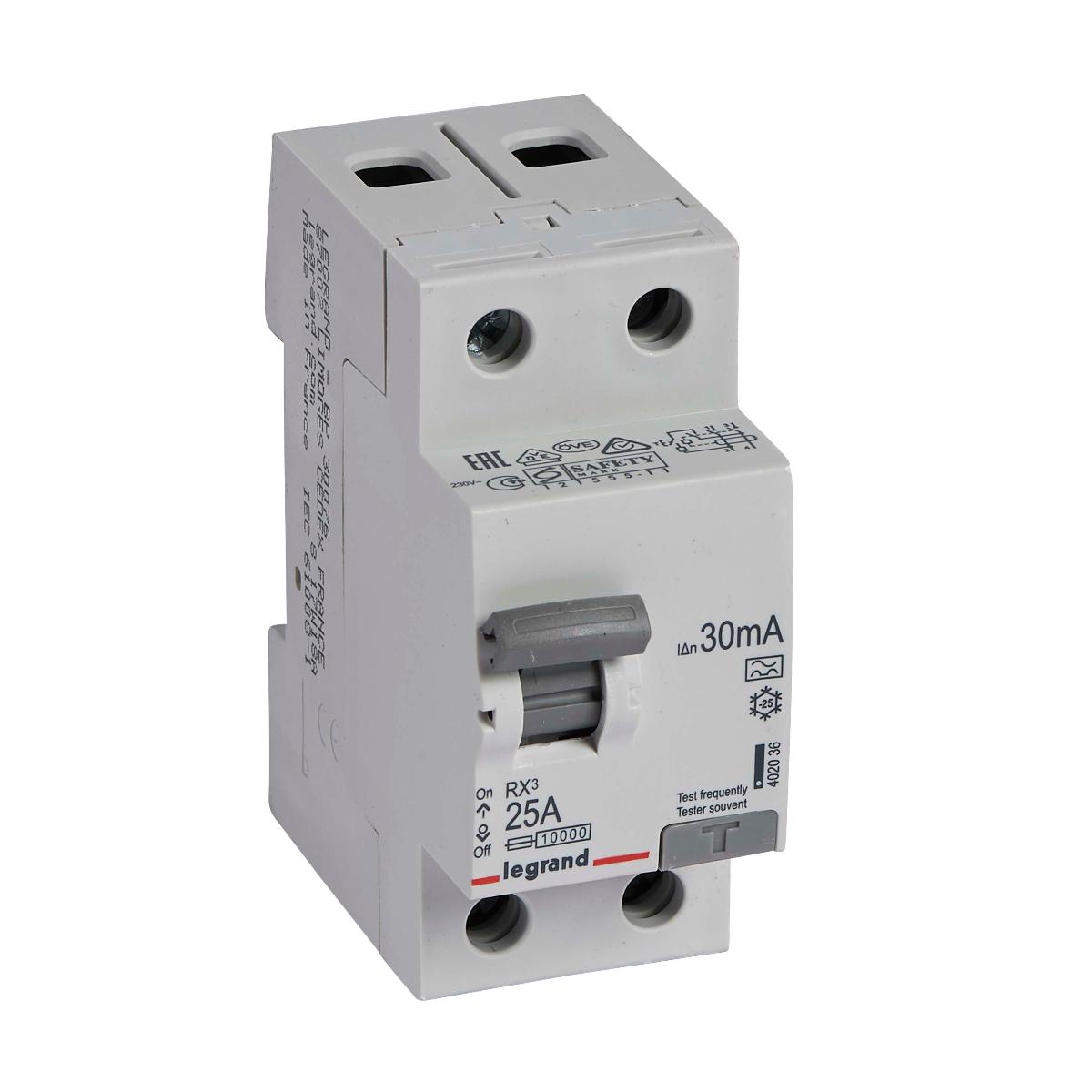

Legrand 402036, Legrand RX³ Type A 25A 240V 30mA 2 Pole RCCB
The RX³ range of RCCBs are the ultimate solution for controlling, protecting and isolating electrical circuits. With positive contact indication, they effectively protect against direct and indirect contact while also guarding insulation faults.
Features:
• Electromagnetic residual current function with current-sensing relay technology
• Type A, suitable for use with residual current with a DC component
• Terminals protected against direct finger contact, IP20, with faceplate
• Inputs and outputs via screw terminals
• Width: 2 Module spacings (2 x 17.8mm)
• Compatible with prong-type and fork type supply busbars
• Does not accept auxiliaries
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Brand Name | Legrand |
| IP Rating | IP20 |
| Height | 88.9 |
| Width | 35.6 |
| Depth | 77.8 |
| Weight | 183.35 |
