Description

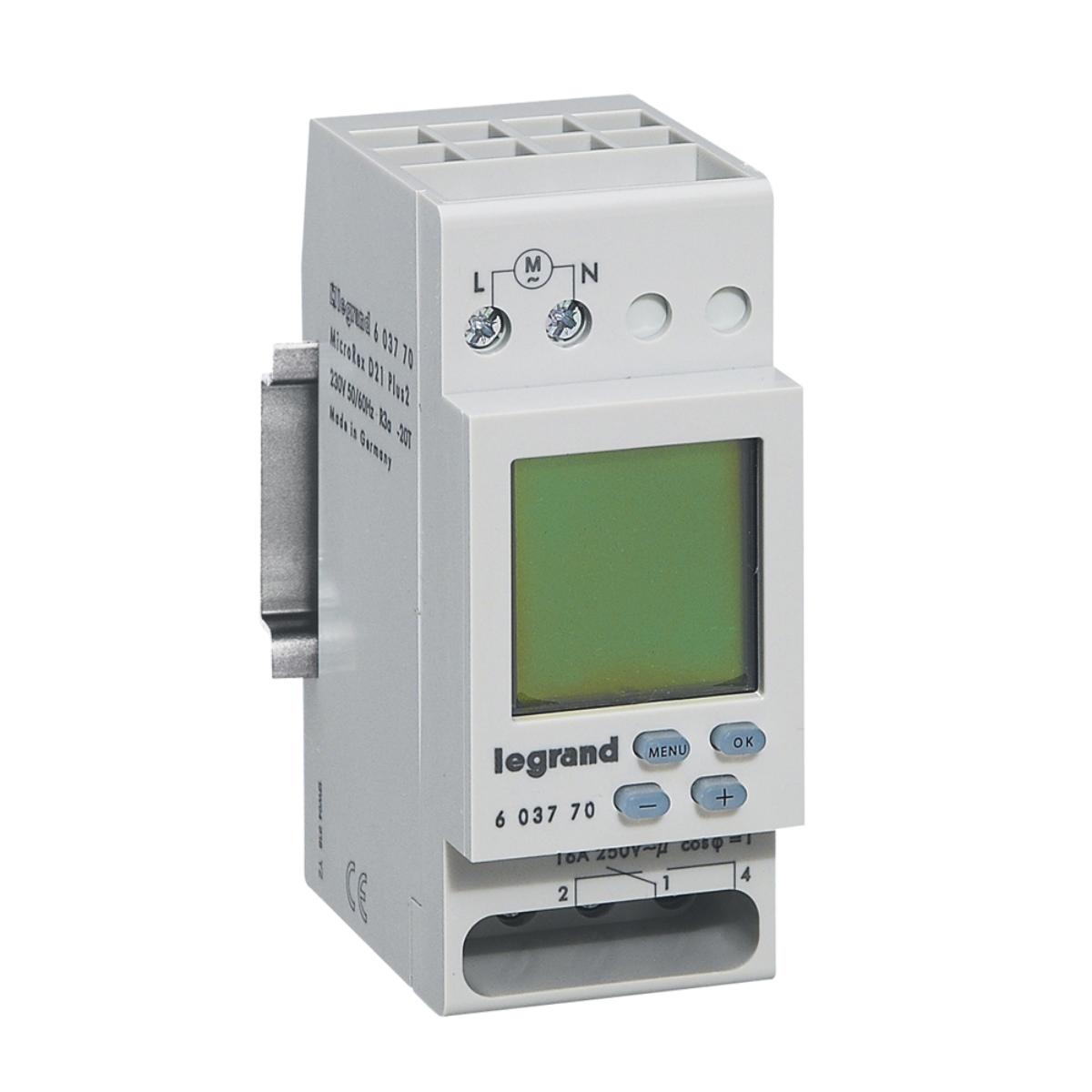

Legrand 603770, Digital time switch daily/weekly program 1 channel 240V a.c. 3yr reserve 16A 2 module
Features:
• MicroRex Plus 2 - programmable time switches - with digital display
• Conform to EN 60730-1 and EN 60730-2-7
• Digital daily weekly DIN rail mounting time switches
• A programme consists of a ON and OFF time and their assignment to certain days of the week (or a combination of days) and a selected channel (for the 2-channel version)
• Additional features:
• manual override (permanent ON or OFF)
• automatic override (ON/OFF): actual program will be inversed (ON->OFF, OFF->ON) till next programmed ON time
• working reserve : 3 years
• replaceable battery
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Memory Location | 28 |
| Warranty | 1 Year |
| Mount | Din Rail |
| Depth | 60 |
| Weight | 135.5 |
| Brand Name | Legrand |
| Item Name | Timer Switch |
| EAN/UPC | 2000000828886 |
| Number of Modules | 2 |
| Number of Channels | 1 |
| Voltage | 230 V |
| Degree of Protection | IP20 |
| Height | 35.6 |
| Current | 16A |
| Width | 83 |
