Description

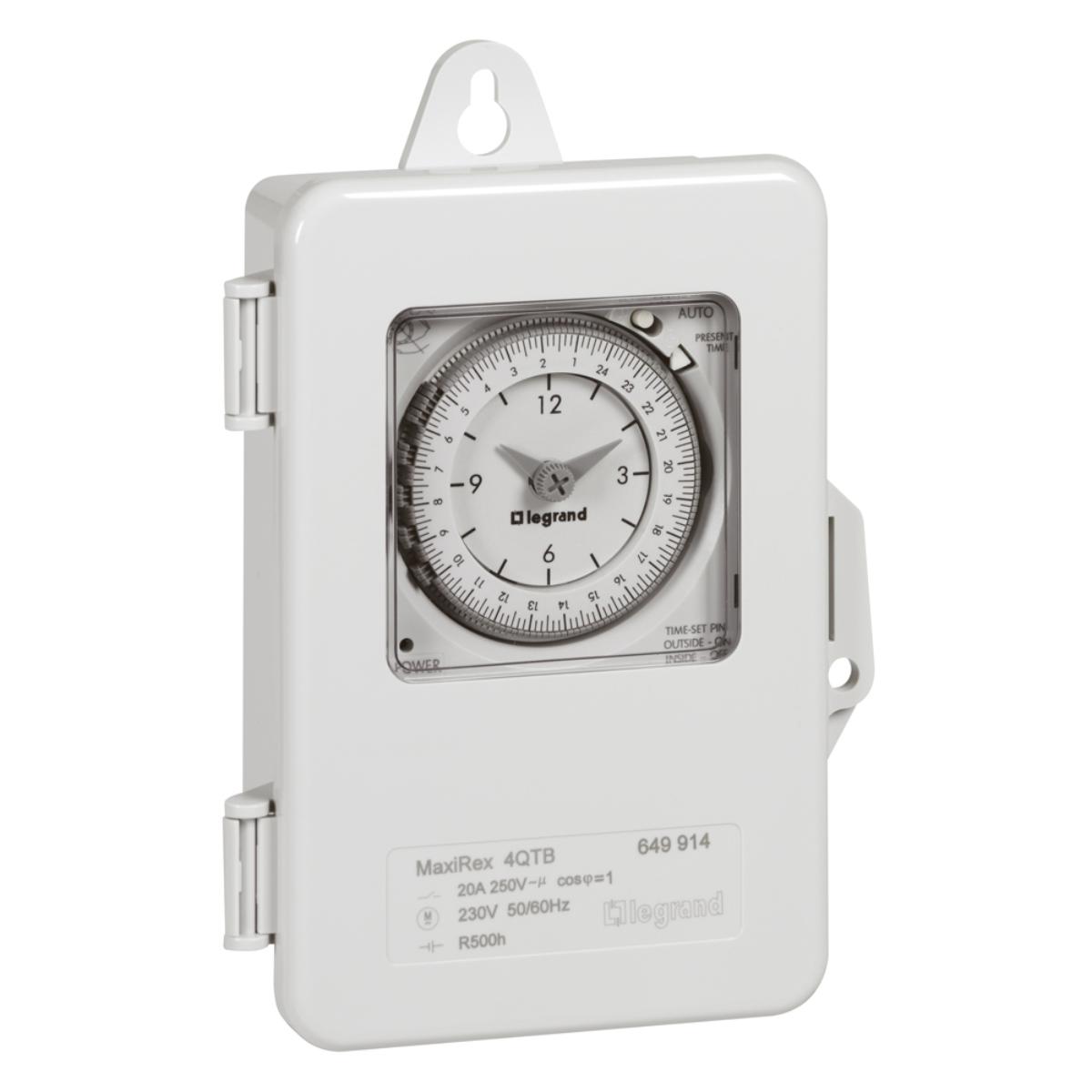

Legrand 649914, Analogue time switch 24 hour program 20A - with 500 hours working reserve 4 time switch - 4QTB with IP53 enclosure
Analogue time switch 24 hour program 20A - with 500 hours working reserve 4 time switch - 4QTB with IP53 enclosure
Features:
• Robust analogue daily and weekly time switch for DIN-Rail mounting, wall mounting and for installation in plastic box (4 terminal version)
• With manual switch (on/Automatic)
• Hands can be moved clockwise and counter-clockwise
• 24 hour - with 500 hr working reserve
• 4QTB (230V - 50Hz) with IP53 enclosure
• Shortest switching time: 30 minutes (1 segment = 10 minutes)
• Switching accuracy: + 5 minutes
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Brand Name | Legrand |
| Warranty | 1 Year |
| IP Rating | IP53 |
| Height | 161 |
| Width | 119.5 |
| Depth | 51 |
| Weight | 347.7 |
