Description

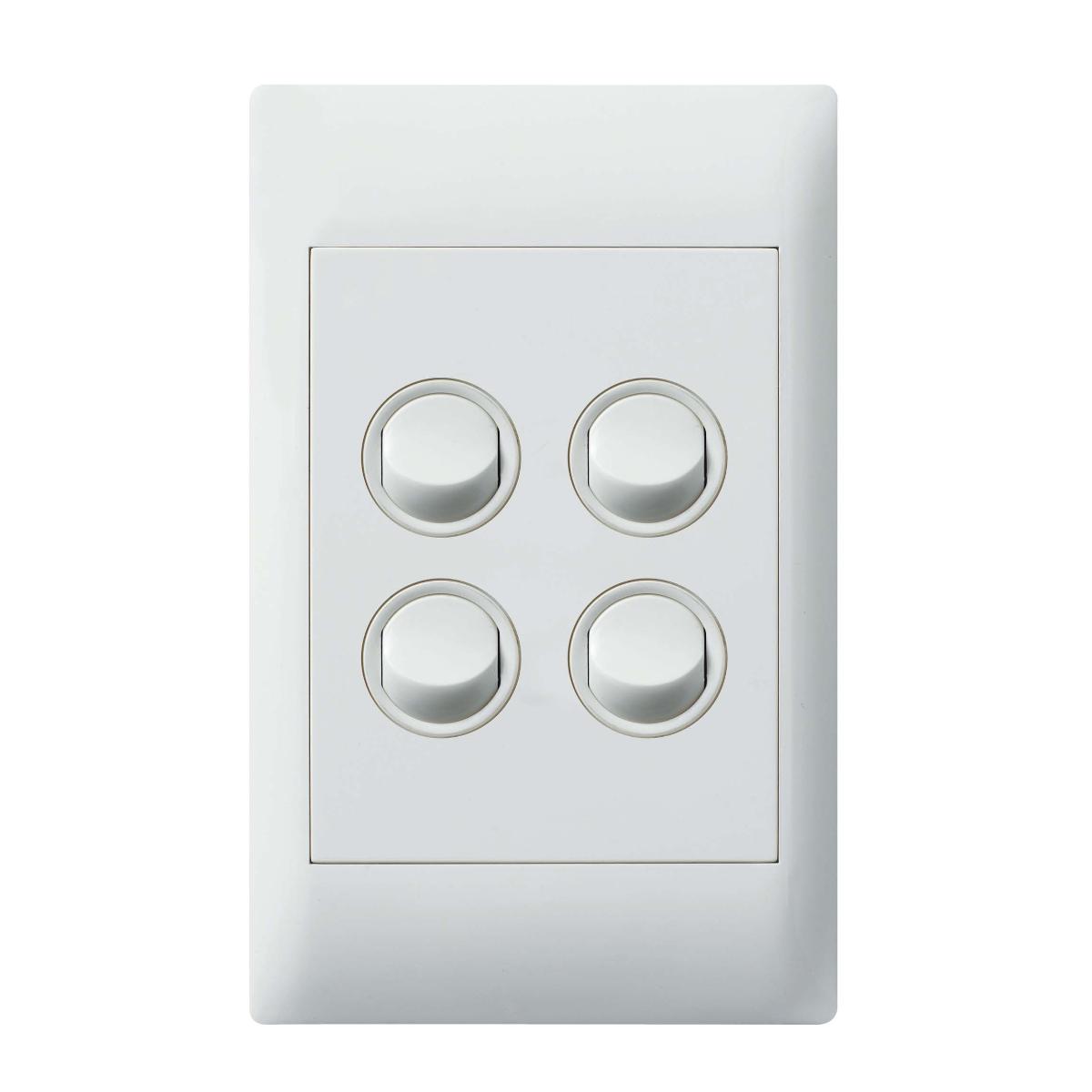

Legrand EC770/4WE, Excel Life - Common plate - Vertical rocker switch - Single Pole Double Throw 4 gang 16AX 240V a.c. white
Features:
• Fluoro rated up to 16AX
• More fixing options - 4 corners
• Oval 84mm fixing points - make it easier to straighten-up products at the last minute
• Paint path - lessens potential damage to walls by providing a small channel for paint ingress
• Uniform external surround - fits all switches and powerpoints in the Common Plate series
• Cut-out size: 96 x 56mm
• Plate dimensions: 118 x 74mm
• Plate thickness: 10mm
• Cleaning instructions: This product should only be cleaned with a damp cloth. Cleaning agents and solvents should not be used.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Finish/Color | Gloss |
| Poles | 1 Pole |
| Shape | Rectangular |
| Warranty | 1 Year |
| Switches | 4 Switch |
| Mount | Flush |
| Standard | AS/NZS 3133 |
| Material | Polycarbonate |
| Range | Excel Life |
| Weight | 110g |
| Depth | 10mm |
| Colour | White |
| Brand Name | Legrand |
| Item Name | Internal Switch |
| Gang | 4 Gang |
| Box Quantity | 10 |
| Length | 118mm |
| Voltage | 250V |
| Connection Type | Wired in |
| UNSPCS | 39122226 |
| Current | 16A |
| Finish | Gloss |
| Width | 74mm |
