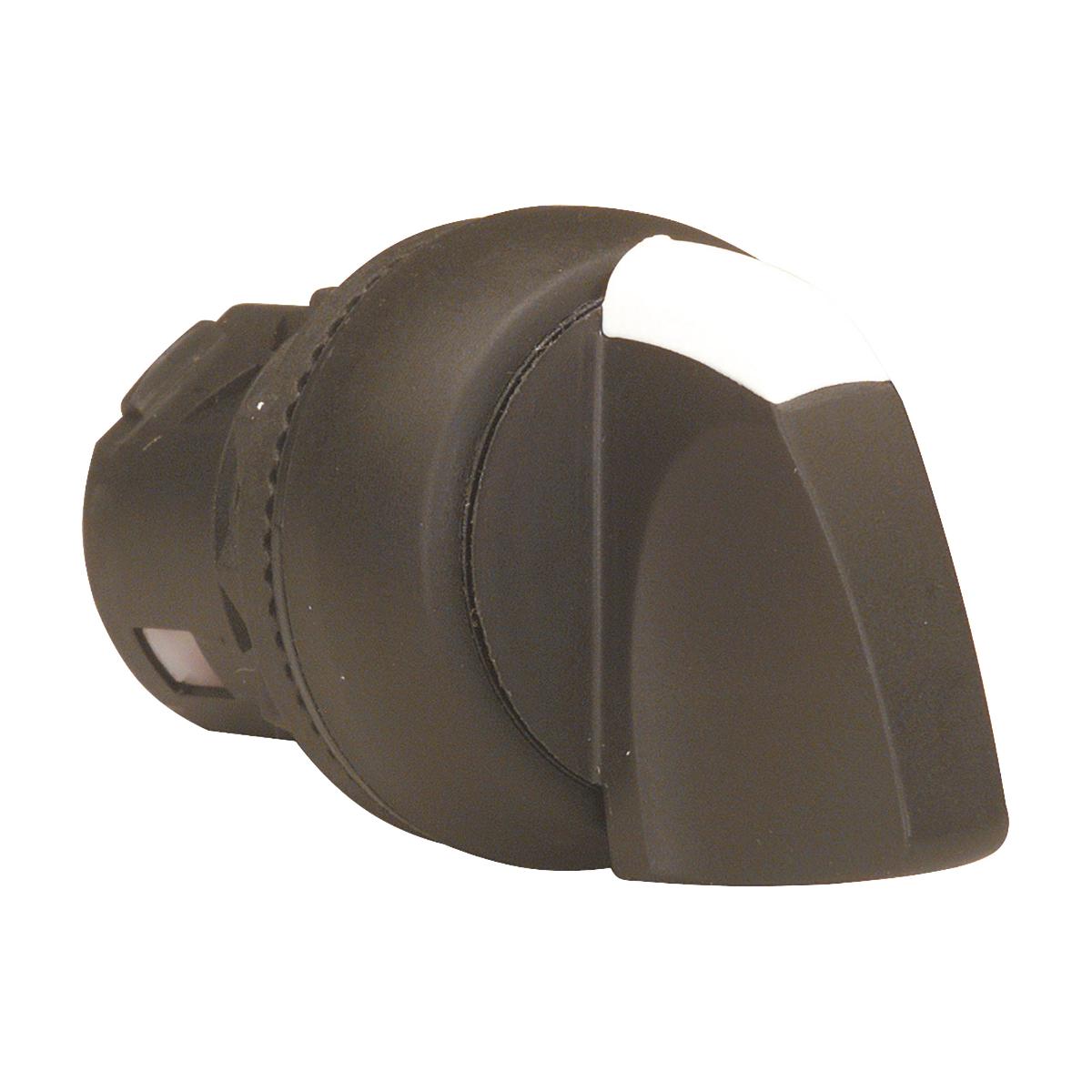

NHP D7PSM32 Sprecher and Schuh D7 Selector Switch 22.5mm Head Only Plastic STD BLK Knob 3 POS Maintained Switch
Code: NHPD7PSM32
Unit of measure:
EACH
Description
NHP D7PSM32 Sprecher and Schuh D7 Selector Switch 22.5mm Head Only Plastic STD BLK Knob 3 POS Maintained Switch
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 100g |
| Colour front ring | Other |
| Max. vibration acceleration | 10m/s² |
| Switching function latching | No |
| Standard | NEMA ICS-5, UL 508, EN 60947-1, EN 60947-5-1, EN 60947-5-5, EN 418 |
| Suitable for illumination | No |
| Colour | White |
| Supplier Code | D7PSM32 |
| UNSPCS | 39122217 |
| Degree of Protection | IP66/IP65 |
| Height opening | 28 mm |
| Material front ring | Plastic |
| Number of switch positions | 3 |
| Temperature Rating | -25 to 70 deg C |
| Max. vibration frequency - operational | 2000Hz |
| Spring-return | No |
| Mechanical life (service cycles) | 300000 cycles |
| Colour control element | Black |
| Type of control element | Short thumb-grip |
| Material | Plastic |
| Brand Name | NHP |
| Hole diameter | 22.5mm |
| Item Name | Rotary Switch |
| Type | Short Handle, 3 Position |
| Width opening | 29.8 mm |
| ETIM Class | Front element for selector switch |
| Degree of protection (NEMA) | Other |
| Operating temperature | -25-70°C |
