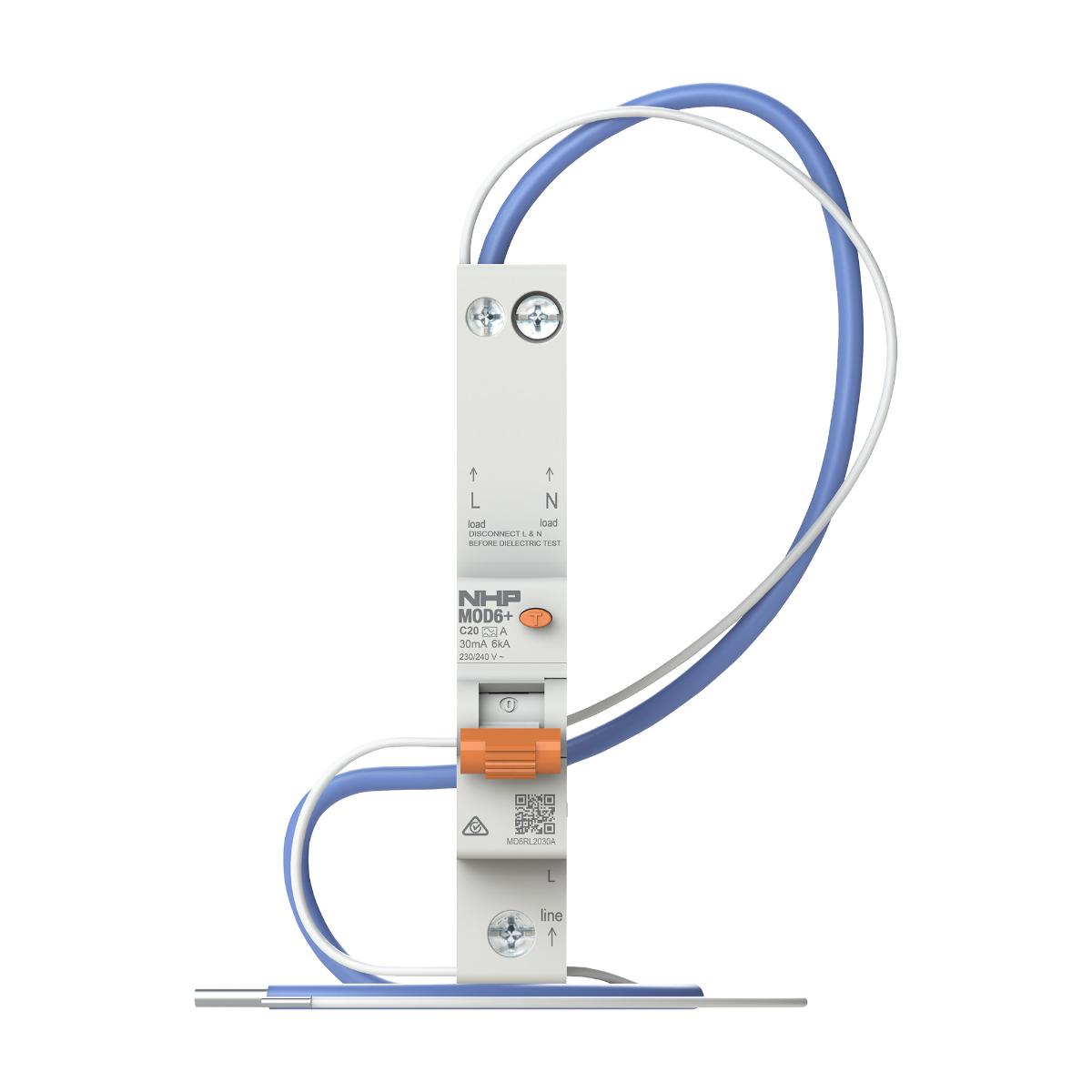

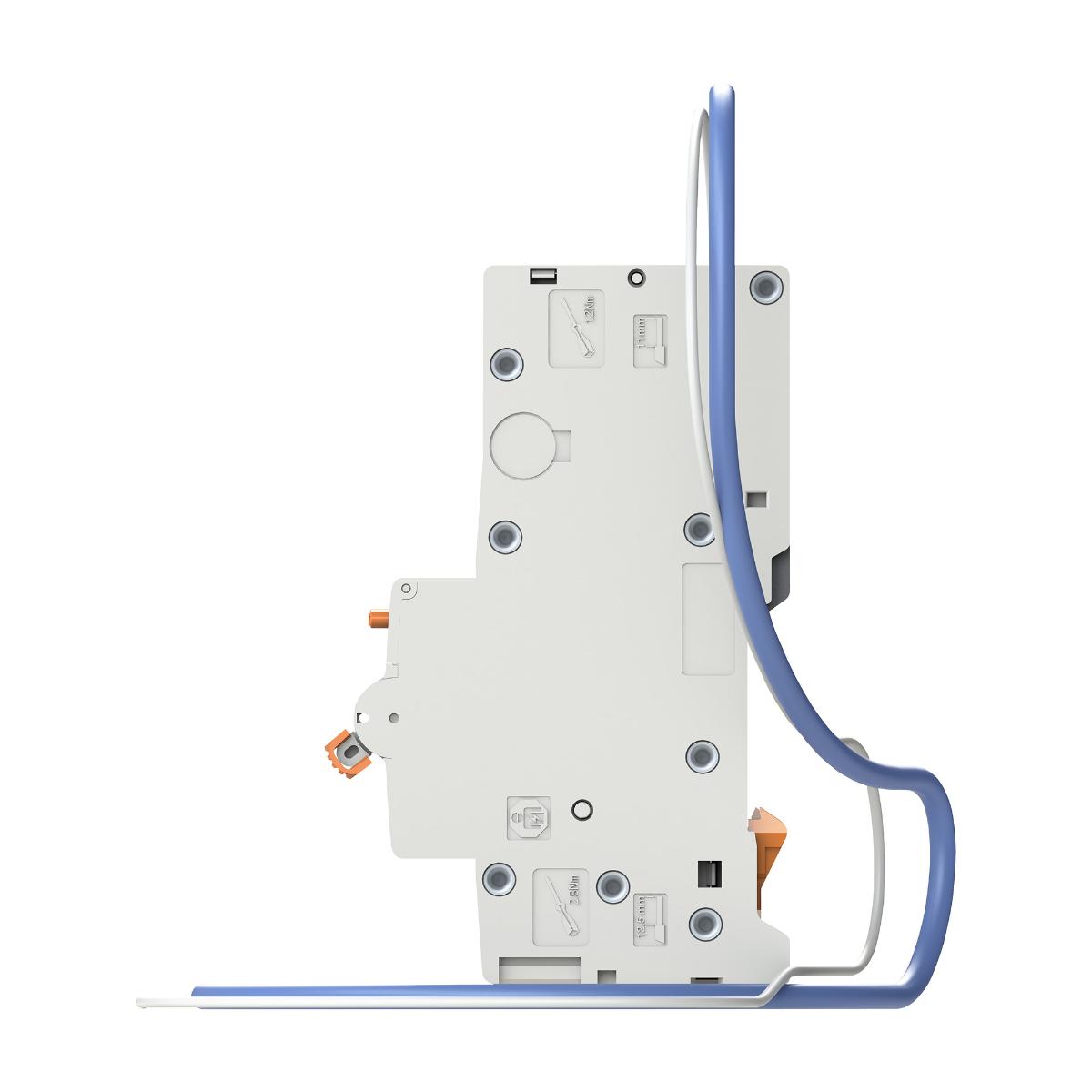

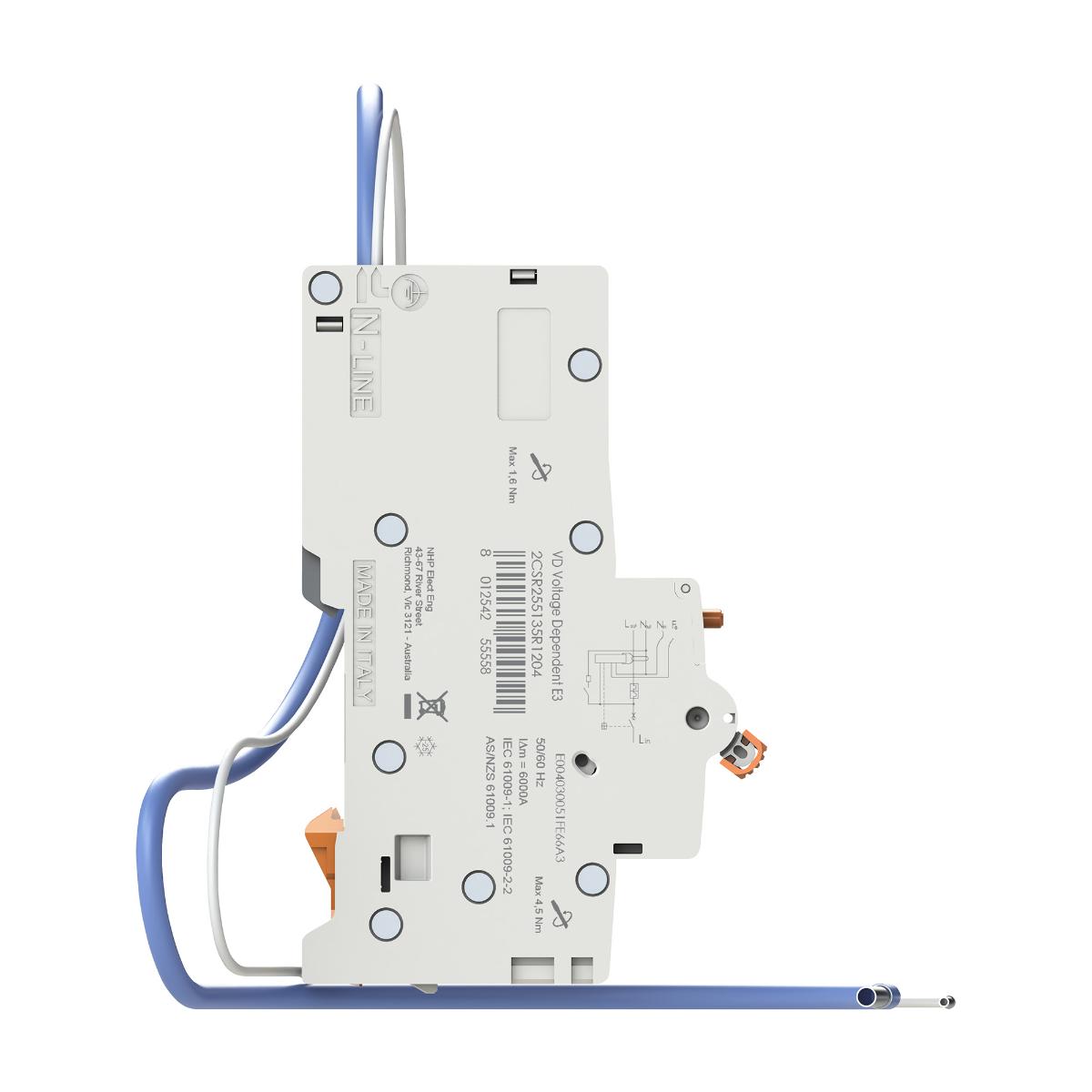

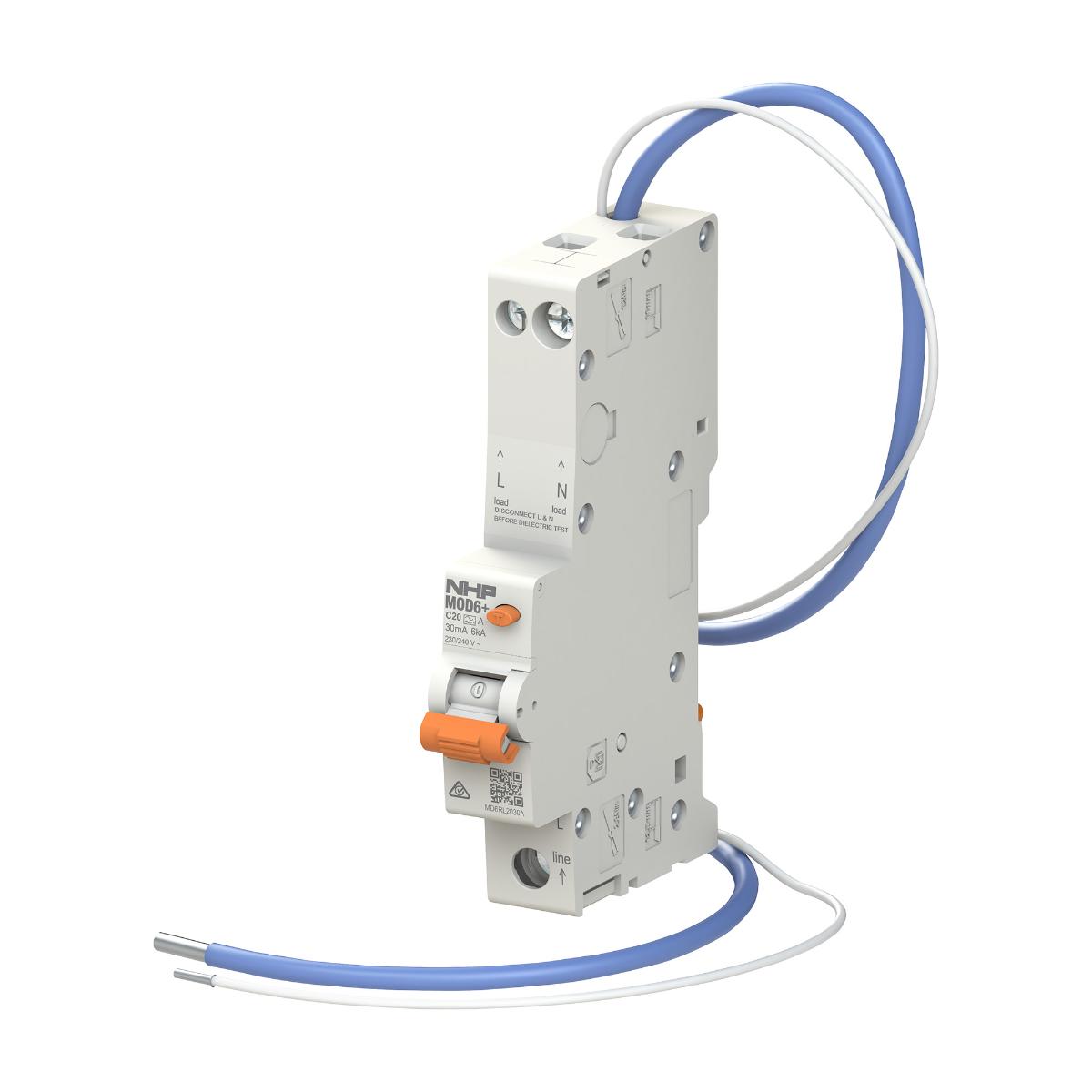

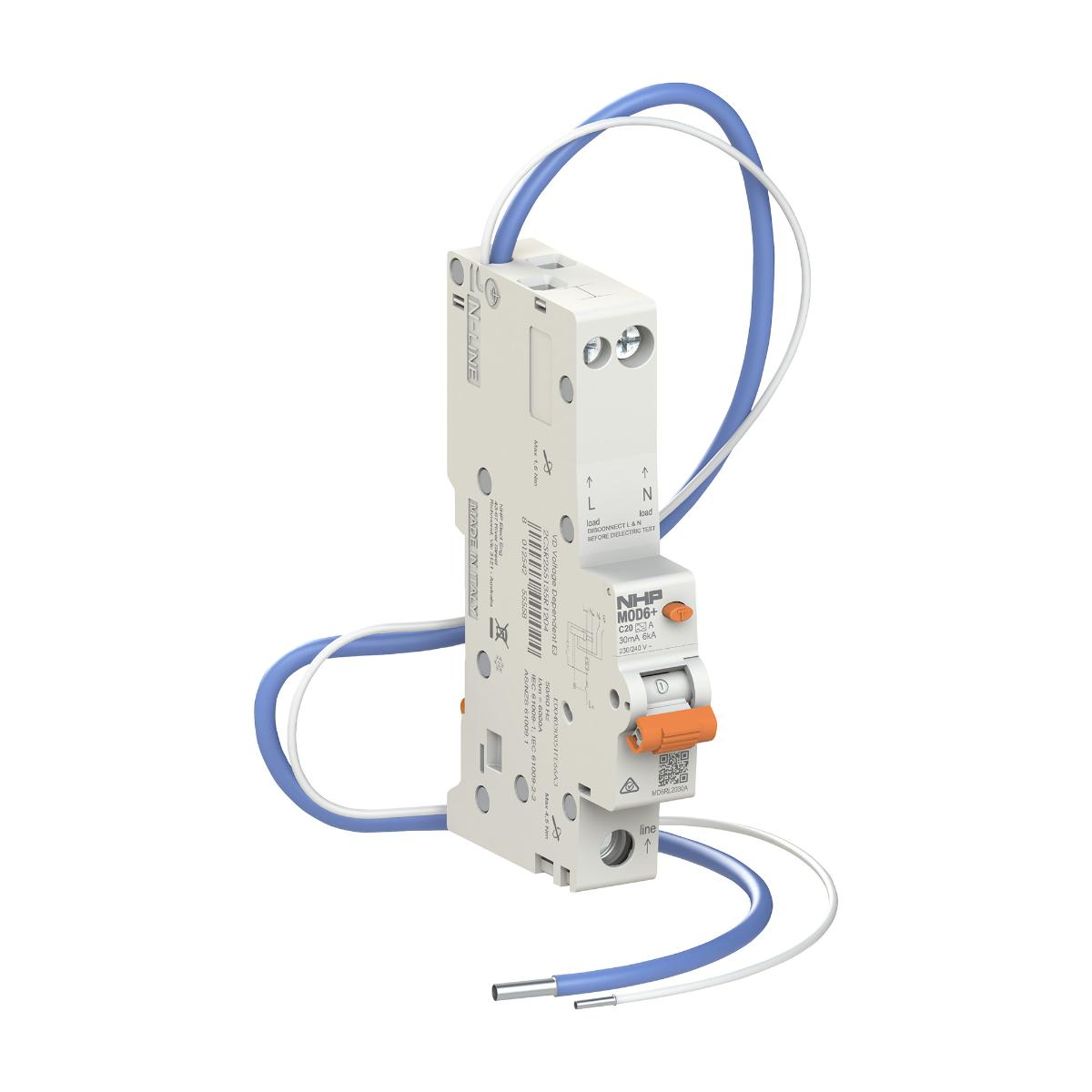

NHP MD6RL3230A MOD6+ RCBO 6kA 1 Pole and N 32A C Curve 30mA Type A (Longbody)
Code: NHPMD6RL3230A
Unit of measure:
EACH
Description
NHP MOD6+ MD6RL3230A MOD6+ RCBO 6kA 1P+N 32A C Curve 30mA TYPE A LONGBODY
MOD6+ RCBO 6kA 1P+N 32A C Curve 30mA TYPE A LONGBODY
Features:
• ETIM.Circuit breakers and fuses.Earth leakage circuit breaker (EC000905)
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 30g |
| Rated residual make/break capacity | 6000A |
| Number of protected poles | 1 Pole |
| Electrical life at Un- In (service cycles) | 10000 |
| Voltage type | AC |
| Isolator application | 1 |
| Leakage current type | A |
| Depth | 75.8mm |
| Rated current | 32A |
| Rated impulse withstand voltage Uimp | 4kV |
| Rated short-circuit breaking capacity according to EN 61009 | 6kA |
| Rated voltage | 240V |
| Min. service voltage | 184V |
| Height | 116mm |
| Width | 17.5mm |
| Rated insulation voltage Ui | 500V |
| Mechanical life (service cycles) | 20000 Cycles |
| Type of electric connection | Other |
| Max. vibration duration | 13min |
| Tripping time | 300 ms |
| Max. shock duration | 13ms |
| Max. operating voltage (Umax) | 264V |
| Pole Configuration | 2 Pole |
| Range | MOD6 |
| Brand Name | NHP |
| IP Rating | IP40 |
| Mounting method | DIN rail |
| Pollution degree | 2 |
| Frequency | 50/60 Hz |
| Number of poles (total) | 2 Pole |
| Operating temperature | -25 - 55 Degree |
| Rated leakage current | 30mA |
