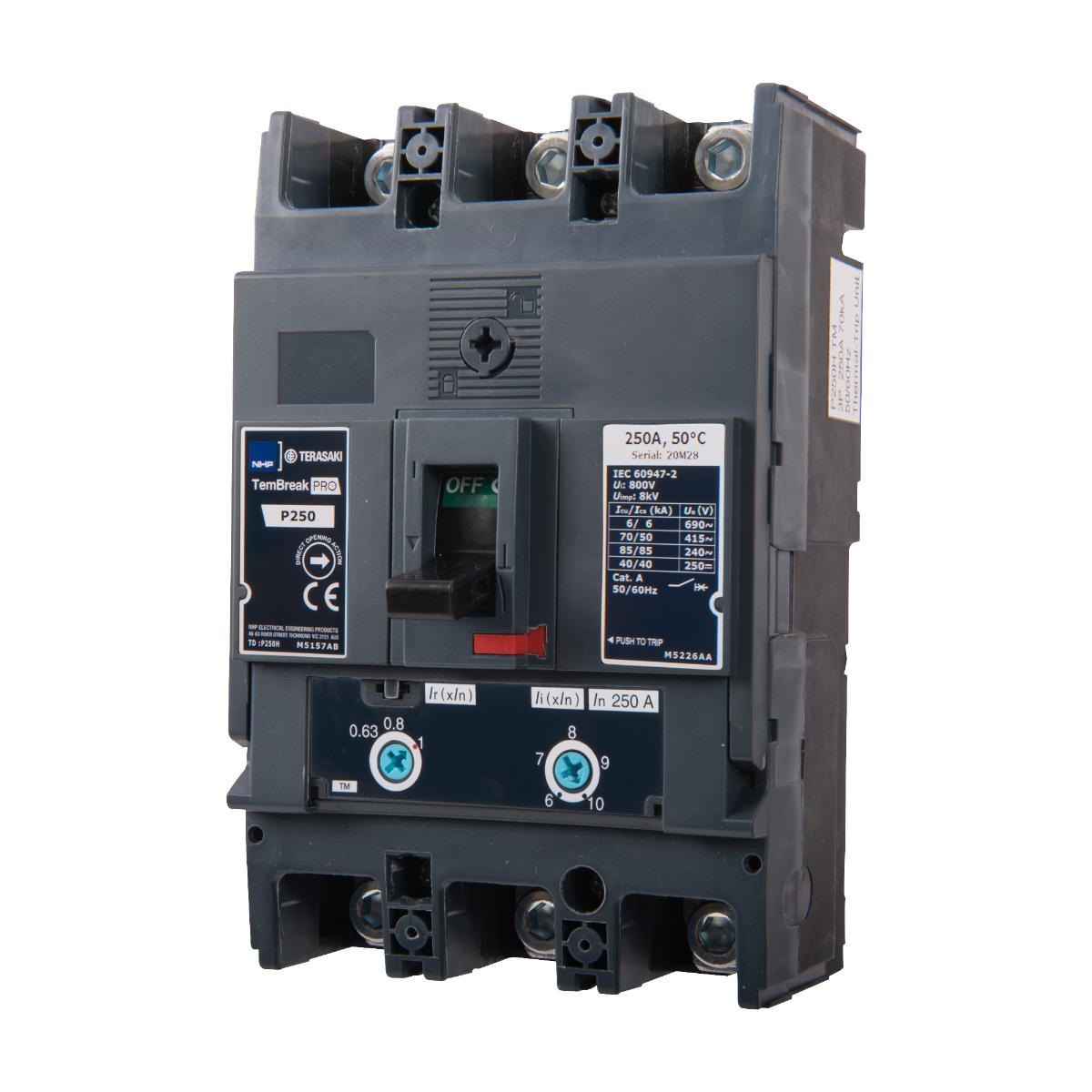

NHP P250N3250TM Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 250A Adj. Thermal Adj. Magnetic
Code: NHPP250N3250TM
Unit of measure:
EACH
Description
NHP P250N3250TM Terasaki TemBreak PRO MCCB 250 Frame 50kA 3P 250A Adj. Thermal Adj. Magnetic
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. altitude before derating | 2000m |
| Frame size rating | 250A |
| Max. vibration acceleration | 19m/s² |
| Storage temperature | -10-70°C |
| Electrical life at Un - In (service cycles) | 10000 cycles |
| Standard (EF009322) | AS/NZS IEC 60947.2 |
| Maximum operating temperature | 70°C |
| Allowable relative humidity | 0-85 % |
| Rated temperature | -5-70°C |
| Rated impulse withstand voltage Uimp | 8kV |
| Rated current In | 250A |
| AC power loss per pole at In | 16.9 W |
| Supplier Code | P250N3250TM |
| Height | 165mm |
| Built-in depth | 68mm |
| Width | 105mm |
| Position of connection for main current circuit | Front side |
| Type of electrical connection of main circuit | Screw connection |
| Rated insulation voltage Ui | 800V |
| Power loss | 50.7W |
| Max. vibration frequency - operational | 16.7Hz |
| Rated short circuit breaking capacity - Icu 690V AC | 6kA |
| Rated short circuit breaking capacity - Ics 690V AC | 6kA |
| Mechanical life (service cycles) | 30000 cycles |
| Rated surrounding temperature without derating | 50°C |
| Max. vibration duration | 12 min |
| Pole Configuration | 3 Pole |
| Max. rated operation voltage Ue AC | 690V |
| Weight | 1.5kg |
| Brand Name | NHP |
| Reverse connection of supply possible | Yes |
| Cable cross section (range) | 35-185mm² |
| Depth (toggle included) | 95.5mm |
| Instantaneous protection adjustment range | 1500-2500 A |
| Pole connection pitch | 35mm |
| ETIM Class | Power switching circuit breaker |
| Trip curve | Adj. thermal - adj. magnetic |
| Long time overload protection adjustment range | 160-250 A |
| Pollution degree | 3 |
| Rated frequency | 50-60 Hz |
| Suitable for isolation | Yes |
