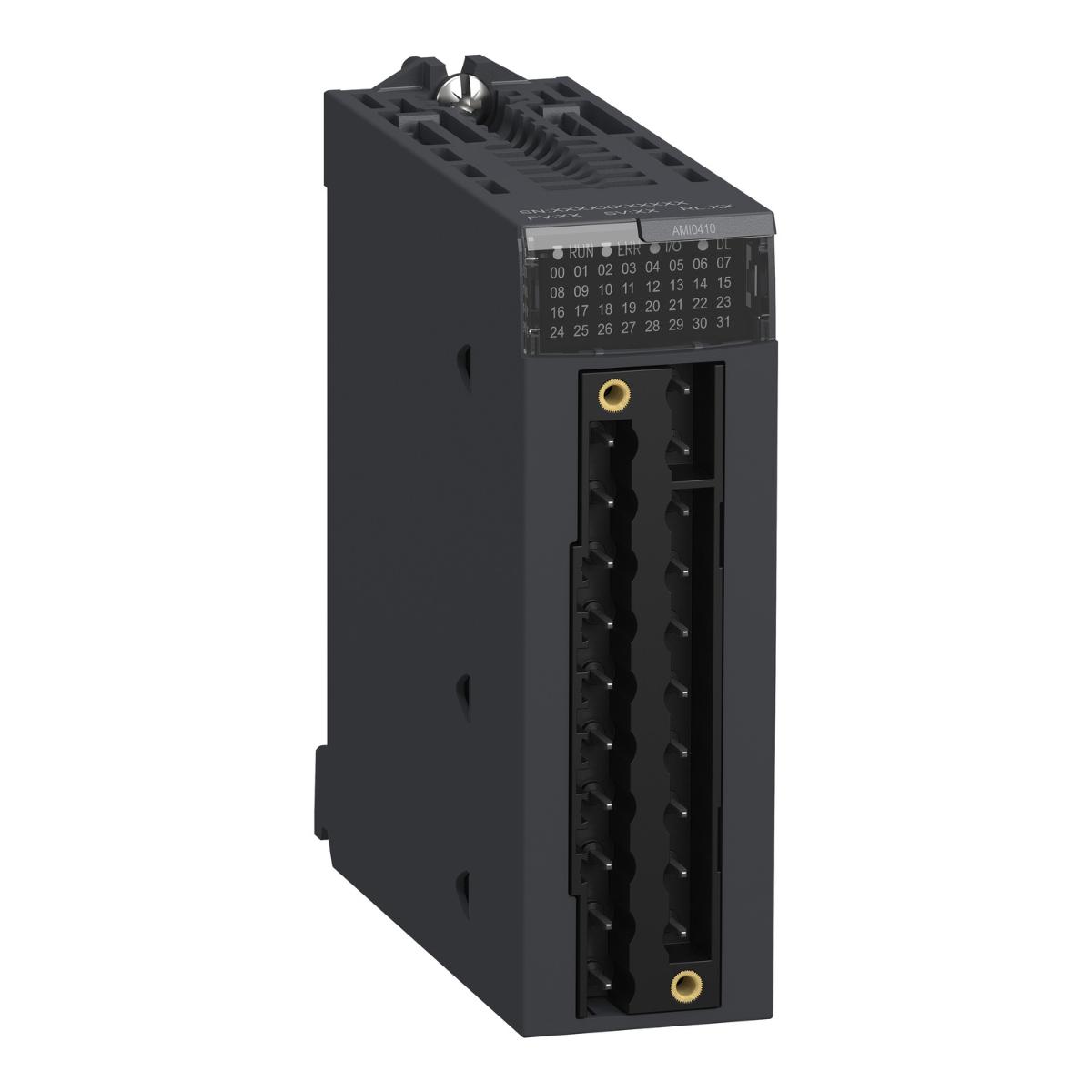

Schneider Electric BMXAMI0410 analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
This high level analog input module is part of the Modicon X80 modules. It has 4 isolated analog inputs (16 bits) and is used with sensors or transmitters. This module is connected via 20-way removable terminal block. It performs monitoring, measurement, and process control functions for continuous processes. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Features:
• Robustness and reliability
• Common safety
• IP20 protection for harshest environments
• Wide range of operating temperature from 0°C to 60°C
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Measurement resolution | 0.35 mV 0...5 V |
| Ambient air temperature for operation | 0-60 °C |
| Electrical connection | 20 ways 1 connector |
| Type of filter | first order digital filtering |
| Common mode rejection | 90 dB |
| Current consumption | 45 mA at 24 V DC |
| Analog/digital conversion | 24 bits |
| Directives | 2014/30/EU - electromagnetic compatibility |
| Supplier Code | BMXAMI0410 |
| MTBF reliability | 1200000 H |
| Ambient air temperature for storage | -40-85 °C |
| Digital value format | +/- 10000 by default |
| Measurement error | <= 0.3 % of full scale 0...20 mA 0...60 °C |
| Vibration resistance | 3 gn |
| Operating altitude | 2000...5000 m with derating factor |
| Isolation voltage | 1400 V DC between channels and ground |
| Status LED | 1 LED (red) ERR |
| Power consumption in W | 0.32 W 3.3 V DC typical |
| Input impedance | 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
| Input level | high level |
| Analogue input type | voltage 0...10 V |
| Shock resistance | 30 gn |
| Maximum conversion value | +/- 11.4 V 0...5 V |
| IP degree of protection | IP20 |
| Range | Modicon X80 |
| Permitted overload on inputs | +/- 30 V 0...10 V |
| Standards | CSA C22.2 No 61010-2-201 |
| Temperature drift | 15 ppm/°C 0...10 V |
| Product certifications | RCM |
| Brand Name | Schneider Electric |
| Analogue input number | 4 |
| Recalibration | internal |
| Minimum crosstalk attenuation | 80 dB |
| Nominal read cycle time | 5 ms for 4 channels |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Input output isolation | isolated |
| Net weight | 0.143 kg |
| Analogue input resolution | 16 bits |
| Product or component type | analog input module |
