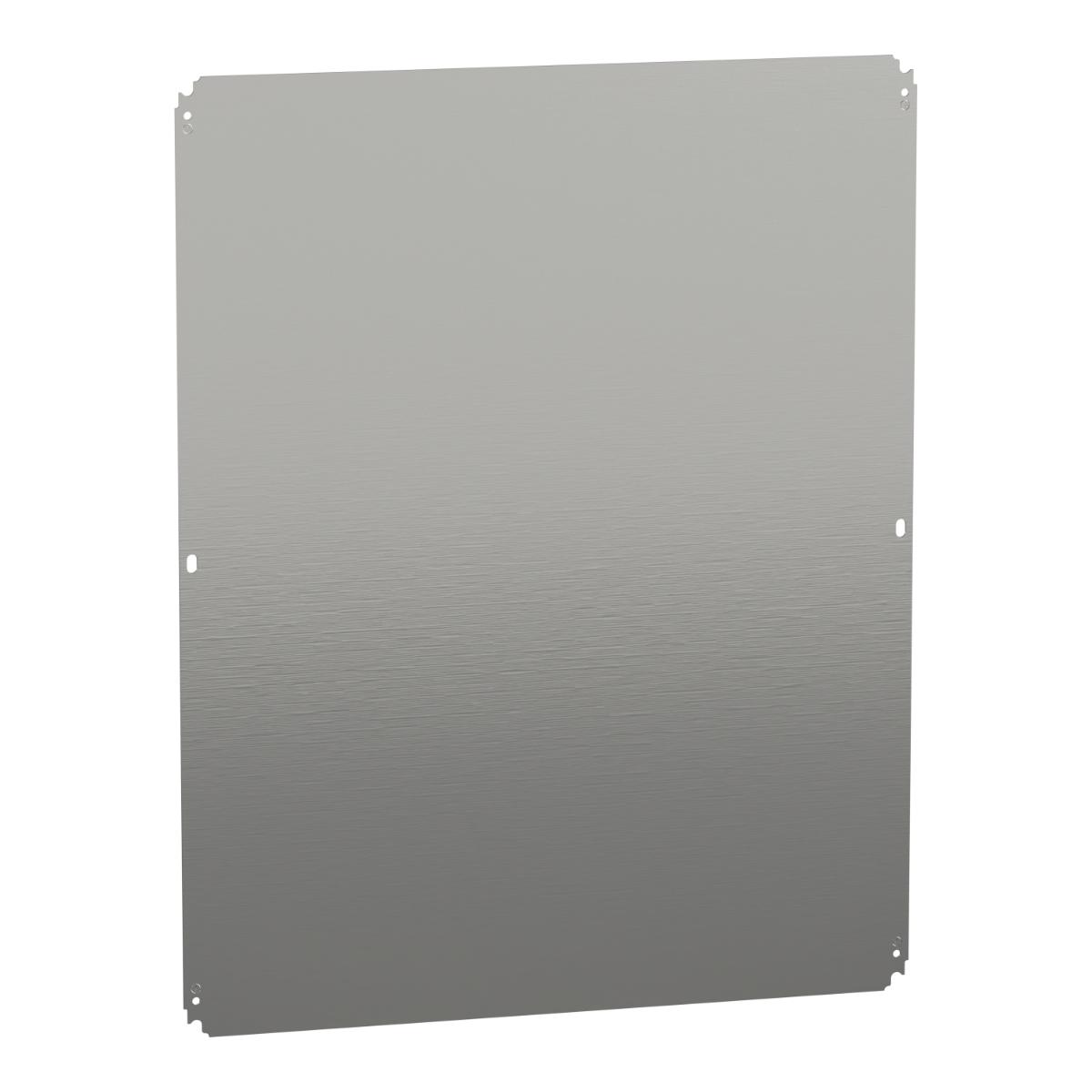

Schneider Electric NSYMM108 Plain mounting plate H1000xW800mm Galvanised sheet steel Reversible dimension
Code: SCHNSYMM108
Unit of measure:
EACH
Description
Schneider Electric NSYMM108 Plain mounting plate H1000xW800mm Galvanised sheet steel Reversible dimension
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1000 x W is800 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Permanent permissible load | 150 kg |
| Fixing mode | by fixing element |
| Device application | multi-purpose |
| Material | galvanised steel |
| Quantity per set | set of 1 |
| Range | PanelSeT |
| Mounting plate description | plain |
| Variant particularity | installation in enclosures with inverted dimensions |
| Accessory / separate part category | mounting accessory |
| Thickness | 2.5mm |
| Brand Name | Schneider Electric |
| Range compatibility | PanelSeT PanelSeT S3D |
| Enclosure nominal dimensions | - H: 800mm W: 1000mm |
| Supplier Code | NSYMM108 |
| Mounting location | step slide |
| Net weight | 13.96 kg |
| Height | 950mm |
| Width | 750mm |
| Product or component type | mounting plate |
