Schneider Electric NSYPLS1827G PLS box, Thalassa, polyester rear, Transparent PC cover IP66 18x27x18cm, Grey

Code: SCHNSYPLS1827G

Brand: Generic Brand

Unit of measure: EACH

Description

Schneider Electric NSYPLS1827G PLS box, Thalassa, polyester rear, Transparent PC cover IP66 18x27x18cm, Grey

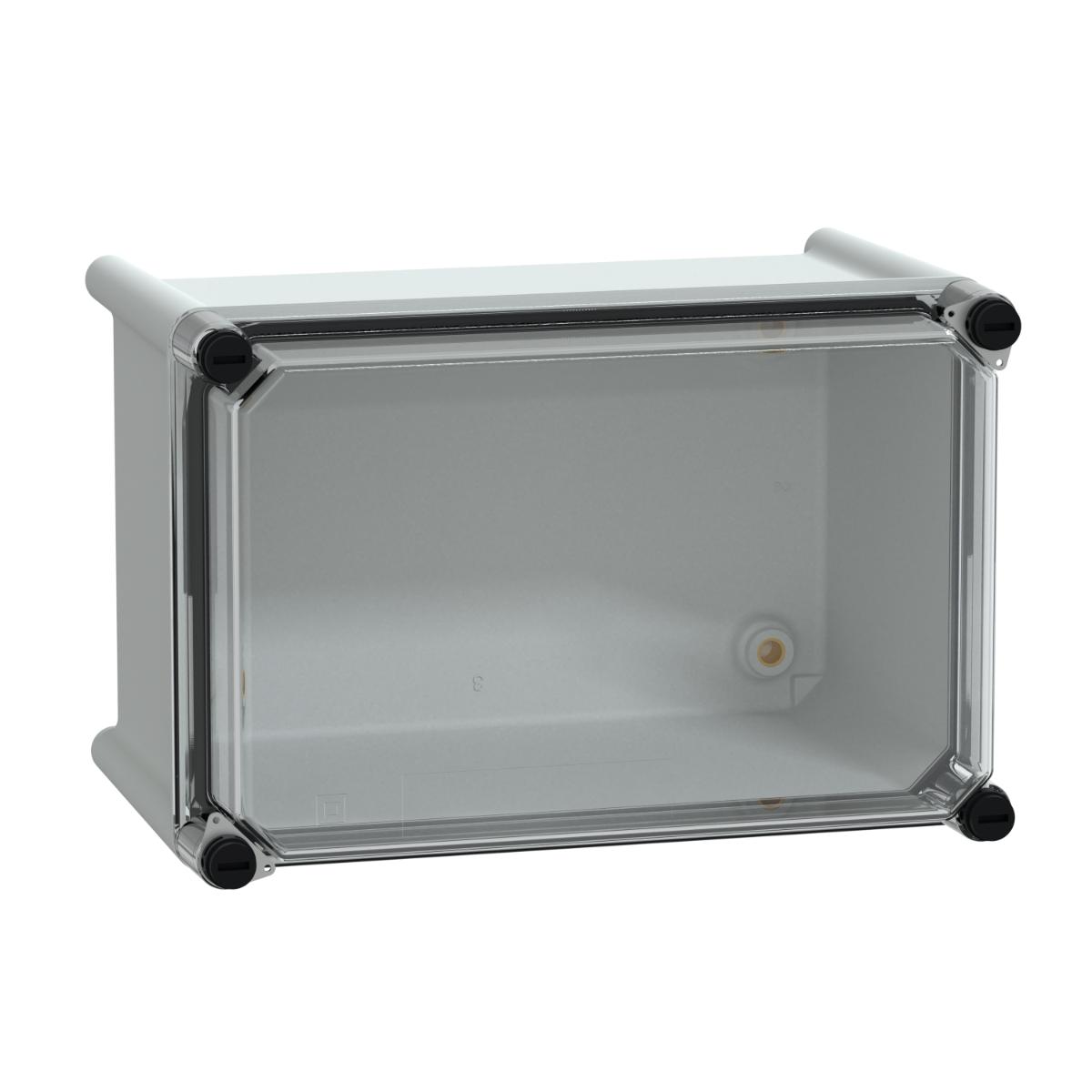

Thalassa PLS box polyester rear with transparent PC cover. 180 x 270 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Enclosure mounting	wall mounted
Colour	Grey
Fire resistance	960 °C conforming to IEC 62208
Supplier Code	NSYPLS1827G
Ambient air temperature for storage	-30-70 °C
YoutubeVideo1	https://www.youtube.com/embed/iA96NcxQL3M?si=OCajg_5PTqP_bFzC
360Image	https://visuals.se.com/NSYPLS1827G_360VH_ODA20/20210215T1004/360
Electrical insulation class	class II
Lock type	slot screw
Device short name	PLS
Enclosure nominal width	270mm
Device application	multi-purpose
Device composition	locking screws
Material	rear: polyester reinforced with fibreglass
Removable parts	cover locking screw
IP degree of protection	IP66 conforming to IEC 60529
Range	Thalassa
Type of front cover	low transparent cover
Standards	NEMA 4X
Product certifications	UL
Brand Name	Schneider Electric
Body type	one piece moulded
Enclosure nominal depth	180mm
Product name	Thalassa PLS
Enclosure nominal height	180mm
IK degree of protection	IK09 conforming to IEC 62262
Product or component type	insulating modular box
