Description

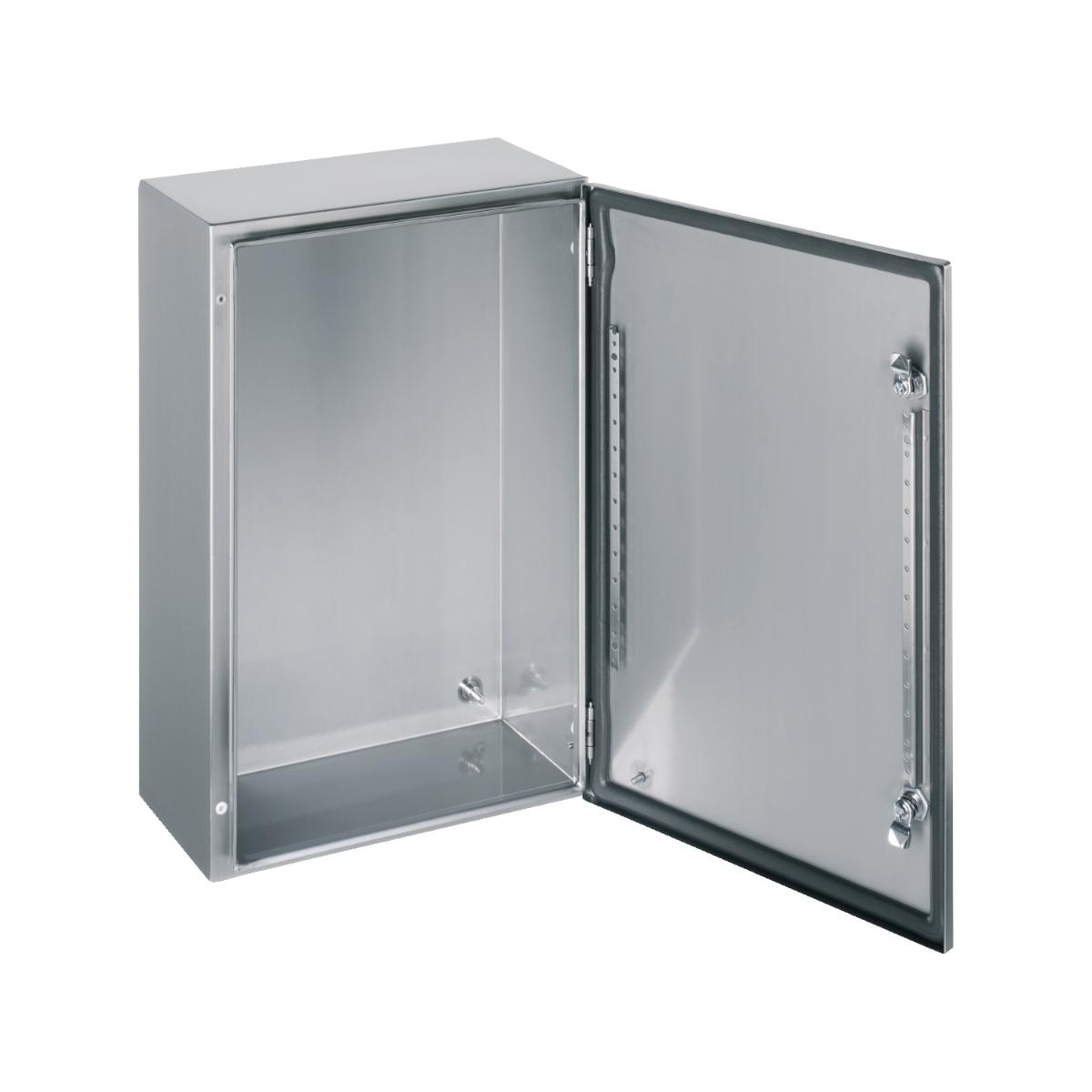

Schneider Electric NSYS3X3315H Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 300x300x150mm, IP66
Spacial S3X is a stainless steel 316L wall-mounting enclosure, perfect for multi-purpose applications and resistance to corrosion It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width and depth of 300mm, 300mm and 150mm respectively The enclosure is made with Scotch-Brite® brushed surface finish The enclosure consists of a body, a plain door and one lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a 3mm double-bar lock insert The door can be removed for maintenance purposes The net weight of the enclosure is 4,038kg It is compliant with IEC 62208 standards and is certified by CAN/CSA 22 and UL 508 type A
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mounting plate description | without mounting plate |
| Door opening side | reversible (120 °) |
| Type of gland plate | without gland plate |
| Supplier Code | NSYS3X3315H |
| Environmental characteristic | specific hygiene |
| Lock type | 3mm double-bar lock |
| Enclosure nominal width | 300mm |
| Device application | multi-purpose |
| Device composition | 1 lock: door |
| Door type | plain |
| Material | hinge: stainless steel |
| Removable parts | door by hinges |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Range | Spacial |
| Accessibility for operation | front |
| Standards | IEC 62208 |
| Product certifications | UL 508 type A |
| Brand Name | Schneider Electric |
| Surface finish | lock: chromium plated |
| Body type | single piece body- cross-shaped structure |
| Installation accessory type | wall-mounting |
| Enclosure nominal depth | 150mm |
| Product name | Spacial S3X |
| Enclosure nominal height | 300mm |
| Net weight | 4.038 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Number of doors | front face: 1 door(s) |
| Product or component type | compact enclosure |
