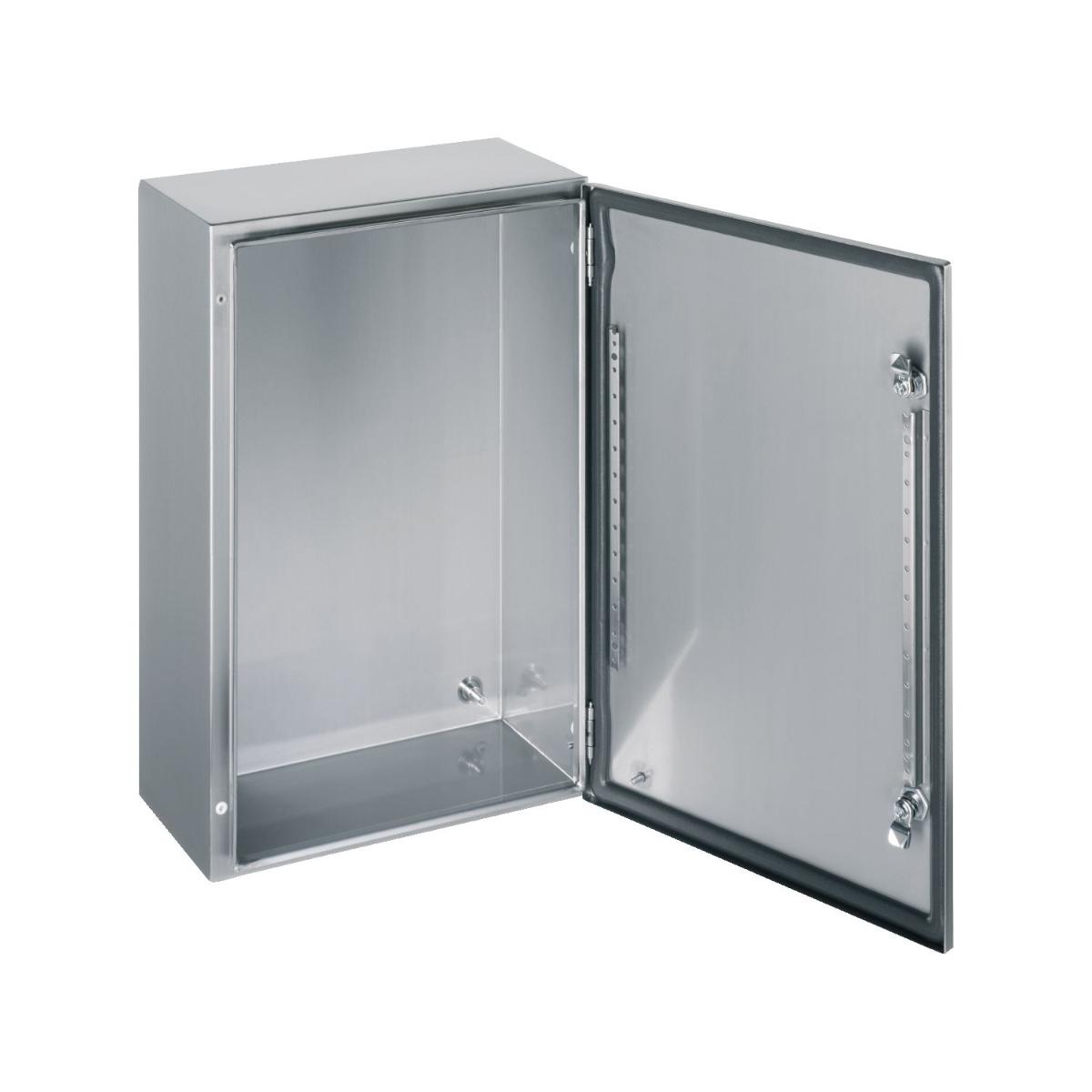

Schneider Electric NSYS3X6420H Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 600x400x200mm, IP66
Code: SCHNSYS3X6420H
Unit of measure:
EACH
Description
Schneider Electric Infraplus Small Office SPACIAL S3X stainless 316L, Scotch Brite® finish, H600xW400xD200 mm.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| IK Rating | IK10 |
| Standard | IEC 62208 |
| Mounting plate description | without mounting plate |
| Depth | 200mm |
| Door opening side | reversible (120 °) |
| Type of gland plate | without gland plate |
| Supplier Code | NSYS3X6420H |
| Environmental characteristic | specific hygiene |
| Height | 600mm |
| Finish | Chrome |
| Width | 400mm |
| Finish/Color | Chrome |
| Lock type | 2 points lock- 3mm double-bar |
| Enclosure nominal width | 400mm |
| Device application | multi-purpose |
| Device composition | 2 perforated vertical profile drilled: door |
| Door type | plain |
| Removable parts | door by hinges |
| Material | body and door: stainless steel 316L |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Range | Spacial |
| Accessibility for operation | front |
| Standards | IEC 62208 |
| Weight | 9.52kg |
| Product certifications | CAN/CSA 22 |
| Brand Name | Schneider Electric |
| Surface finish | lock: chromium plated |
| Item Name | Enclosure |
| Body type | gutter shaped front rail |
| Installation accessory type | wall-mounting |
| Enclosure nominal depth | 200mm |
| Product name | Spacial S3X |
| IP Rating | IP66 |
| Enclosure nominal height | 600mm |
| Net weight | 9.52 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Number of doors | front face: 1 door(s) |
| Product or component type | compact enclosure |
