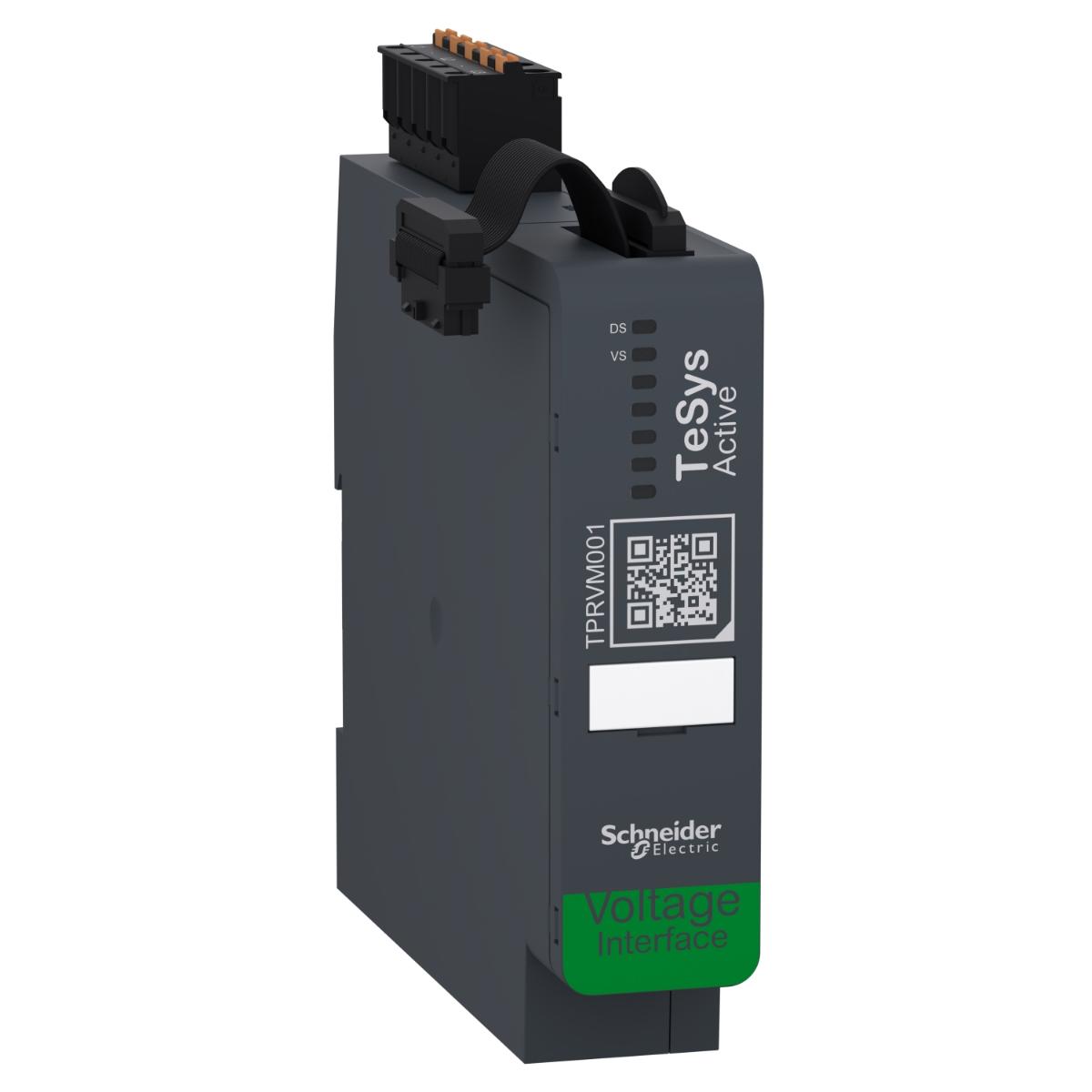

Schneider Electric TPRVM001 Voltage interface module, TeSys island, 690VAC 47-63 Hz, Isolated switching input for safe stop

Code: SCHTPRVM001

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric TPRVM001 Voltage interface module, TeSys island, 690VAC 47-63 Hz, Isolated switching input for safe stop

TeSys island voltage interface module, 100-690V / 47-63Hz. Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Relative humidity	5-95 %
[Us] rated supply voltage	24 V DC supplied by the bus coupler
Electromagnetic compatibility	line voltage circuit: surge immunity test (common mode)- level 3- 2 kV- conforming to EN/IEC 61000-4-5
Depth	114mm
Ambient air temperature for operation	-10-60 °C
Fire resistance	960 °C conforming to UL 94
Mounting mode	horizontal and vertical (35mm symmetrical rail)
Current consumption	2 mA
Function of module	identification of dip and swell events level and duration
Supplier Code	TPRVM001
Ambient air temperature for storage	-25-70 °C
Height	118mm
Power dissipation in W	0.5 W maximum
Width	25mm
YoutubeVideo1	https://www.youtube.com/embed/gj6wLOSXVLk?si=8QxgtV7sB9XQPTQz
Vibration resistance	1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Operating altitude	0...2000 m without derating
360Image	https://visuals.se.com/TPRVM001_360VH_ODA19/20200311T0941/360
Device short name	TPRVM
Shock resistance	15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Product compatibility	TPRBC bus coupler
[Ue] rated operational voltage	690 V AC 47...63 Hz
[Ui] rated insulation voltage	690 V conforming to IEC 61010-1
IP degree of protection	IP20
Range	TeSys
Overvoltage category	III
Standards	UL 61010-2-201
Product certifications	EAC (pending)
Brand Name	Schneider Electric
Device presentation	reporting of the voltage to the bus coupler to enable power & energy monitoring
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 61010-1
Product name	TeSys island
Protective treatment	TC
Local signalling	1 LED (green/red) for VS (voltage status)
Pollution degree	2
Metering type	phase frequency 47...63 Hz
Net weight	0.159 kg
Measurement accuracy	frequency: +/- 1 Hz-
Product or component type	voltage interface module
Connections - terminals	measuring input: removable spring terminal block 3 cable(s) 0.25-2.5mm² (AWG 22...AWG 14) flexible with cable end
