OUTPUT SINUS FILTER 95A ATV600/ATV950 | Control & Indication | Industrial | All Categories

Schneider Electric VW3A5405 output sinus filter, Altivar, 95A, for variable speed drive

Code: SCHVW3A5405

Brand: Schneider Electric

Unit of measure: EACH

Description

Schneider Electric VW3A5405 output sinus filter, Altivar, 95A, for variable speed drive

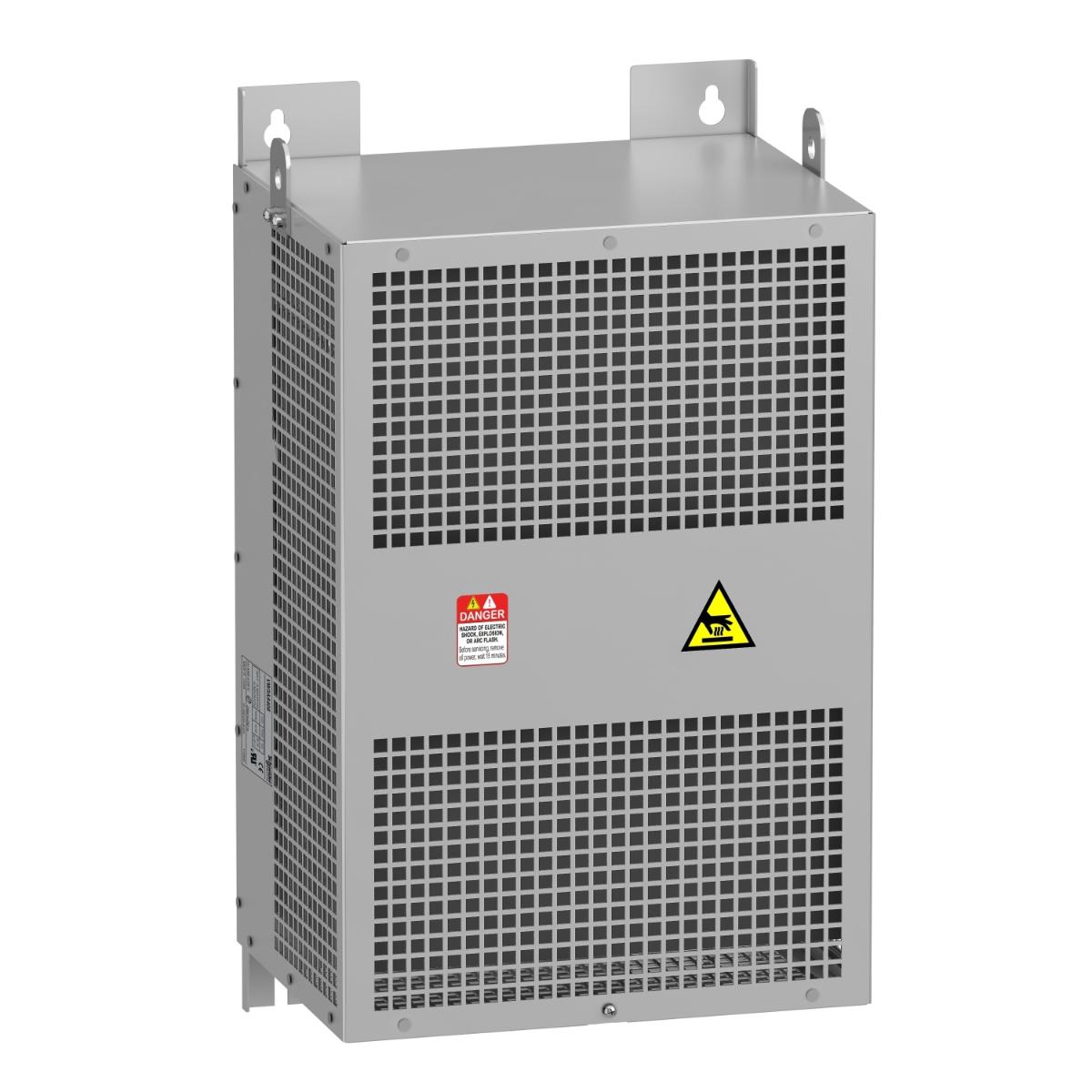

This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 95A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 60kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.

Features:
• For motors connected in parallel and submersible pumps sensitive to dv/dt applications
• Adapted for intermediate transformer between the drive and the motor needs
• IP20

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Relative humidity	5-95 % without condensation
Product specific application	output filter
Permissible voltage	480 V AC
[In] rated current	95 A
Ambient air temperature for operation	-15-50 °C (without current derating)
Depth	285mm
Electrical connection	terminal block- connection capacity: 50mm² / AWG 1
Switching frequency	4...8 kHz
Supplier Code	VW3A5405
Environmental characteristic	chemical pollution resistance class 3C3 conforming to IEC 60721-3-3
Ambient air temperature for storage	-40-70 °C
Maximum voltage drop at rated load	8 %
Height	760mm
Width	380mm
Max current	1.20 x nominal current (duration = 60 s)
Operating altitude	1000...4000 m with current derating 1 % per 100 m
Thermal losses	290 W at 4 kHz
Maximum output frequency	100 Hz
Product compatibility	variable speed drive ATV630 wall mount- motor: 30 kW- 380...480 V
Mechanical robustness	vibrations class 3M4 conforming to IEC 60721-3-3
Maximum motor cable length	500 m shielded cable
IP degree of protection	IP21 (with kit VW3A53904)
Brand Name	Schneider Electric
Range compatibility	Altivar Process ATV900
Pollution degree	3 conforming to IEC 61800-5-1
Net weight	60 kg
Product or component type	sinus filter
