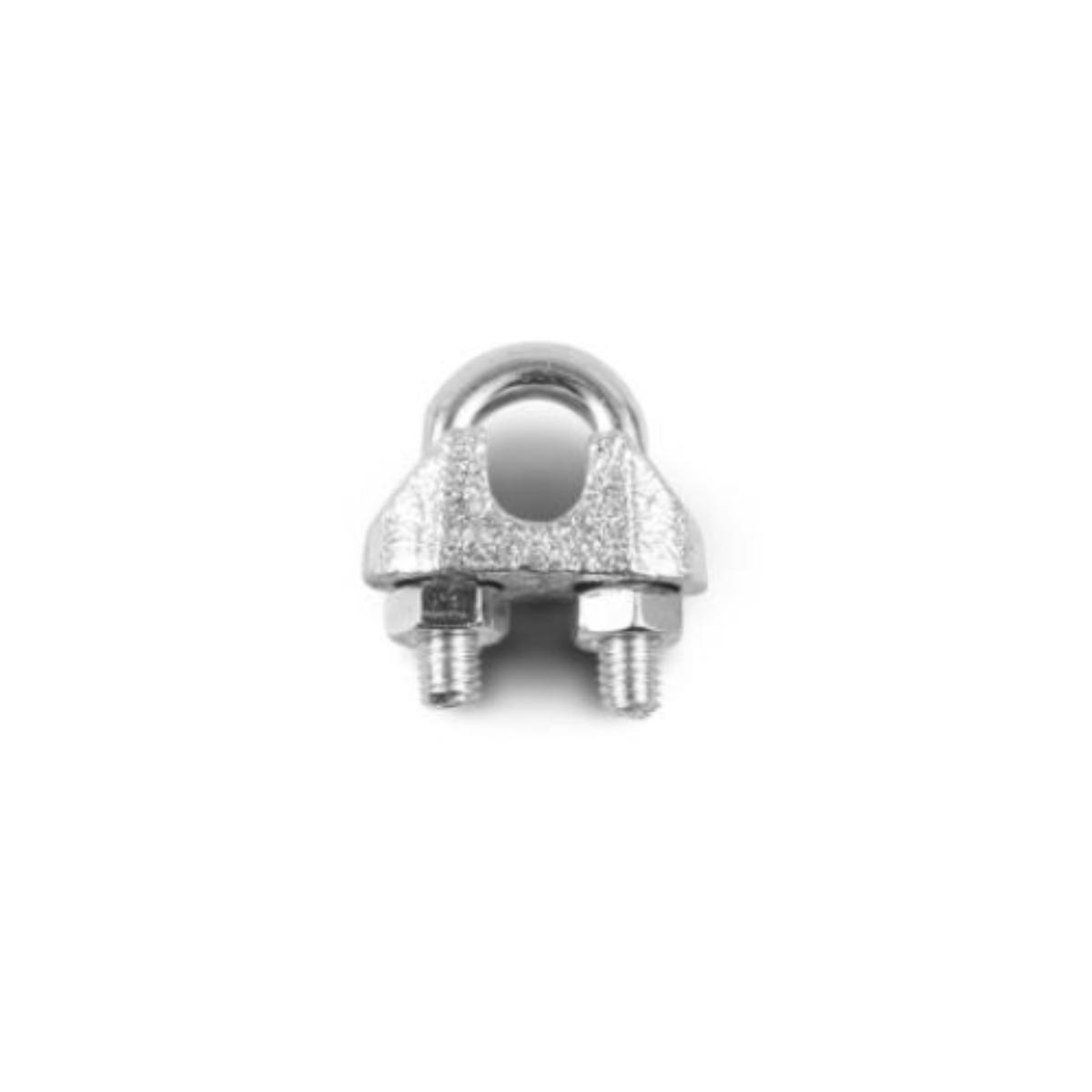

Wattmaster WRG5 Wire Rope Grip U-Bolt, Galvanised zinc coated M5 Thread
Code: WATWRG5
Unit of measure:
EACH
Description
Wattmaster WRG5 Wire Rope Grip U-Bolt, Galvanised zinc coated M5 Thread
Wire Rope Grip U-Bolt, Galvanised zinc coated Used for gripping the ends of catenary wire together, M5 Thread
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Finish/Color | Galvanized Zinc |
| Category | Wire Rope Grip |
| Size | 5mm |
| Material | Zinc Coated Galvanised Steel |
| Suitable for | Stranded and Solid Catenary Wire |
| Brand Name | Wattmaster |
| Item Name | Wire Rope Grip |
| EAN/UPC | 2000000045986 |
| UOM | Metric |
| Rope Diameter | 5 mm |
| Height | 26mm |
| Coating | Galvanised Zinc |
| barcode | 9328587025874 |
| Width | 27 mm |
| Bracket to U Bolt Height | 20 mm |
| Finish | Galvanized Zinc |
| Diameter | M5 (Thread) |
| Nut Width | 12 mm |
