MCB MAX9 3P 25A 6KA C CURVE 3MODULE
MCB MAX9 3P 25A 6KA C CURVE 3MODULE
image/svg+xml
Clipsal
CLIMX9MC325

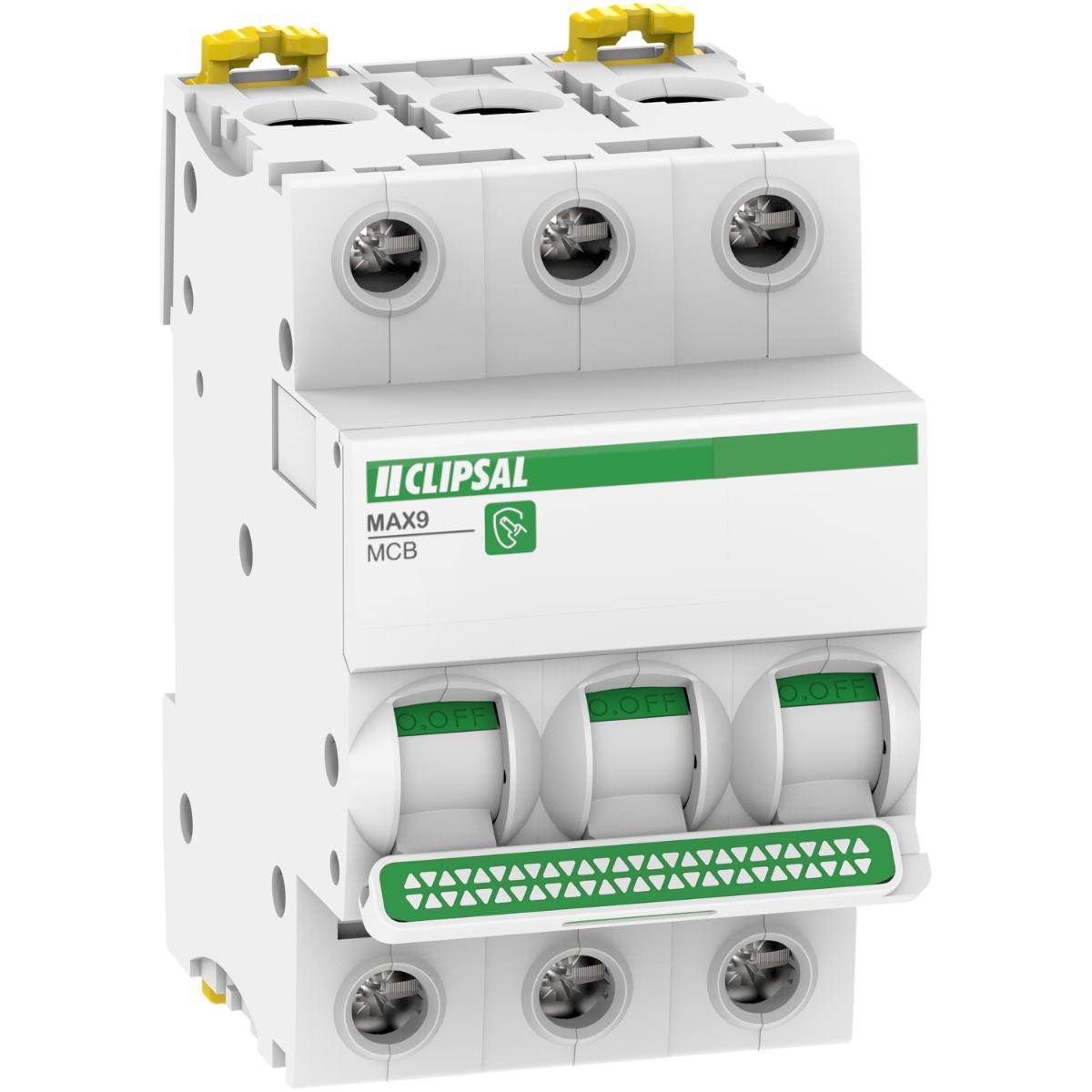

Clipsal MX9MC325 Max9 Series Miniature Circuit Breaker, MCB, 3 Pole, 25A, 415V, C Curve, 6KA, Din Rail Mount, 3 Module
CLIMX9MC325 Data Sheet View Document (0.11 Mb)
Show More

Clipsal MX9MC325 Max9 Series Miniature Circuit Breaker, MCB, 3 Pole, 25A, 415V, C Curve, 6KA, Din Rail Mount, 3 Module

This MAX9 product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected pole and 25A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 415VAC conforming to AS/NZS 60898 standard. This product is compliant with AS/NZS 60898 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The MAX9 is targeted to residential for individual and collective buildings. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 75mm. According to AS/NZS 60898 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25-70 °C. The storage temperature is -40-85 °C.
