Hager SF463 Change Over Switch, 4 Pole, 63A, 415V, 3 Position, Centre Off, Din Rail Mount, 8 Module
Code: HAGSF463
Unit of measure:
EACH
Description
Hager SF463 Change Over Switch, 4 Pole, 63A, 415V, 3 Position, Centre Off, Din Rail Mount, 8 Module
Our range of 2 Way / Centre-Off changeover switches from 25A to 63A 1P, 2P and 4P manual operated. Their compact design and modular format allows standard DIN rail mount and space saving in the electrical switchboard.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 4 Pole |
| Mount | Din Rail |
| Pole Configuration | 4 Pole |
| Material | Metal and Plastic |
| Depth | 72mm |
| Weight | 0.68kg |
| Colour | Grey |
| Brand Name | Hager |
| Item Name | Changeover Switch |
| Number of Modules | 8 Modules |
| Box Quantity | 1 |
| Voltage | 400V |
| Frequency | 50 - 60Hz |
| Height | 90mm |
| Current | 63A |
| Width | 143mm |
Have you considered?
Frequently bought together with

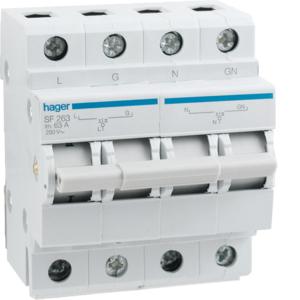

Hager SF263 Change Over Switch, 2 Pole, 63A, 415V, 3 Position, Centre Off, Din Rail Mount, 4 Module
Code: HAGSF263
Unit of measure:
EACH
Hager SFT225 Change Over Switch, 2 Pole, 25A, 415V, 3 Position, Centre Off, Din Rail Mount, 2 Module
Code: HAGSFT225
Unit of measure:
EACH

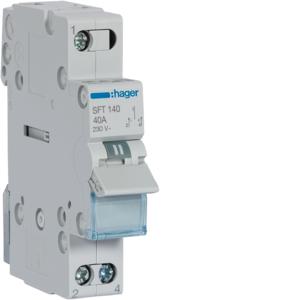

Hager SFT140 Change Over Switch, 1 Pole, 40A, 240V, 3 Position, Centre Off, Din Rail Mount, 1 Module
Code: HAGSFT140
Unit of measure:
EACH
Hager SFT125 Change Over Switch, 1 Pole, 25A, 240V, 3 Position, Centre Off, Din Rail Mount, 1 Module
Code: HAGSFT125
Unit of measure:
EACH

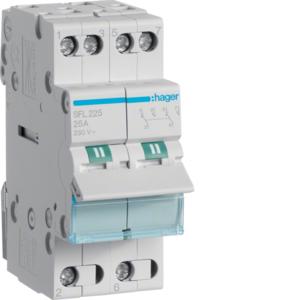

Hager SFL225 Change Over Switch, 2 Pole, 25A, 240V, 2 Position, Din Rail Mount, 2 Module
Code: HAGSFL225
Unit of measure:
EACH
