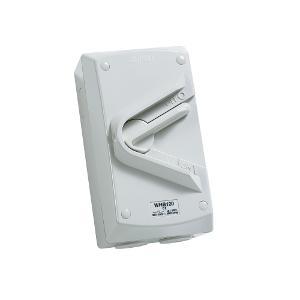

Clipsal WHB320-RG Weathershield Series Isolator, Weatherproof, Hoseproof, IP66, Surface Mount, 3 Pole, 20A, 415V, Plastic, Resistant Grey
Code: CLIWHB320RG
Unit of measure:
EACH
Color:
Resistant Grey
Description
Clipsal WHB320RG Weathershield Series Isolator, Weatherproof, Hoseproof, IP66, Surface Mount, 3 Pole, 20A, 415V, Plastic, Resistant Grey
Features:
• 1 way, on/off switch
• 8 mm diameter padlocking facility
• M180 rating
• Cables looped in and out from overhead
• In and out from underground
• In and out straight through the switch
• Cables in through side and out through bottom
• Two 25mm rear knockouts are moulded in the base
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Poles | 3 Pole |
Mount | Surface |
Standard | AS 60529, AS/NZS 60947-3, IEC 60669-1 and AS/NZS 3947-3:approval number S/1 |
Pole Configuration | 3 Pole |
Range | Weathershield |
Depth | 85mm |
Weight | 516g |
Colour | Resistant Grey |
Brand Name | Clipsal |
Item Name | Isolator |
Gang | 1 Gang |
Box Quantity | 30 |
IP Rating | IP66 |
Supplier Code | WHB320-RG |
Voltage | 440V |
Carton Quantity | 480 |
Height | 94mm |
Current | 20A |
Width | 165mm |
