Description

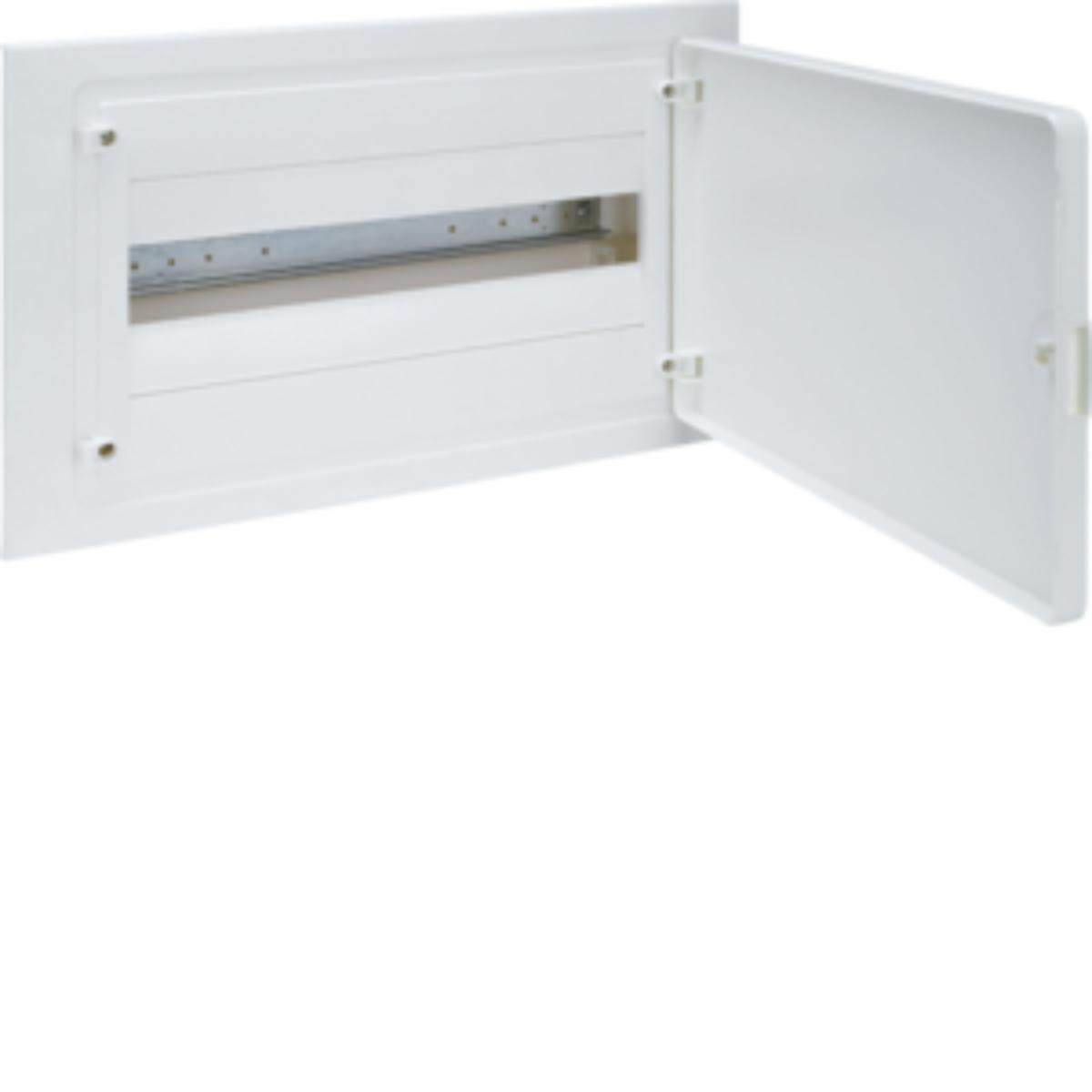

Hager VF118PT Golf VF Series Loadcentre, Switchboard Enclosure, Flush Mount, 18 Pole, 1 Row of 18 Module, With White Door, 293mmH x 450mmW x 97.5mmD, Pure White RAL9010
The golf enclosure range is the benchmark in distribution. Packed with features that provide simple and fast installation, available in flush or surface mounting and with a choice of either Q Link 63A terminals or 80A brass links, this range meets all expectations in distribution for both contractors and home owners.
Features:
• Flush mount enclosures from 1 to 4 rows, from 4 to 72 modules.
• Opaque or transparent door for devices up to 70mm installation depth
• Door opens up to 180 and can be fitted on right or left, with optional lock and keys.
• Wall box and cover are symmetrical for removable cable entry slider
• Cable entries for cable and conduit
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mount | Flush |
| Pole Configuration | 18 Pole |
| Material | Plastic |
| Range | Golf VF Series |
| Depth | 72mm |
| Weight | 1.4kg |
| Colour | White |
| Brand Name | Hager |
| Item Name | Load Centre |
| IP Rating | IP40 |
| Voltage | 400V |
| UNSPCS | 39121522 |
| Height | 293mm |
| Current | 63A |
| Width | 460mm |
