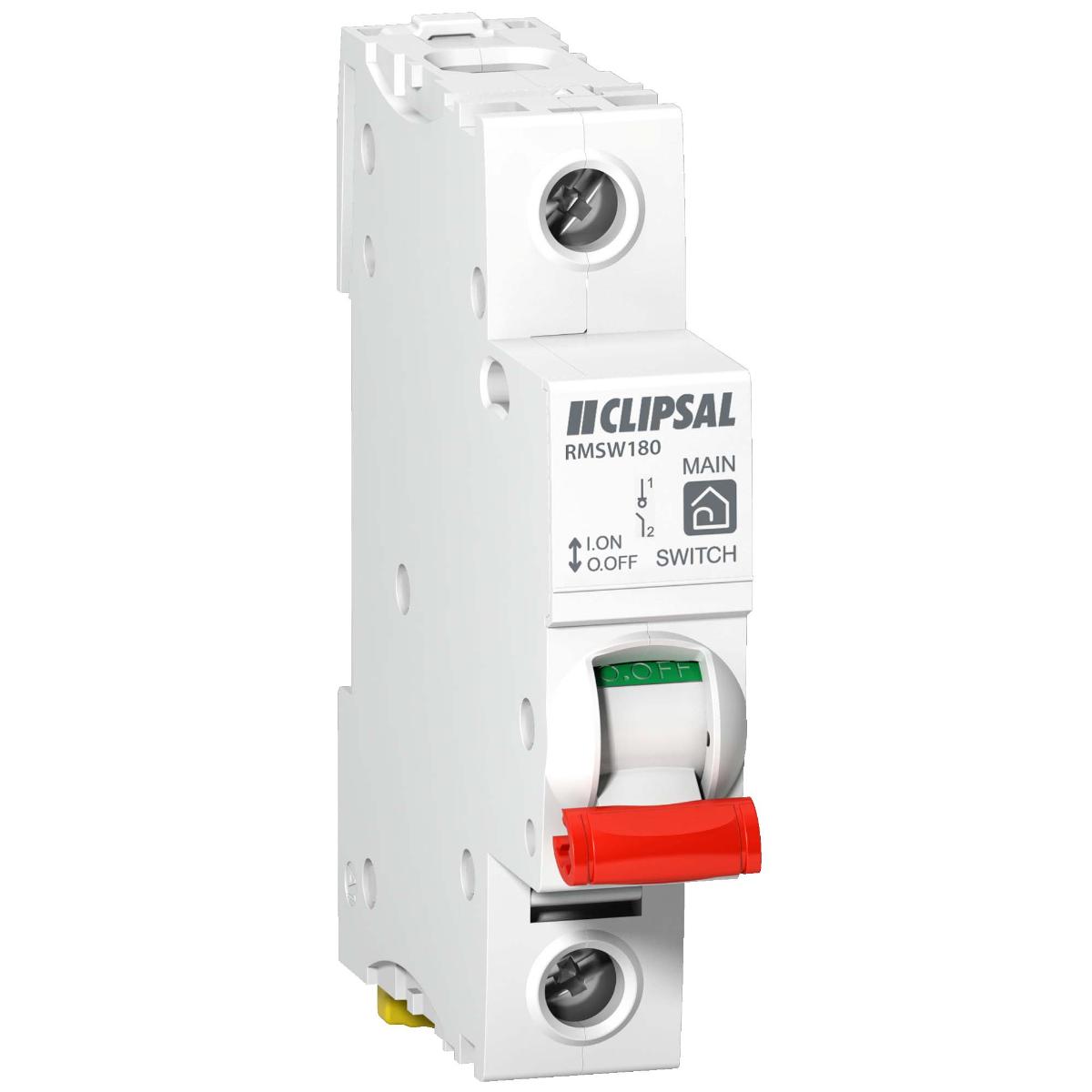

Clipsal RMSW180 Resi Max Series Main Switch, 1 Pole, 80A, 240V, Din Rail Mount, 1 Module, With Red Toggle
Code: CLIRMSW180
Unit of measure:
EACH
Description
Clipsal RMSW180 Resi Max Series Main Switch, 1 Pole, 80A, 240V, Din Rail Mount, 1 Module, With Red Toggle
Features:
• Similar form factor as Resi MAX and MAX4 SLIM RCBOs
• Easy to select and order with a simpler range
• VisiSafe - Designed to ensure a fully secured operation when conducting maintenance work
• Full range to cover single phase and multi-phase applications
• Class 2 insulation
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 1 Pole |
| Pole Configuration | 1 Pole |
| Material | Metal and Plastic |
| Range | Resi MAX |
| Weight | 240g |
| Colour | White |
| Brand Name | Clipsal |
| Installation Direction | DIN Rail |
| Item Name | Switch Disconnector |
| Box Quantity | 12 |
| IP Rating | IP20 |
| Supplier Code | RMSW180 |
| Voltage | 250V AC |
| Carton Quantity | 120 |
| Current | 80A |
| Width | 18mm |
