RCBO DX3 4P 32A 30MA 6KA CL A 4 MODULE
RCBO DX3 4P 32A 30MA 6KA CL A 4 MODULE
RCBO DX3 4P 32A 30MA 6KA CL A 4 MODULE
RCBO DX3 4P 32A 30MA 6KA CL A 4 MODULE
Legrand
LEG411237

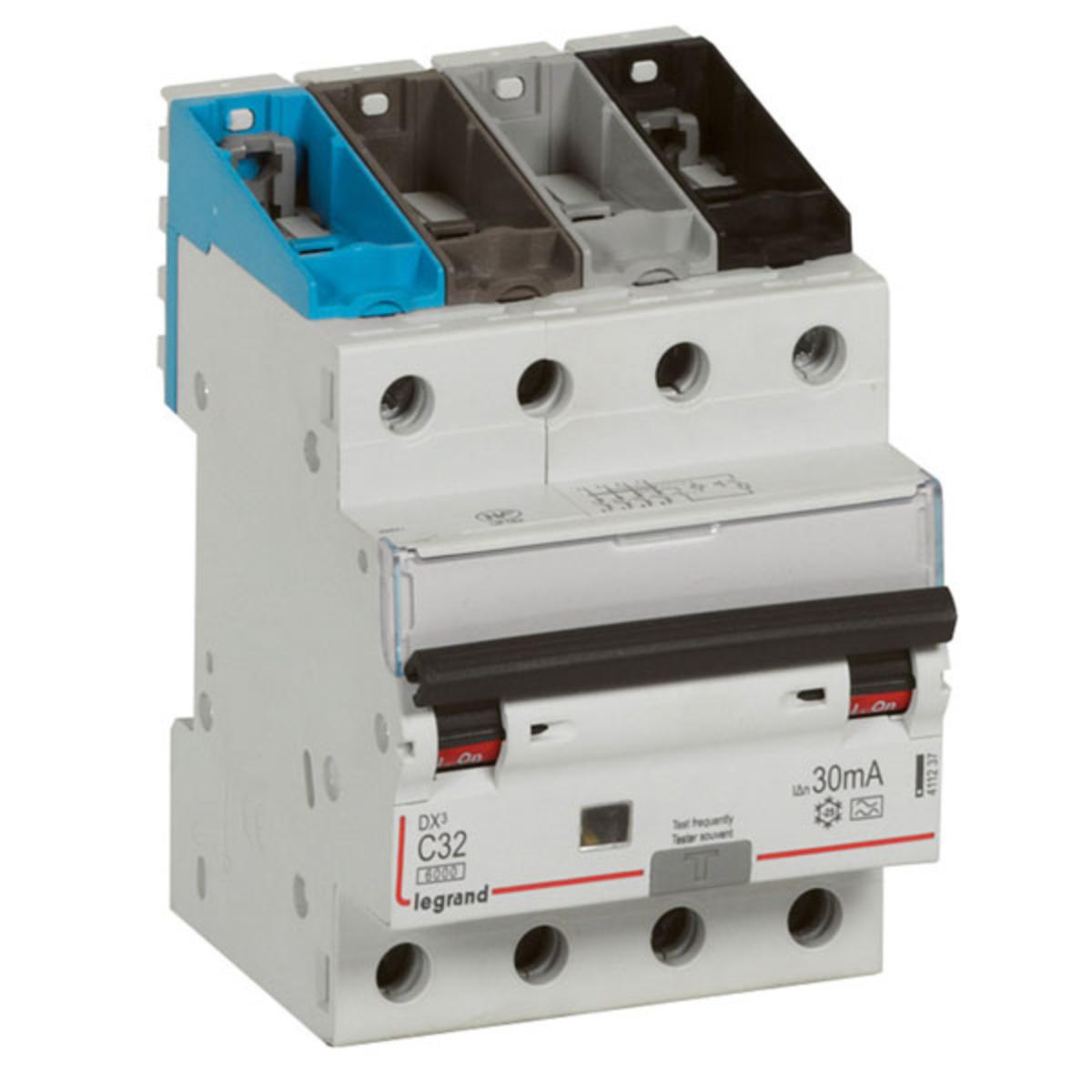

Legrand 411237 DX³ RCBO, 4P, 32A, 6kA Breaking Capacity, C Curve, DIN Rail Mount, 30mA Sensitivity, IP20, AS/NZ 61009-1, 400VAC, Polyamide, White
Show More

Legrand 411237 DX³ RCBO, 4P, 32A, 6kA Breaking Capacity, C Curve, DIN Rail Mount, 30mA Sensitivity, IP20, AS/NZ 61009-1, 400VAC, Polyamide, White

The Legrand RCBO is a sophisticated Residual Current Operated Circuit Breaker designed to provide comprehensive control and protection for electrical circuits. With a rated current of 32A and a breaking capacity of 6kA, this 4-pole device effectively safeguards against short circuits and overloads while ensuring isolation of electrical circuits. It operates at a sensitivity of 30mA, making it suitable for protecting individuals from direct and indirect contact with electricity, as well as shielding installations from insulation faults.

This RCBO is part of the DX³ range and features a C curve, which enhances its performance in environments prone to disturbances. Constructed from durable polyamide and PBT materials, it is rated IP20 and can operate within a temperature range of -25 to 60°C. Designed for DIN rail mounting, the device occupies four modules and complies with AS/NZ 61009-1 standards. Additionally, it comes with a one-year warranty, ensuring peace of mind for users. || The Legrand RCBO is a sophisticated Residual Current Operated Circuit Breaker designed to provide comprehensive control and protection for electrical circuits. With a rated current of 32A and a breaking capacity of 6kA, this 4-pole device effectively safeguards against short circuits and overloads while ensuring isolation of electrical circuits. It operates at a sensitivity of 30mA, making it suitable for protecting individuals from direct and indirect contact with electricity, as well as shielding installations from insulation faults.

This RCBO is part of the DX³ range and features a C curve, which enhances its performance in environments prone to disturbances. Constructed from durable polyamide and PBT materials, it is rated IP20 and can operate within a temperature range of -25 to 60°C. Designed for DIN rail mounting, the device occupies four modules and complies with AS/NZ 61009-1 standards. Additionally, it comes with a one-year warranty, ensuring peace of mind for users.

Features:
• Residual Current Operated Circuit Breaker with positive contact indication for enhanced safety
• Rated current of 32A ensures reliable performance in various applications
• 6kA breaking capacity provides effective protection against short circuits
• C Curve characteristic allows for a balanced response to overload conditions
• Designed for DIN rail mounting for easy installation and space efficiency
• 4 pole configuration supports three-phase systems with neutral
• Constructed from durable polyamide and PBT materials for longevity
• Temperature range of -25 to 60°C accommodates diverse operating environments
• Sensitivity of 30mA ensures prompt detection of leakage currents
• Complies with AS/NZ 61009-1 standards for safety and reliability
