Description
Schneider ZB5AP2S Harmony XB5, Push button head, plastic, flush, black, 22mm, spring return, coloured boot, unmarked

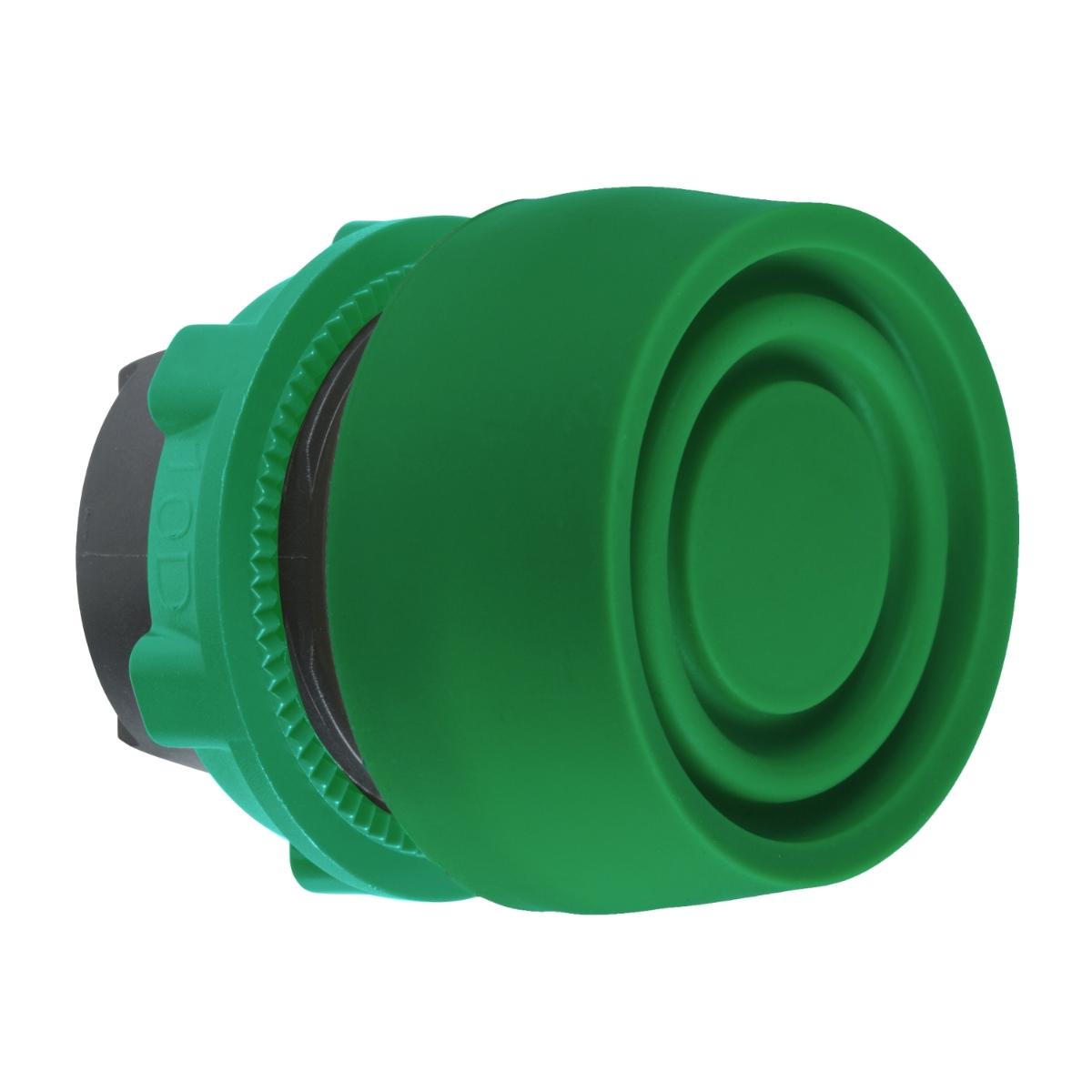

This green colored silicone booted button head provides an ergonomic interface for controlling your machine . It provides also a simple solution to prevent dirt and other contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Ambient air temperature for operation | -40-70 °C |
| Supplier Code | ZB5AP3S |
| Ambient air temperature for storage | -40-70 °C |
| Mounting diameter | 22mm |
| Operator profile | green flush- unmarked |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Type of operator | spring return |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Head type | standard |
| IP degree of protection | IP69K conforming to ISO 20653 |
| Range | Harmony XB5 |
| Weight | 0.021 kg |
| Shape of signaling unit head | round |
| Overvoltage category | class II conforming to IEC 60536 |
| CAD overall width | 30mm |
| Main group | push-button |
| Item Name | Push Button |
| Device presentation | basic element |
| Protective treatment | TH |
| Bezel material | dark grey plastic |
| CAD overall height | 30mm |
| Operator additional information | coloured boot |
| Standard | RoHS, CE, CSA LR44087 Class 3211 03, UL E164353 CCN NKCR |
| CAD overall depth | 33mm |
| Cap/operator or lens colour | green |
| Colour | Yellow |
| Group of product | silicone boot push |
| Mechanical durability | 10000000 cycles |
| UNSPCS | 39122221 |
| Sale per indivisible quantity | 1 |
| Diameter | 22mm |
| NEMA degree of protection | NEMA 4X |
| Customizable | 0 |
| Device short name | ZB5 |
| Compatibility code | ZB5 |
| Product compatibility | legend holder |
| Marking | unmarked |
| Standards | JIS C8201-1 |
| Product certifications | LROS (Lloyds register of shipping) |
| Brand Name | Schneider Electric |
| Electrical composition code | C11 for <3 contacts using single blocks in front mounting |
| IP Rating | IP66 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C- distance : 0.1 m |
| Net weight | 0.021 kg |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Station name | XALK 2...5 cut-outs |
| Product or component type | head for non-illuminated push-button |
