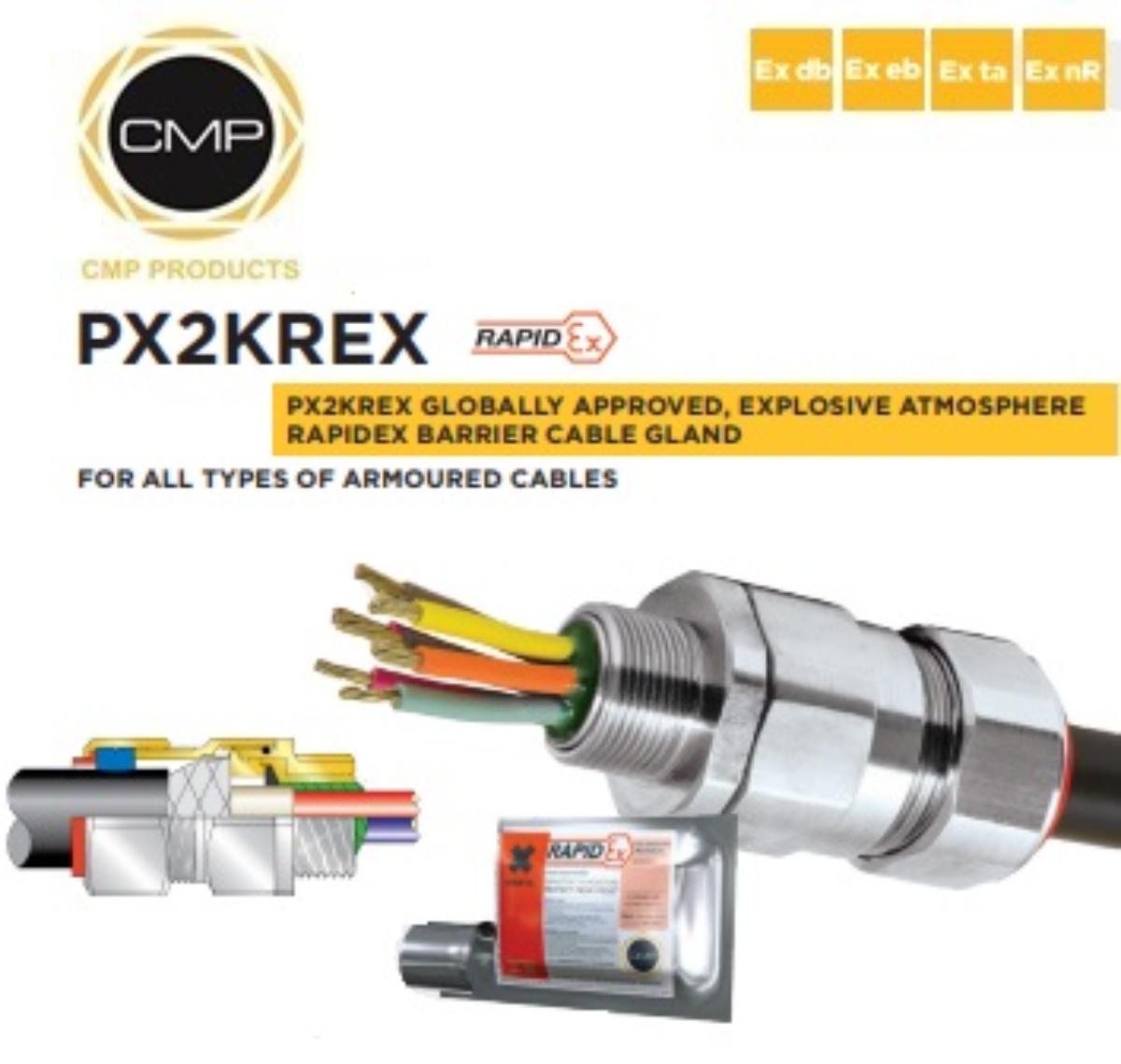

CMP 20PX2KREX1RA5 Gland (Exd,e,nR) BARRIER RapidEx For all Types of Armoured Cables Inner RapidEx Barrier Seal & Outer Sheath Seal PX2KREX Series Nickel Plated Brass (NPB) (12.5-20.9) Cable OD M20 x 15mm Thread length
Code: CMP20PX2KREX1RA5
Unit of measure:
EACH
Description
Gland (Exd,e,nR) BARRIER RapidEx For all Types of Armoured Cables Inner RapidEx Barrier Seal & Outer Sheath Seal PX2KREX Series Nickel Plated Brass (NPB) (12.5-20.9) Cable OD M20 x 15mm Thread length
• RapidEx liquid pour sealing system reduces installation time
• Controlled outer load retention seal , Integral protected deluge seal
• Metal-to-metal armour clamping
• -60˚C to +85˚C
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mounting thread Size (mm) | M20 |
| Cable Type | For all Types of Armoured Cables |
| Code of Protection | Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb*, Ex eb I Mb* |
| Category | HAZARDOUSAREAGLAND |
| Compliance Standards and Approvals | BS 6121: Part 1:1989, IEC 62444, EN 62444 |
| Material | Nickel Plated Brass (NPB) |
| Cable acceptance details - overall diameter (mm) | (12.5-20.9) Cable OD |
| Ambient air temperature for operation | -60˚C to +85˚C |
| Brand Name | CMP Products |
| Series | PX2KREX Series |
| Box Qty | 10 |
| UOM | EACH |
| IP Rating | IP66, IP67 & IP68**** |
| Comes with Nut (Y/N) | N |
| Mounting thread Length (mm) | 15mm Thread length |
