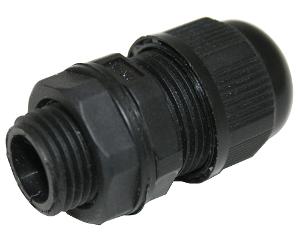

NYLON CABLE GLAND 16MM IP68 BLACK
NYLON CABLE GLAND 16MM IP68 BLACK
Cabac
CABGN16
Cabac GN16, Gland Nylon Premium GN series , 5.0 - 10mm Cable OD, M16x1.5 , 10mm Thread length,Supplied with Locknut & body Seal
CABGN16 Data Sheet View Document (0.47 Mb)
Show More

Cabac GN16, Gland Nylon Premium GN series , 5.0 - 10mm Cable OD, M16x1.5 , 10mm Thread length,Supplied with Locknut & body Seal

Gland Nylon Premium GN series , 5.0 - 10mm Cable OD, M16x1.5 , 10mm Thread length,Supplied with Locknut & body Seal.

Features:
• Metric threaded glands made from Polyamide 6.6 with camera shutter cable sealing rated IP68.
• Medium resistance to vegetable oils and Benzol.
• Conforms to Standards DIN VDE 0619, IP68 5 bar.
• Supplied complete with locknut and body seal.
• Max Torque: cap - 5.4Nm: nut - 2.82Nm.
