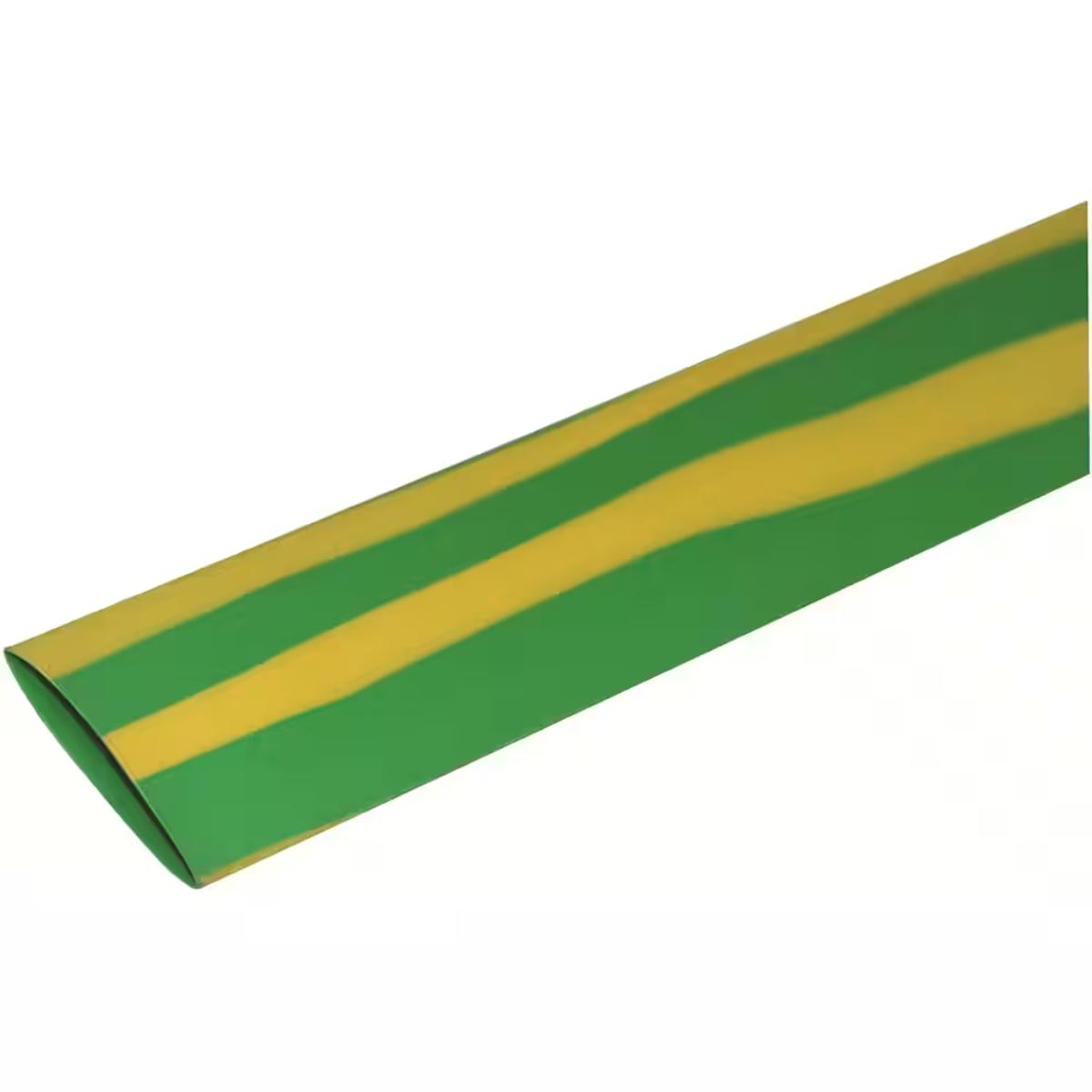

HellermannTyton HS10YG/L Heat Shrink, Thin Wall Polyolefin Tubing, 10mm x 1.2m, 2:1 Shrink Ratio, -55 to +125°C, 600V, ASTM D2671, Yellow/Green
The HellermannTyton Heat Shrink is a high-performance, thin-walled tubing designed for effective insulation and protection in electrical applications. Measuring 10mm in diameter and 1.2m in length, this yellow/green polyolefin heat shrink offers a shrink ratio of 2:1, making it ideal for various wiring needs. With a temperature range of -55 to +125°C and a minimum shrink temperature of +70°C, it ensures reliable performance under diverse conditions.
This heat shrink is engineered to withstand high voltage applications with a breaking capacity of 32kV/mm and is rated for up to 600V. It complies with several industry standards, including ASTM D2671 and UL22, ensuring its suitability for professional use. Additionally, the flame-retardant properties and UL224 VW1 listing enhance safety, making this product an excellent choice for both commercial and industrial environments. || The HellermannTyton Heat Shrink is a high-performance, thin-walled tubing designed for effective insulation and protection in electrical applications. Measuring 10mm in diameter and 1.2m in length, this yellow/green polyolefin heat shrink offers a shrink ratio of 2:1, making it ideal for various wiring needs. With a temperature range of -55 to +125°C and a minimum shrink temperature of +70°C, it ensures reliable performance under diverse conditions.
This heat shrink is engineered to withstand high voltage applications with a breaking capacity of 32kV/mm and is rated for up to 600V. It complies with several industry standards, including ASTM D2671 and UL22, ensuring its suitability for professional use. Additionally, the flame-retardant properties and UL224 VW1 listing enhance safety, making this product an excellent choice for both commercial and industrial environments.
Features:
• Thin wall flexible polyolefin tubing
• Size of 10mm with a length of 1.2m
• Temperature range from -55 to +125°C
• Shrink ratio of 2:1
• Minimum shrink temperature of +70°C
• Breaking capacity of 32kV/mm
• Voltage rating of 600V
• Flame retarded and UL224 VW1 listed
• Complies with ASTM D2671 and RoHS standards
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Heat Shrink |
| Size | 10mm |
| Compliance Standards and Approvals | ASTM D2671-UL22-RoHS |
| Material | Polyolefin |
| Colour | Yellow - Green |
| Brand Name | HellermannTyton |
| Item Name | Heatshrink |
| UOM | Metric |
| Minimum Shrink Temperature | +70°C |
| Length | 1.2m |
| Voltage | 600V |
| Temperature Range | -55 to +125°C |
| Wall Thickness | 0.56mm |
| Shrink Ratio | 2:1 |
| Wall Type | Thin |
| Breaking Capacity | 32kV/mm |
