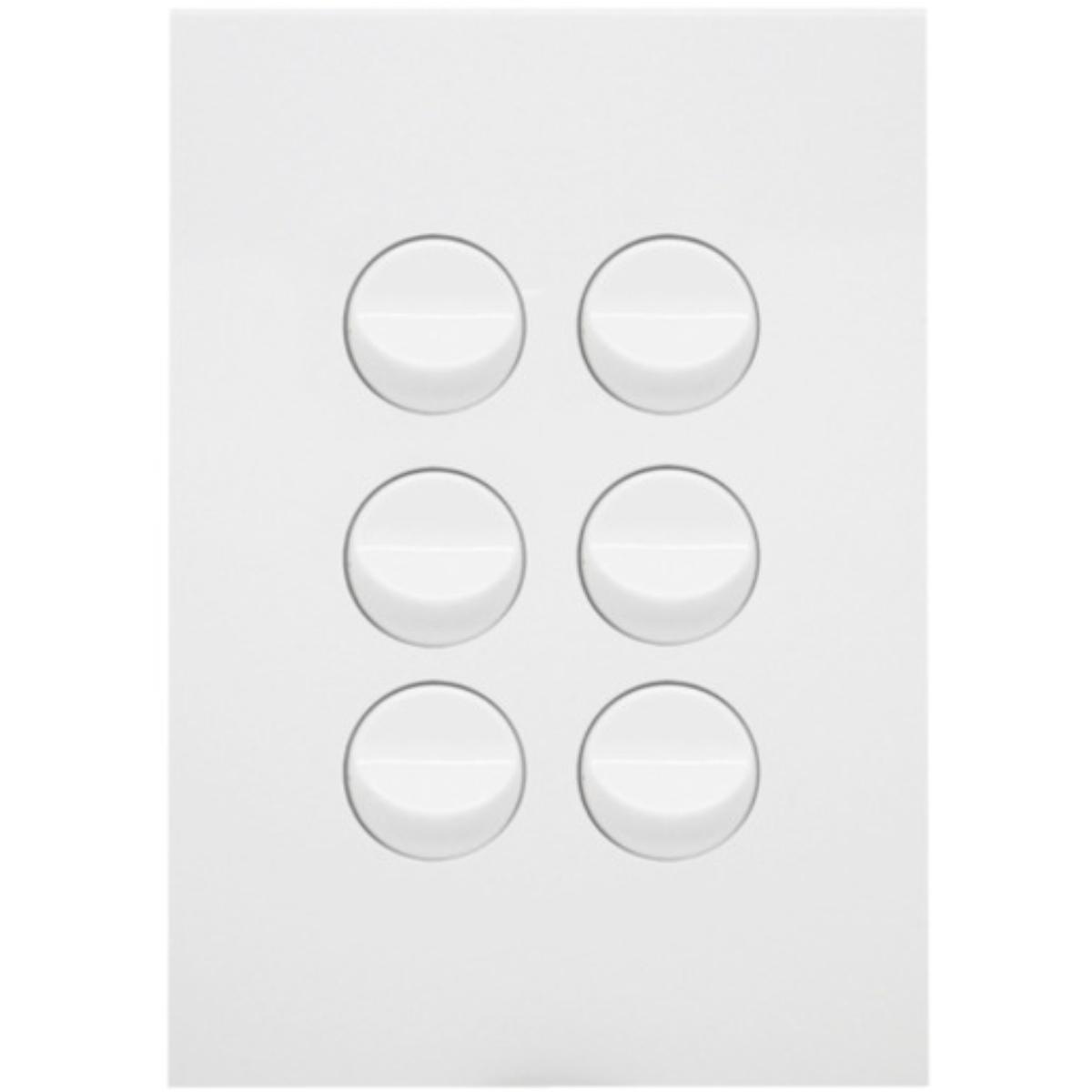

Hager WBQSV2 Finesse Switch, Rocker Type, Single Pole, 16A, 6 Gang, 2Way, Flush, Gloss White
Code: HAGWBQSV6
Unit of measure:
EACH
Description
Hager WBQSV2 Finesse Switch, Rocker Type, Single Pole, 16A, 6 Gang, 2Way, Flush, Gloss White
Finesse 6 Gang Switch Plate cw mechs
Features:
• Multiple mounting holes
• Supplied with captive 32mm tapered point fixing screws
• No mechanism push back
• High impact, high gloss UV stabilised polycarbonate construction
• Spray matt finishes available in matt white and matt black
• Switch when supplied are fitted with 16AX mechanisms (suitable for fluorescent loads)
• Terminals accommodate 4 x 1.5mm2 cable
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Brand Name | Hager |
| Gang | 6 Gang |
| Rated current | 16 AX |
| Nominal voltage | 250 V AC |
| Type of connection | With screw terminals |
| Model | Finesse |
| Frequency | 50 Hz |
| Height | 117mm |
| Mounting Type | Flush-mounted |
| Width | 77mm |
| Type of control unit | Rocker |
| Colour | Gloss White |
