Description

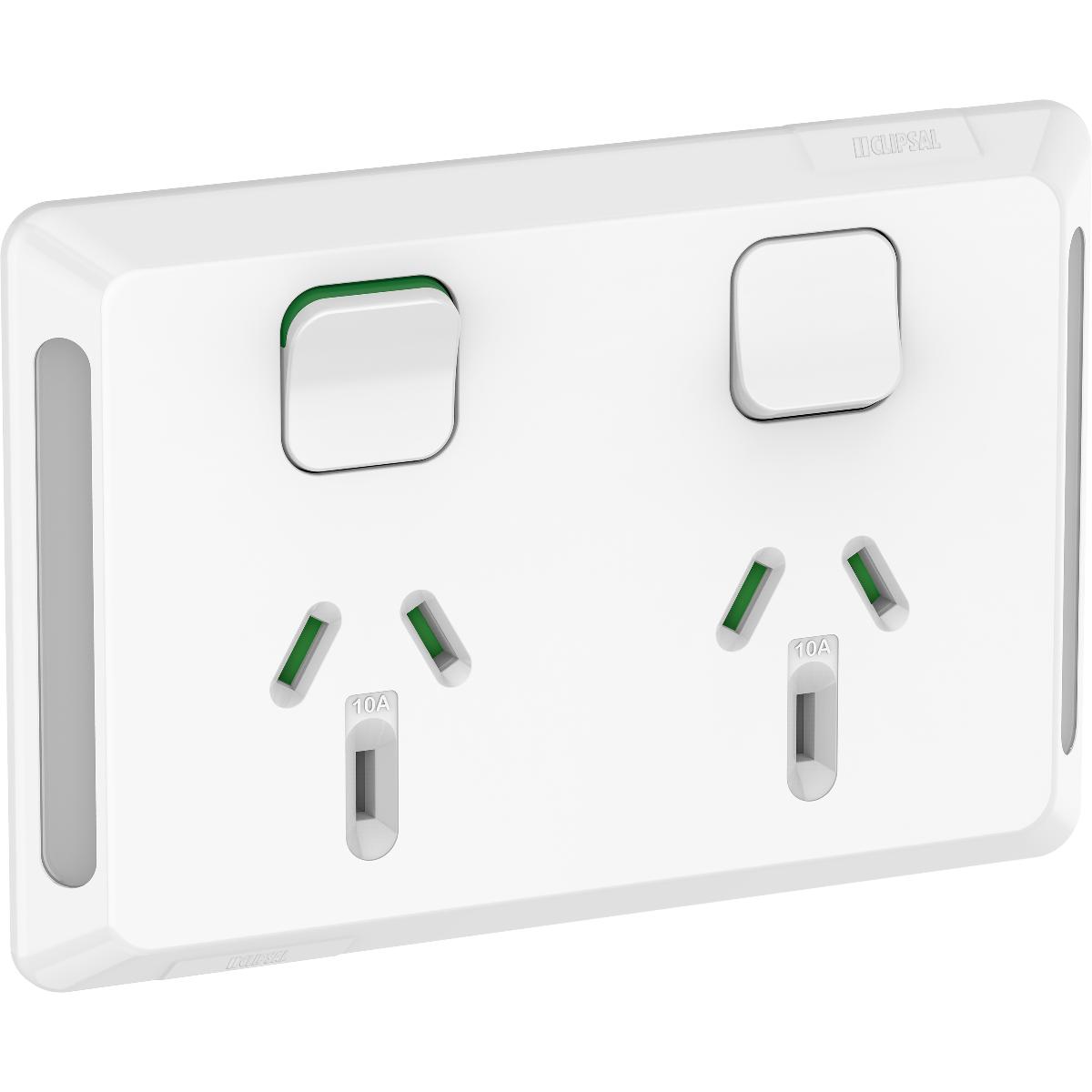

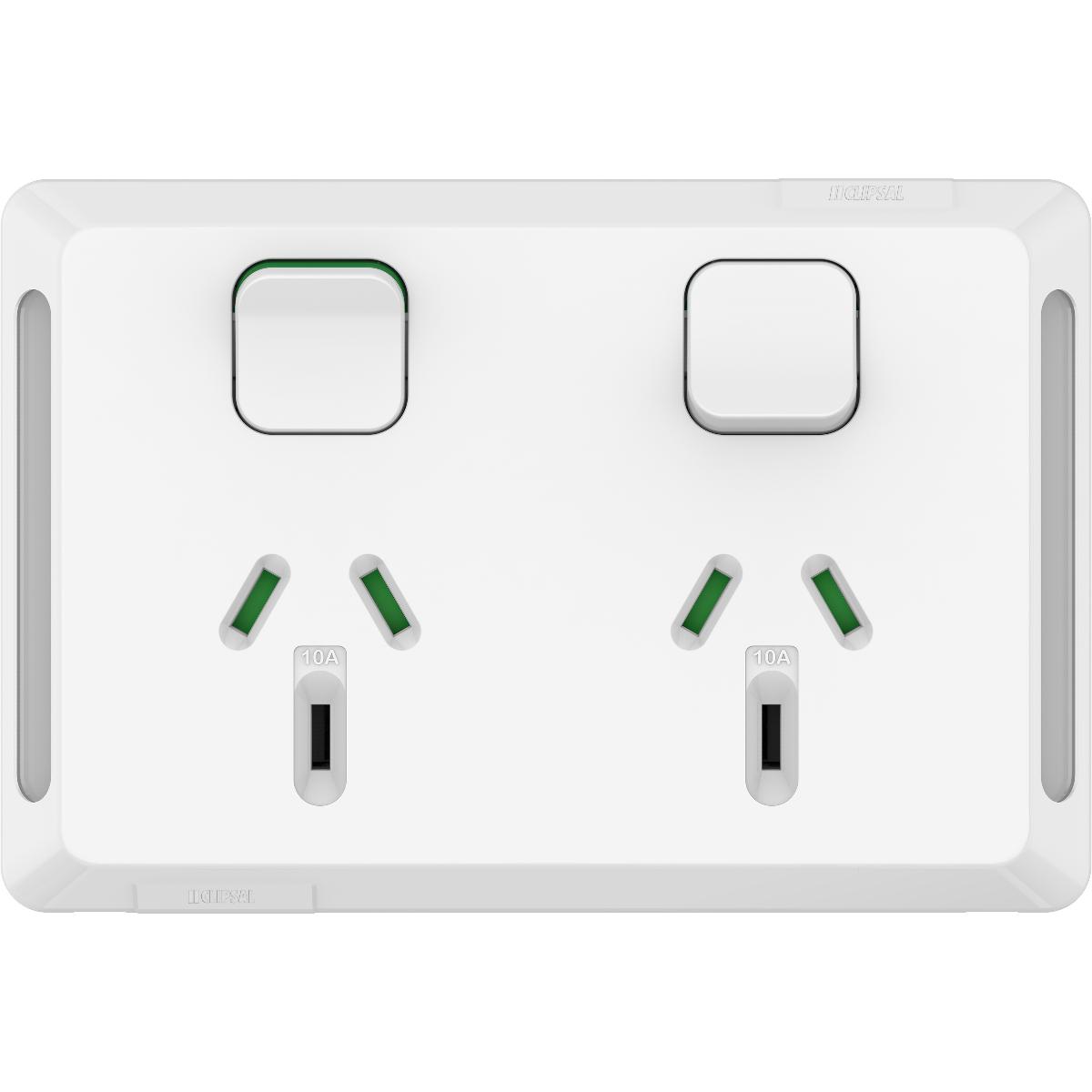

Clipsal P3025-XW Pro Series GPO, Double, Powerpoint, Switchplug Combination, Single Pole, Flush, Horizontal, 250V 10A, 3 Pin, Extra Vivid White
Featuring a clean and seamless design, the Clipsal Pro Series Horizontal Twin Switched Power Point is rated 10A, 250V. The outlet is robust and reliable and is impact resistant to IK08. The Skin features clear windows, making it easy to see the circuit identification labels on the grid below.
Features:
• Glossy surface
• Impact protection rating of IK08 to withstand up to 5 joules of impact: common in high traffic areas, like schools and commerical spaces.
• Clear window protects circuit identification labels
• Circuit identification codes enables easy recognition
• Secure skins
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Poles | 1 Pole |
Shape | Rectangular |
IK Rating | IK08 |
Mount | Flush |
Standard | AS/NZ 3112 |
Colour | Extra White |
Rockers | 2 Rockers |
Gang | 2 Gang |
Supplier Code | P3025-XW |
Connection Type | Screw Terminal |
Voltage | 250V |
Number of Pins | 3 Pin |
Carton Quantity | 50 |
Finish | Glossy |
Width | 116mm |
height | 78mm |
Finish/Color | Glossy |
Pole Configuration | 1 Pole |
Material | ABS, Polycarbonate, Polypropylene and Polyoxymethylene |
Range | Pro Series |
Weight | 0.094kg |
Brand Name | Clipsal |
Installation Direction | Horizontal |
Item Name | Switch Socket |
Box Quantity | 10 |
depth | 27mm |
Sockets | 2 Socket |
Length | 116mm |
Current | 10A |
