Description

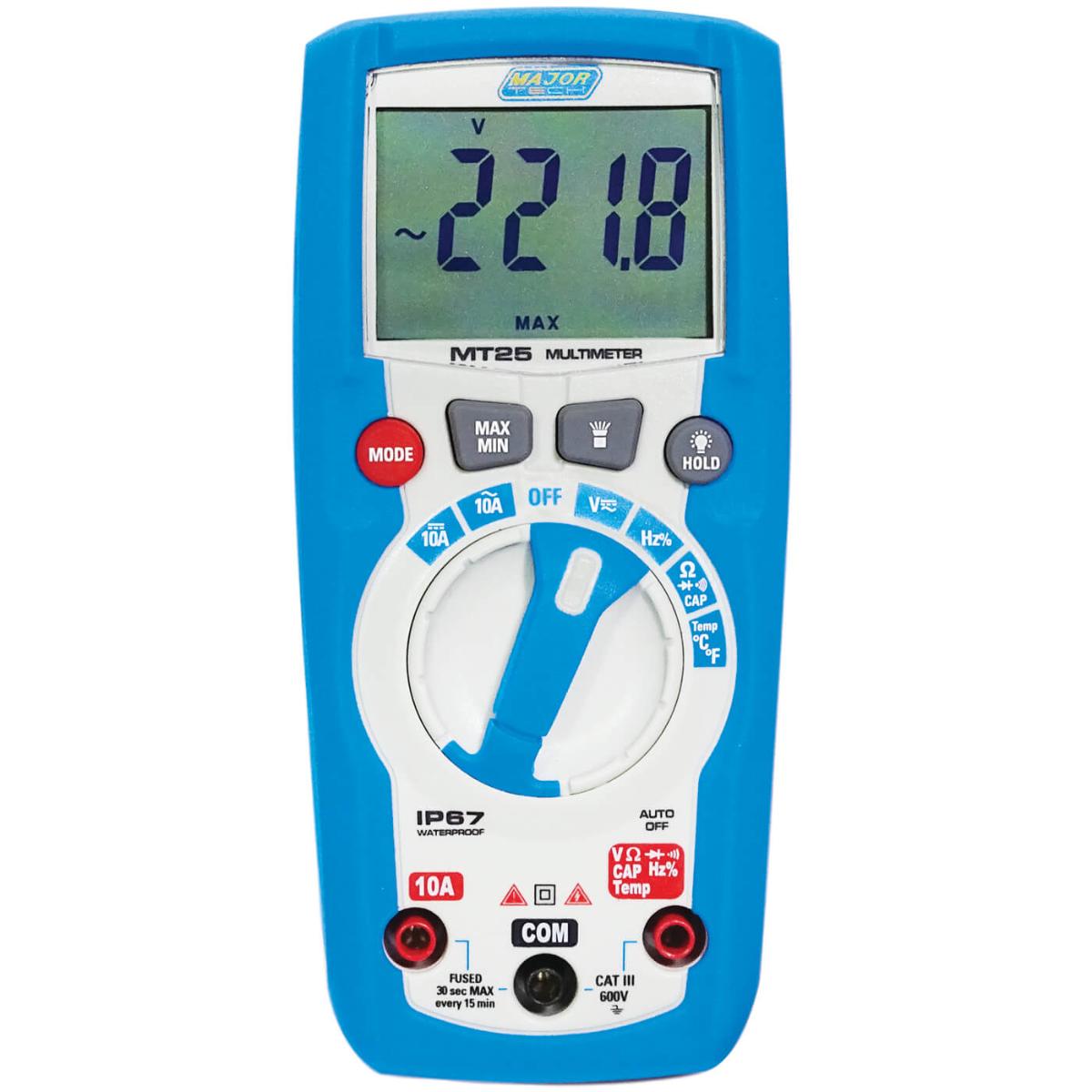

Major MT25 Compact Digital Multimeter, 600V ac/dc, 10A ac/dc, Temperature Between -20°C to 760°C, Capacitance to 4000uF, 147 x 68 x 50mm
Features:
• CAT III 600V and CAT II 1000V
• IP67 Dust & Waterproof Double Moulded Housing
• 41 Segment Bargraph
• Measures AC and DC voltage up to 600V
• Temperature measurement from -20C to 760C
• 4000 count LCD display
• Capacitance to 4000F
• 40M Resistance
• Backlit display to read easily in dimly lit areas
• Min, Max & Data Hold
• Auto Range and Manual Range Control
• Duty Cycle
• Diode Test & Continuity Test
• LED Flashlight
• Auto Power Off
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Finish/Color | Plastic |
Standard | IEC 61010-1 |
Material | Plastic |
Weight | 0.5488kg |
Depth | 50mm |
Colour | Yellow |
Brand Name | Major Tech |
Item Name | Multimeter |
Box Quantity | 1 |
Length | 125mm |
Voltage | 400.0mV -600VDC / 4.000V - 600V |
Frequency | 9.999MHz |
Height | 175mm |
Width | 70mm |
Finish | Plastic |
