Description

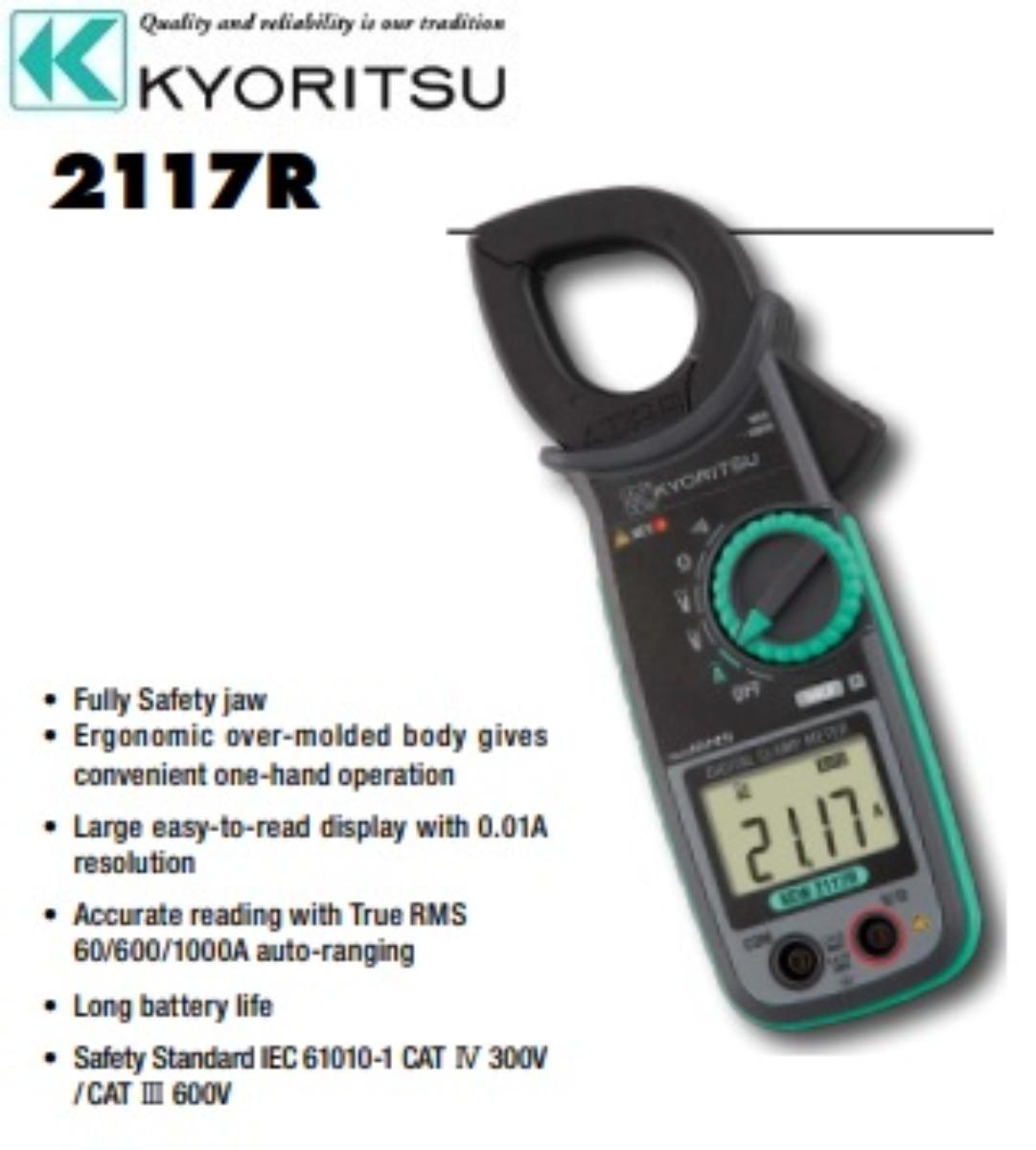

KYORITSU 02117R029C Clamp Meter Ditigal Tear drop shaped Jaws , 2117R , IEC 61010-1 CAT IV 300V CAT III 600V , Suit 33mm Diameter Conductor 1000Amp AC , True RMS
Clamp Meter Ditigal Tear drop shaped Jaws , 2117R , IEC 61010-1 CAT IV 300V CAT III 600V , Suit 33mm Diameter Conductor 1000Amp AC , True RMS
Features:
• Fully Safety jaw
• Ergonomic over-molded body gives convenient one-hand operation
• Large easy-to-read display with 0.01A resolution
• Accurate reading with True RMS 60/600/1000A auto-ranging
• Long battery life
• Safety Standard IEC61010-1 CAT IV 300V / CAT III 600V
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Continuity buzzer | 600Ω (Buzzer sounds below 90Ω) |
Category | Multimeter |
Case included (Y/N) | Y |
AC V | 60.00/600.0V (Auto-ranging), ±1.0%rdg±2dgt [45 - 65Hz] (600V), ±1.5%rdg±4dgt [40 - 1kHz] (60/600V) |
Leads included (Y/N) | Y |
Dimensions | (L)204mm x(W)81mm x (D)36mm |
Ω | 600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging), ±1.0%rdg±5dgt (600Ω), ±2.0%rdg±3dgt (6/60/600kΩ) |
DC V | 60.00/600.0V (Auto-ranging), ±1.0%rdg±3dgt (60V), ±1.2%rdg±3dgt (600V) |
Applicable standards | IEC 61010-1 CAT IV 300V, CAT III 600V, Pollution degree 2, IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2, IEC 60529, EN 50581(RoHS) |
Deep | 36mm |
Colour | Green - Black |
Brand Name | Kyoritsu |
Conductor size | o 33mm max. |
Continuous measuring time | Approx.170 hours (Auto power save : approx.10 minutes) |
Battery required | AAA x 2 |
Dimensions/Weight | 204(L)x81(W)x36(D)mm / 220g Approx. (including batteries) |
Length | 204mm |
UNSPSC | 41113600 |
Power source | R03/LR03(AAA)(1.5V)x2 |
Width | 81mm |
AC A | 60.00/600.0/1000A (Auto-ranging), ±1.5%rdg±4dgt [45 - 65Hz], ±2.0%rdg±5dgt [40 - 1kHz] |
