Description

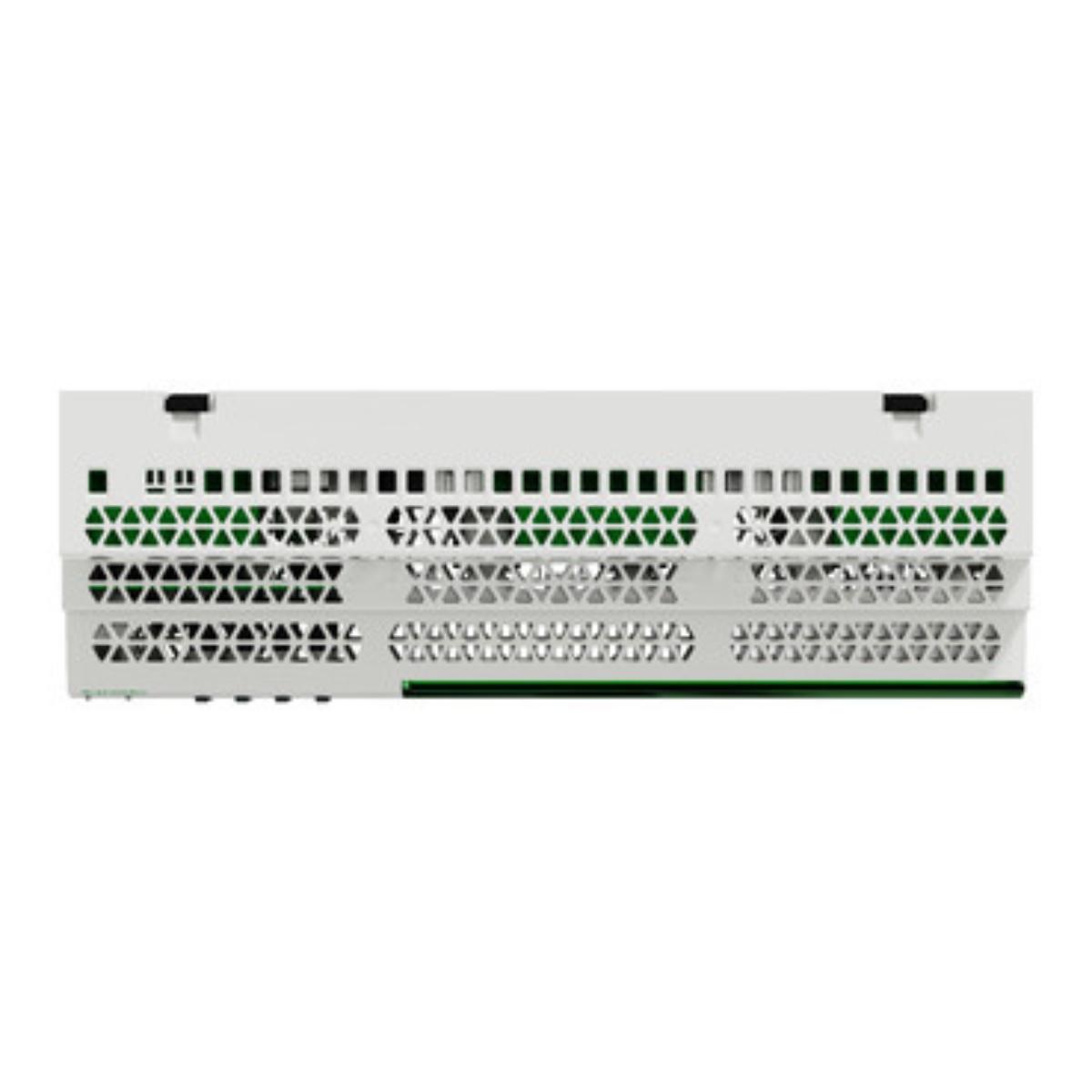

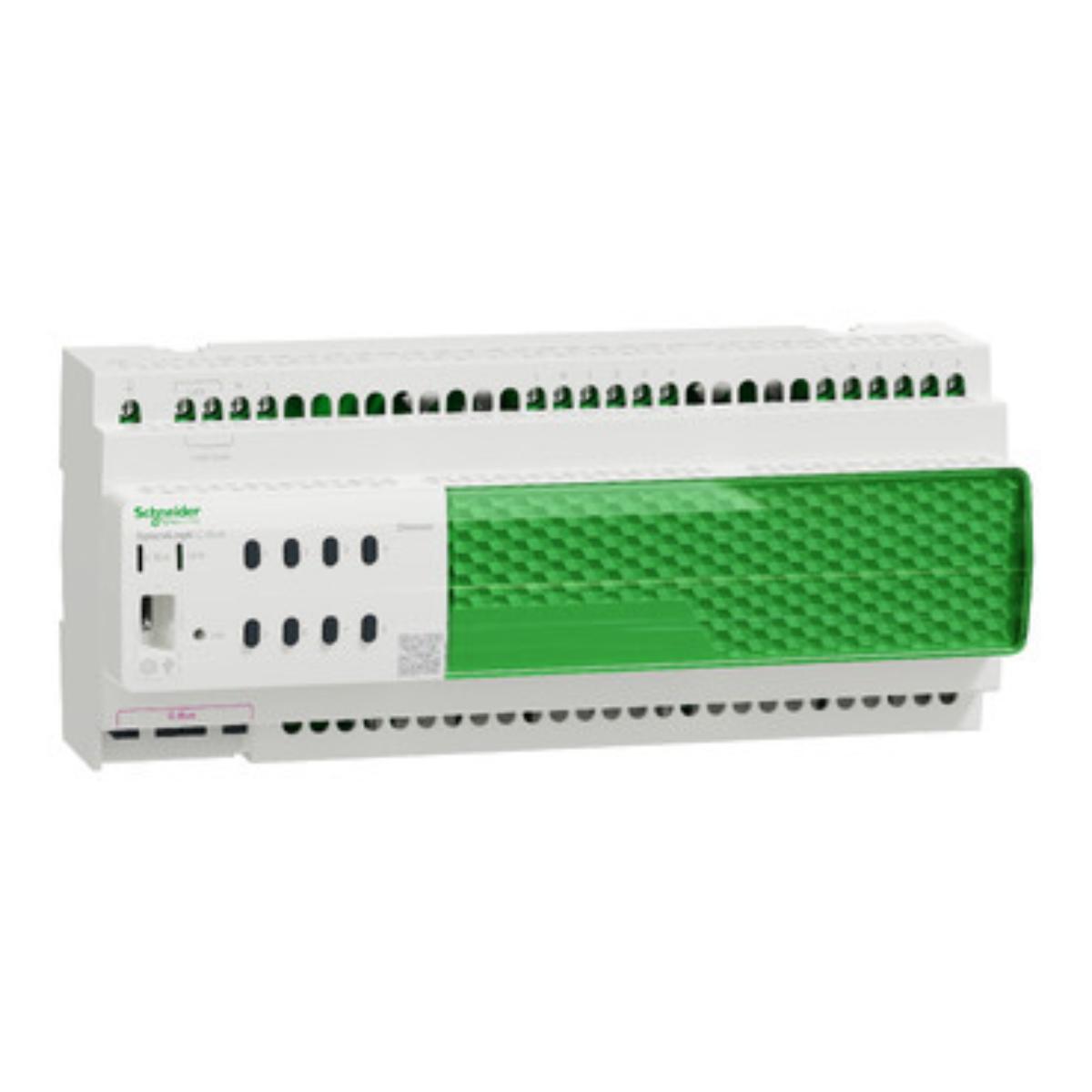

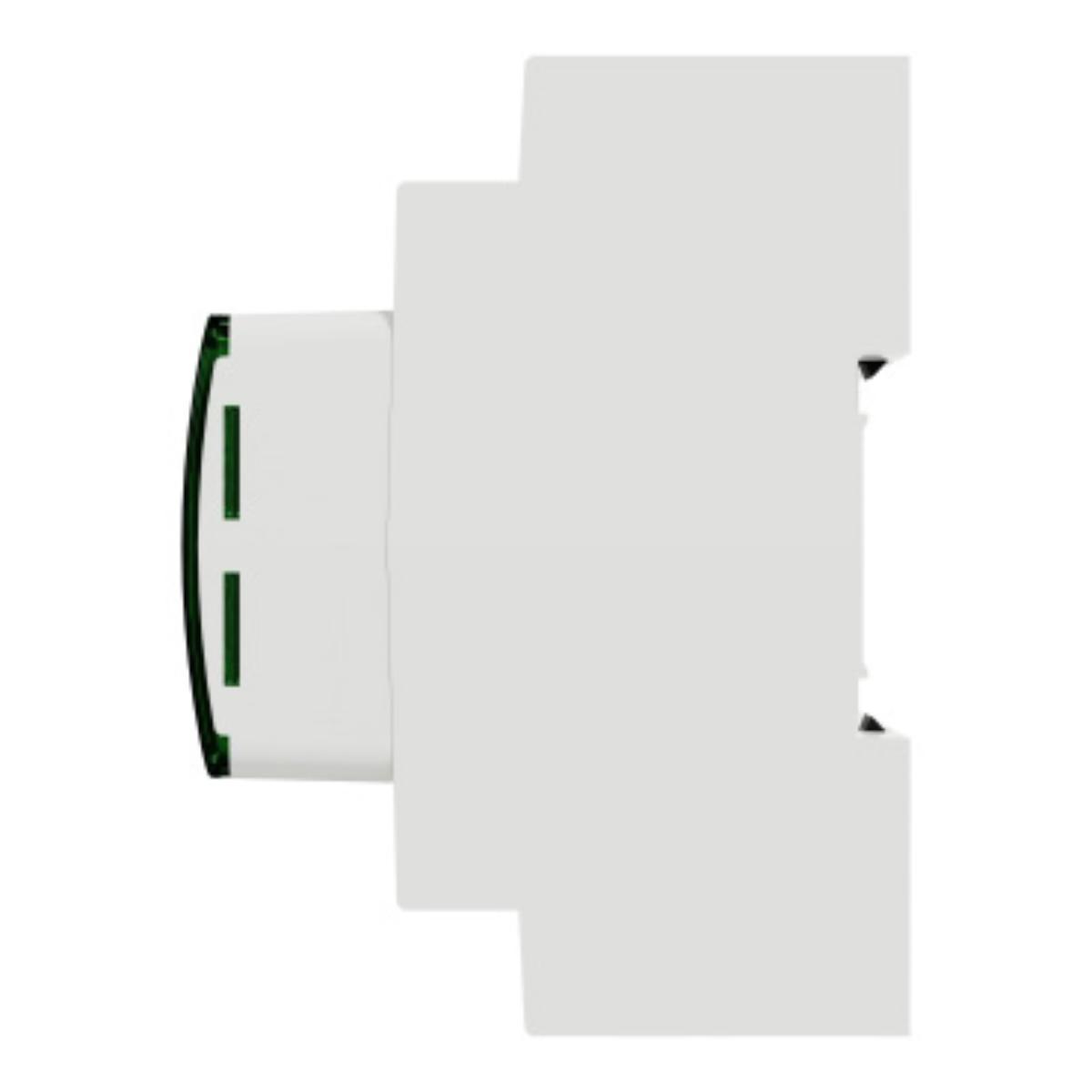

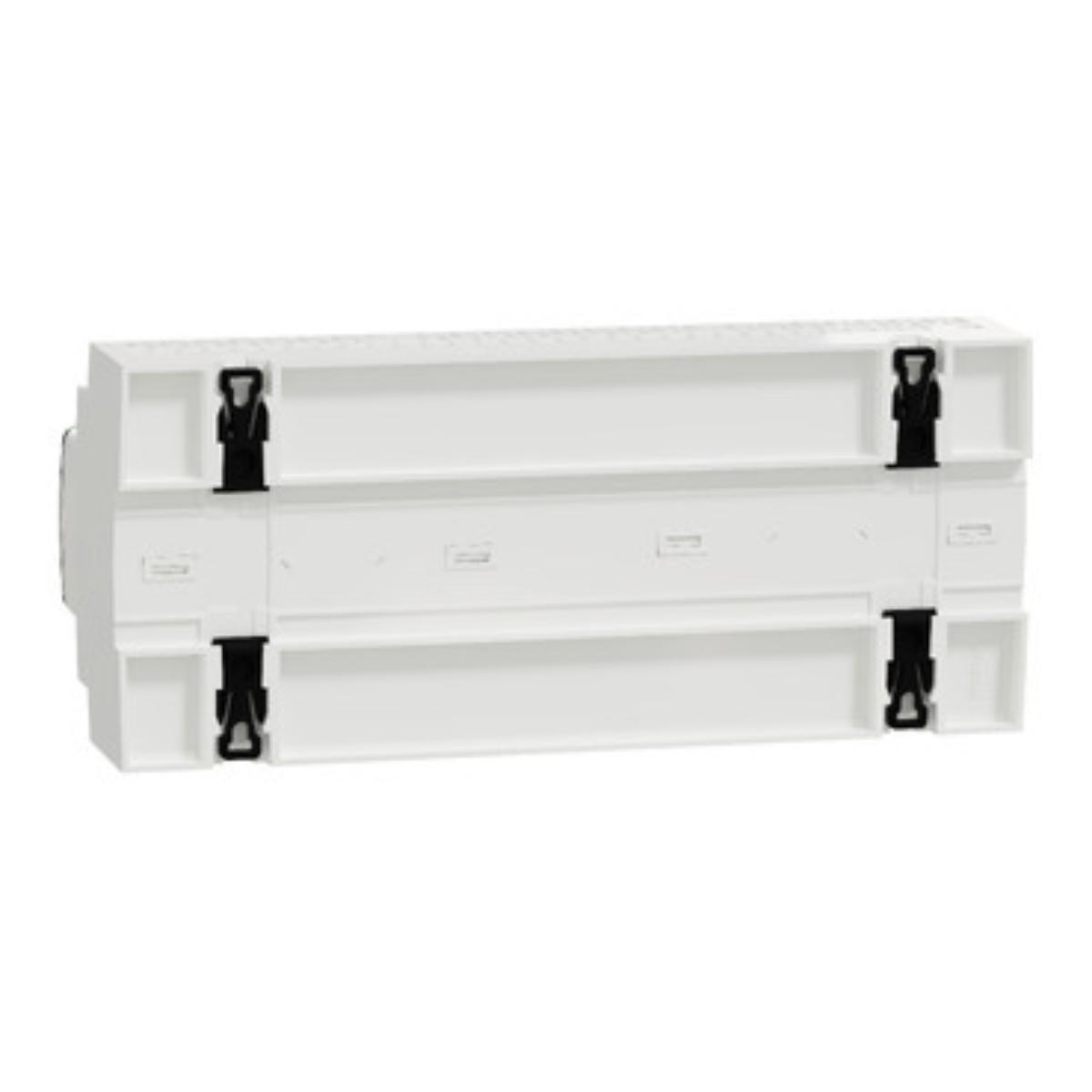

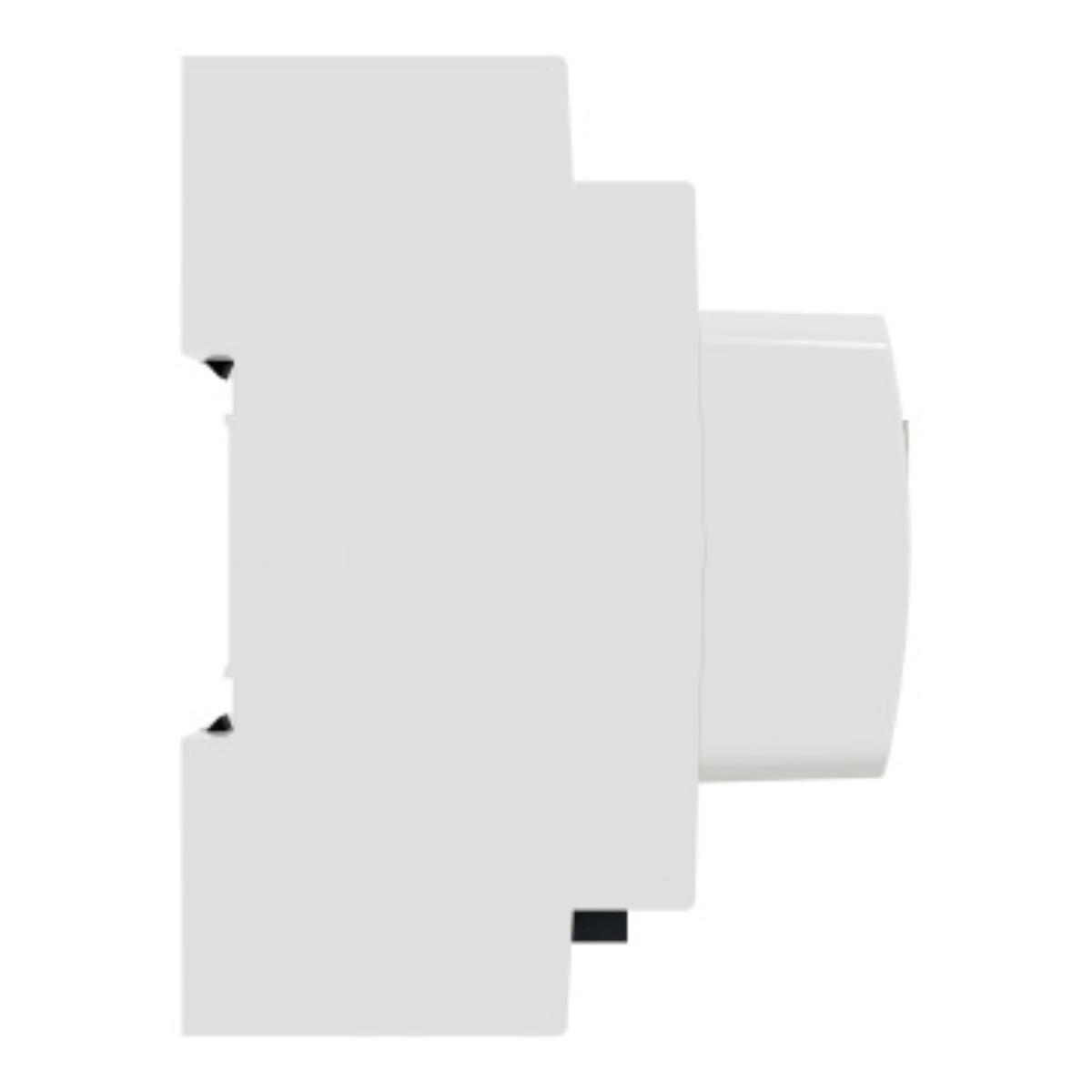

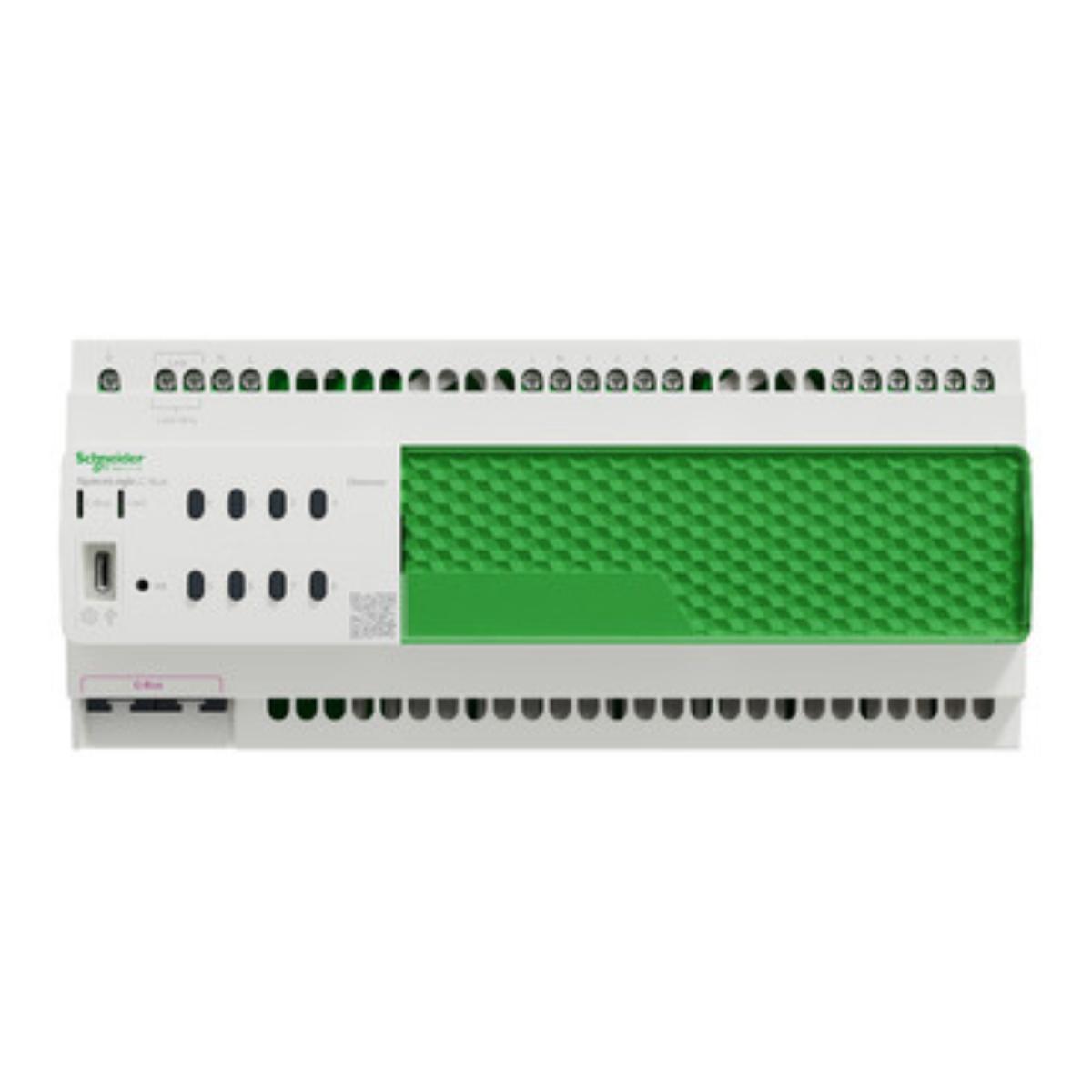

Clipsal 5508D1D C-Bus Dimmer, SpaceLogic, 8 channel, 1A per channel, DIN rail mount, Inbuilt switchable C-Bus power supply, White
The SpaceLogic C-Bus Digital Dimmers are new-generation lighting control dimmers from the SpaceLogic C-Bus home and building automation system that allow full customisation for elegant control of dimmable LED lights and other light sources.
Features:
• Compact: Up to 8 independent channels in 12 modules of size
• Trailing edge/Leading edge (manually selectable dimming technology mode per channel)
• Fully customisable dimmer channel load profiles and dimming curves unique to each channel
• Switchable, in-built C-Bus power supply (200 mA)
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 10-93 % non-condensing |
| Colour tint | White |
| Main colour | Tint White |
| Main colour tint | white |
| Depth | 63mm |
| Connector type | 2 RJ45 connectors for C-Bus |
| Ambient air temperature for operation | -5-55 °C |
| Mounting support | DIN rail |
| Dimmer type | leading edge |
| Supplier Code | 5508D1D |
| Load current | 1 A per channel |
| Ambient air temperature for storage | -20-60 °C |
| Load type | halogen lamp |
| Height | 92mm |
| Network frequency | 47...53 Hz |
| Width | 216mm |
| Number of channels | 8 |
| Device application | light control |
| Range | SpaceLogic C-Bus |
| Weight | 0.844kg |
| Standards | RoHS |
| Communication network type | C-Bus |
| Brand Name | Schneider Electric |
| Power supply output current | 8 A |
| Product certifications | CE |
| Device mounting | DIN rail |
| Device presentation | complete device |
| Provided equipment | 1 400mm patch cable |
| Net weight | 0.844 kg |
| Product brand | Schneider Electric |
| Product or component type | dimmer |
