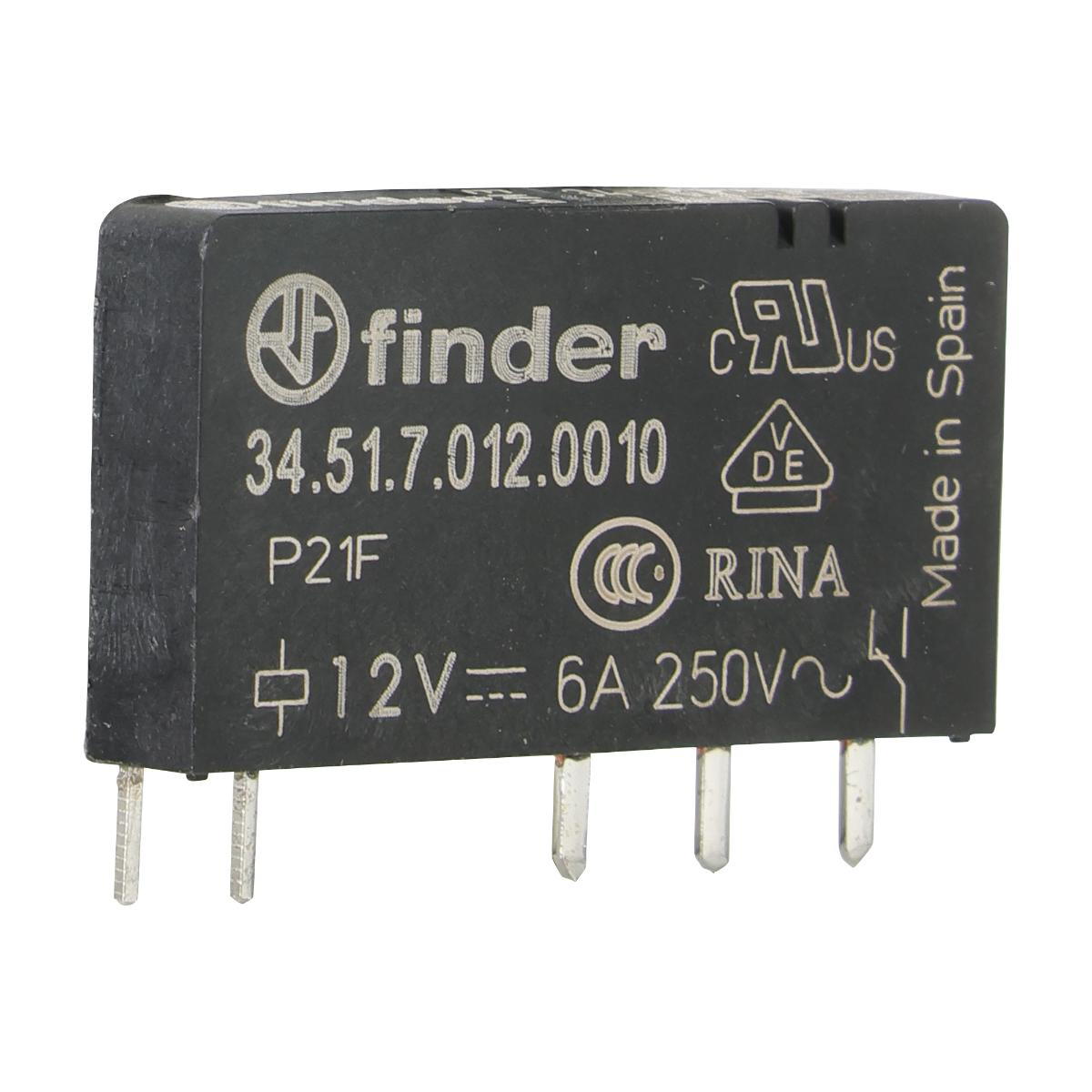

NHP 345112VDC Finder 34 Series Slim Printed Circuit Board Relay 6A 1 Changeover 12V DC Coil
Code: NHP345112VDC
Unit of measure:
EACH
Description
NHP 345112VDC Finder 34 Series Slim Printed Circuit Board Relay 6A 1 Changeover 12V DC Coil
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 14g |
| Max. vibration acceleration | 5m/s² |
| Number of contacts as change-over contact | 1 |
| Drive - switching attitude | Mono stable |
| Voltage type for actuating | DC |
| Electrical life at Un - In (service cycles) | 60000 cycles |
| Depth | 15mm |
| Rated switching power at AC-15 - 230V | 300VA |
| Supplier Code | 345112VDC |
| Suitable for mounting on PCB | Yes |
| Height | 28mm |
| Breaking capacity at DC-1 - 110V | 0.2A |
| Width | 5mm |
| Nominal current | 6A |
| Rated switching power at AC-1 | 1500VA |
| Mechanical life (service cycles) | 10000 cycles |
| Type of electric connection | Plug-in connection |
| Max. shock duration | 1 ms |
| Material contact | Silver nickel |
| Max. rated operation voltage Ue AC | 400V |
| Type of switch contact | Single contact |
| Nominal voltage AC | 250V |
| Brand Name | NHP |
| Control supply voltage Us at DC | 12V |
| ETIM Class | Switching relay |
| Material of contact insert | Thermoplastic |
| Drive - polarization | Polarity free |
| Operating temperature | -40-85°C |
