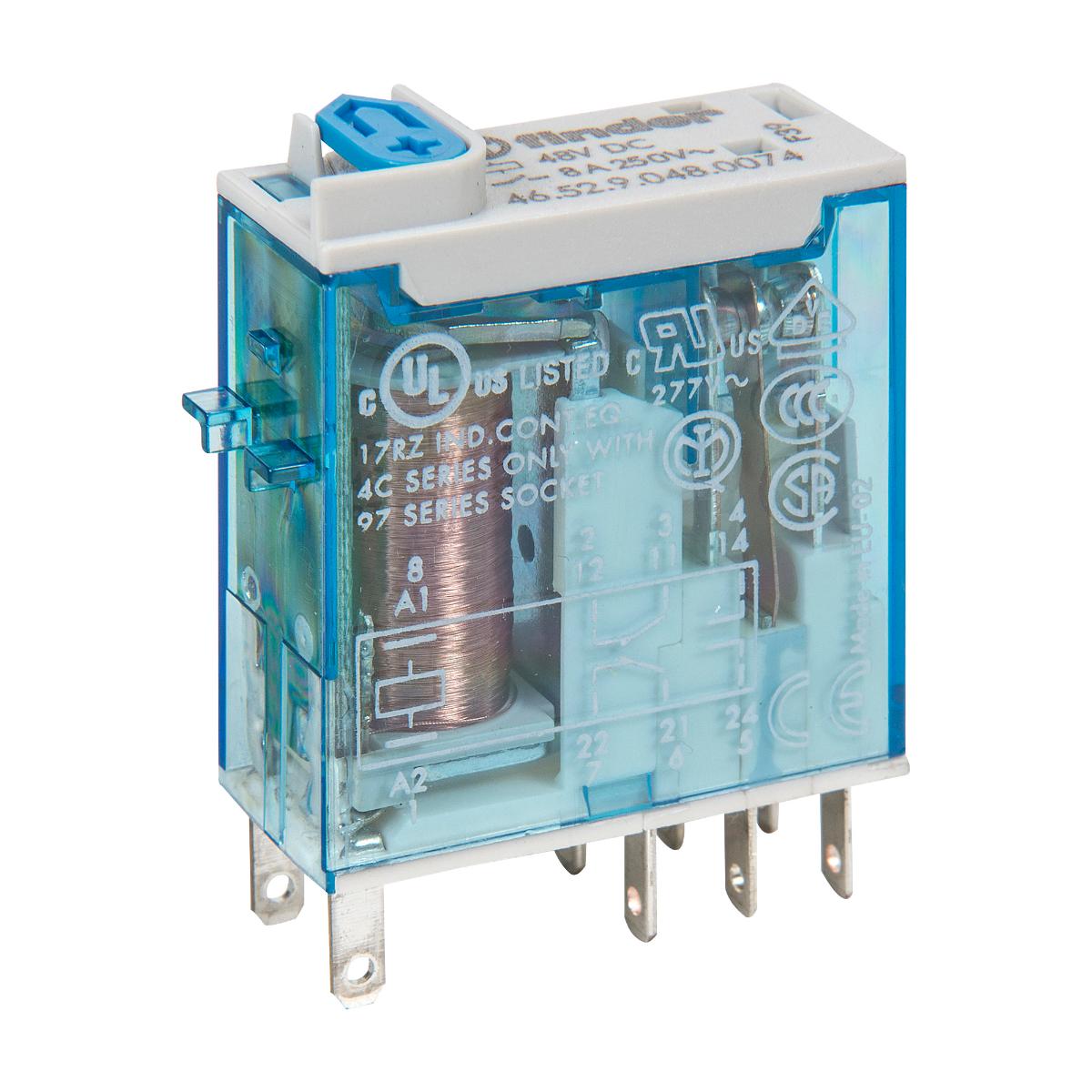

NHP 4652007448VDC Finder 46 Series Miniature Relay 8A 2 CO 48V DC Coil with PB plus LED plus Mech. Indicator
Code: NHP4652007448VDC
Unit of measure:
EACH
Description
NHP 4652007448VDC Finder 46 Series Miniature Relay 8A 2 CO 48V DC Coil with PB plus LED plus Mech. Indicator
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 20g |
| Max. vibration acceleration | 20m/s² |
| Number of contacts as change-over contact | 2 |
| Drive - switching attitude | Mono stable |
| Voltage type for actuating | DC |
| Electrical life at Un - In (service cycles) | 100000 cycles |
| Depth | 32.8mm |
| With LED indication | Yes |
| Rated switching power at AC-15 - 230V | 350 VA |
| Supplier Code | 4652007448VDC |
| With mechanical indicator | Yes |
| Height | 29mm |
| Breaking capacity at DC-1 - 110V | 0.5 A |
| Suitable for plug-in socket mounting | Yes |
| Width | 12.4mm |
| Nominal current | 8:00:00AM |
| Max. vibration frequency - operational | 150Hz |
| Rated switching power at AC-1 | 2000VA |
| Mechanical life (service cycles) | 10000000 cycles |
| With latching test button | Yes |
| Type of electric connection | Plug-in connection |
| Max. shock duration | 4 ms |
| Material contact | Silver nickel |
| Max. rated operation voltage Ue AC | 440V |
| Type of switch contact | Single contact |
| Nominal voltage AC | 250V |
| Brand Name | NHP |
| Control supply voltage Us at DC | 48V |
| ETIM Class | Switching relay |
| Material of contact insert | Thermoplastic |
| Drive - polarization | Polarity free |
| Operating temperature | -40-70°C |
