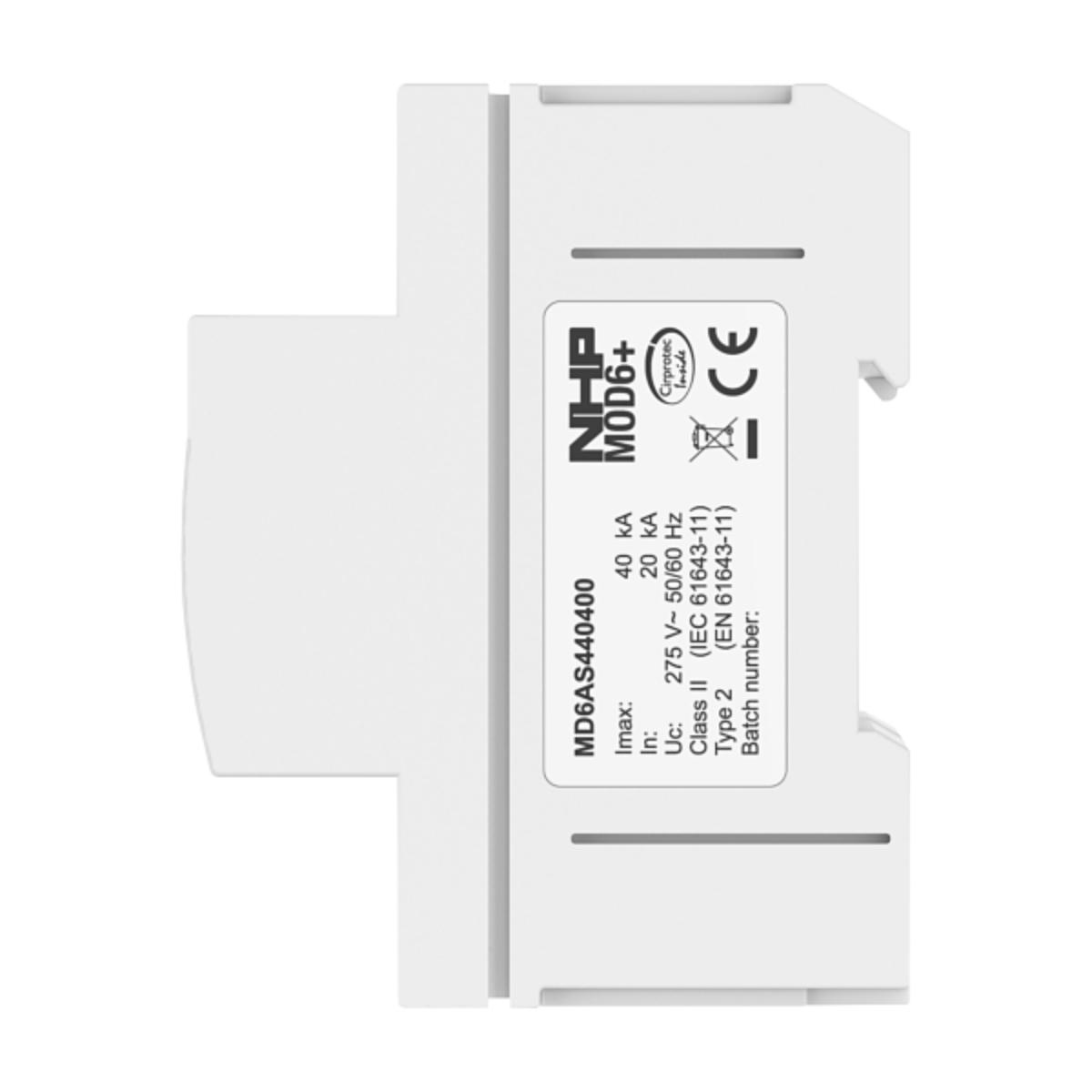

NHP MD6AS440400 MOD6+ Surge Diverter 3P+N, 40kA
Code: NHPMD6AS440400
Unit of measure:
EACH
Description
MOD6+ SURGE DIVERTER 3P+N 40KA
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Brand Name | NHP |
| Max. discharge surge current (8/20) | 40kA |
| Signalling at the device | Optic |
| Construction size | 4 modular spacing |
| Max. conductor cross section flexible (fine-strand) | 25mm� |
| Nominal discharge surge current (8/20) | 20kA |
| IP Rating | IP20 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Max. conductor cross section solid (solid- stranded) | 35mm� |
| Range | MOD6 |
| Max. continuous voltage AC | 275V |
| Nominal voltage AC | 240V |
