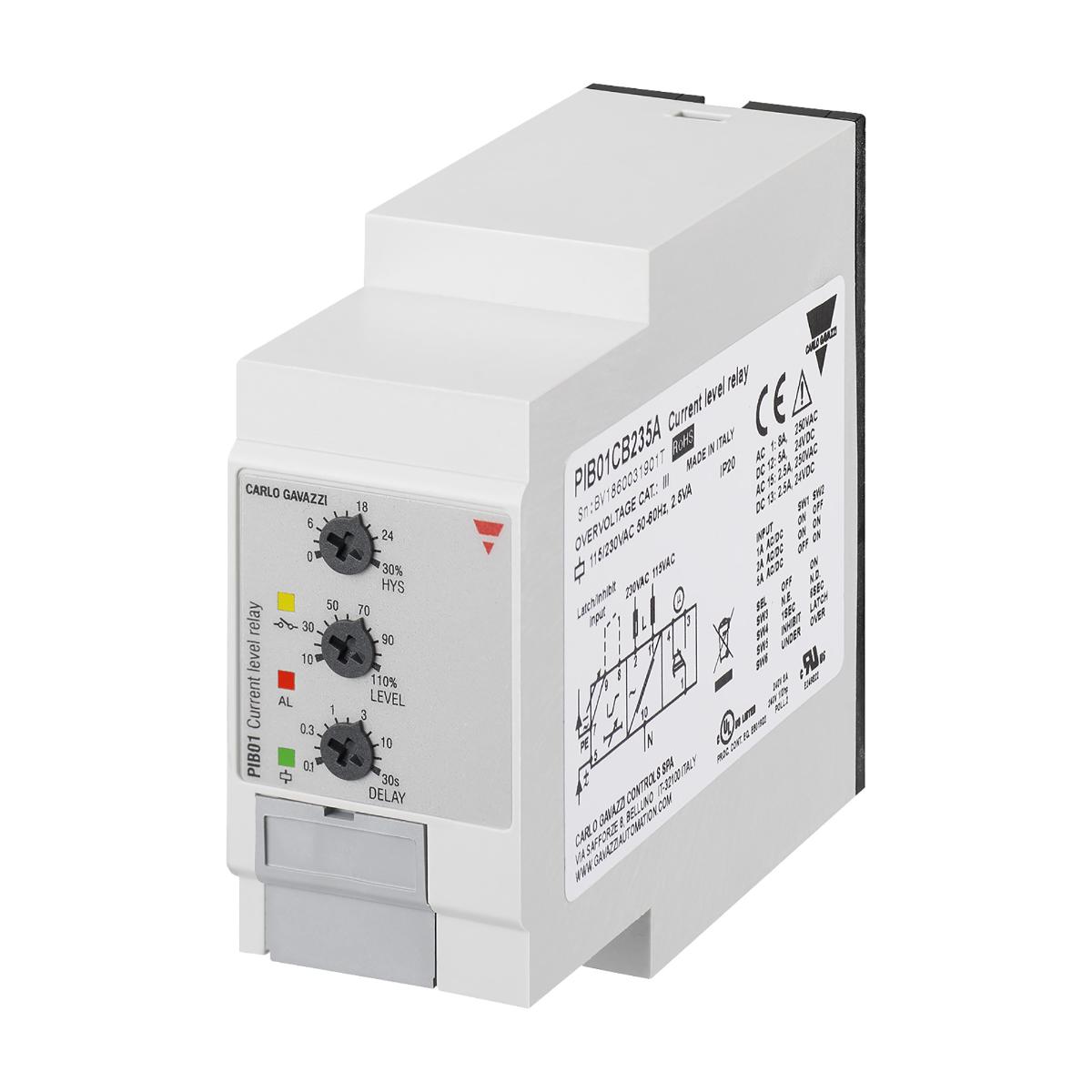

NHP PIB01CB235A Carlo Gavazzi Monitoring Relay Over or Under Current via Int-Shunt 0.1-5A ACDC and 115 to 230VAC 1CO
Code: NHPPIB01CB235A
Unit of measure:
EACH
Description
NHP PIB01CB235A Carlo Gavazzi Monitoring Relay Over or Under Current via Int-Shunt 0.1-5A ACDC and 115 to 230VAC 1CO
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Rated operation current Ie at DC-12 - 24V | 5:00:00AM |
| Type of electric connection | Plug-in connection |
| Number of contacts as change-over contact | 1 |
| Storage temperature | -30-80°C |
| Voltage type for actuating | AC |
| Material contact | Silver tin-oxide |
| Depth | 94mm |
| Weight | 0.15kg |
| Rated control supply voltage Us at AC 50HZ | 24-48V |
| Rated control supply voltage Us at AC 60HZ | 24-48V |
| Brand Name | NHP |
| IP Rating | IP20 |
| Rated control supply voltage Us at DC | 24-48V |
| Supplier Code | PIB01CB235A |
| ETIM Class | Current monitoring relay |
| Height | 80mm |
| Suitable for plug-in socket mounting | Yes |
| Width | 36mm |
| Rated frequency | 45-65 Hz |
| Control supply voltage Us at AC 50HZ | 230V |
