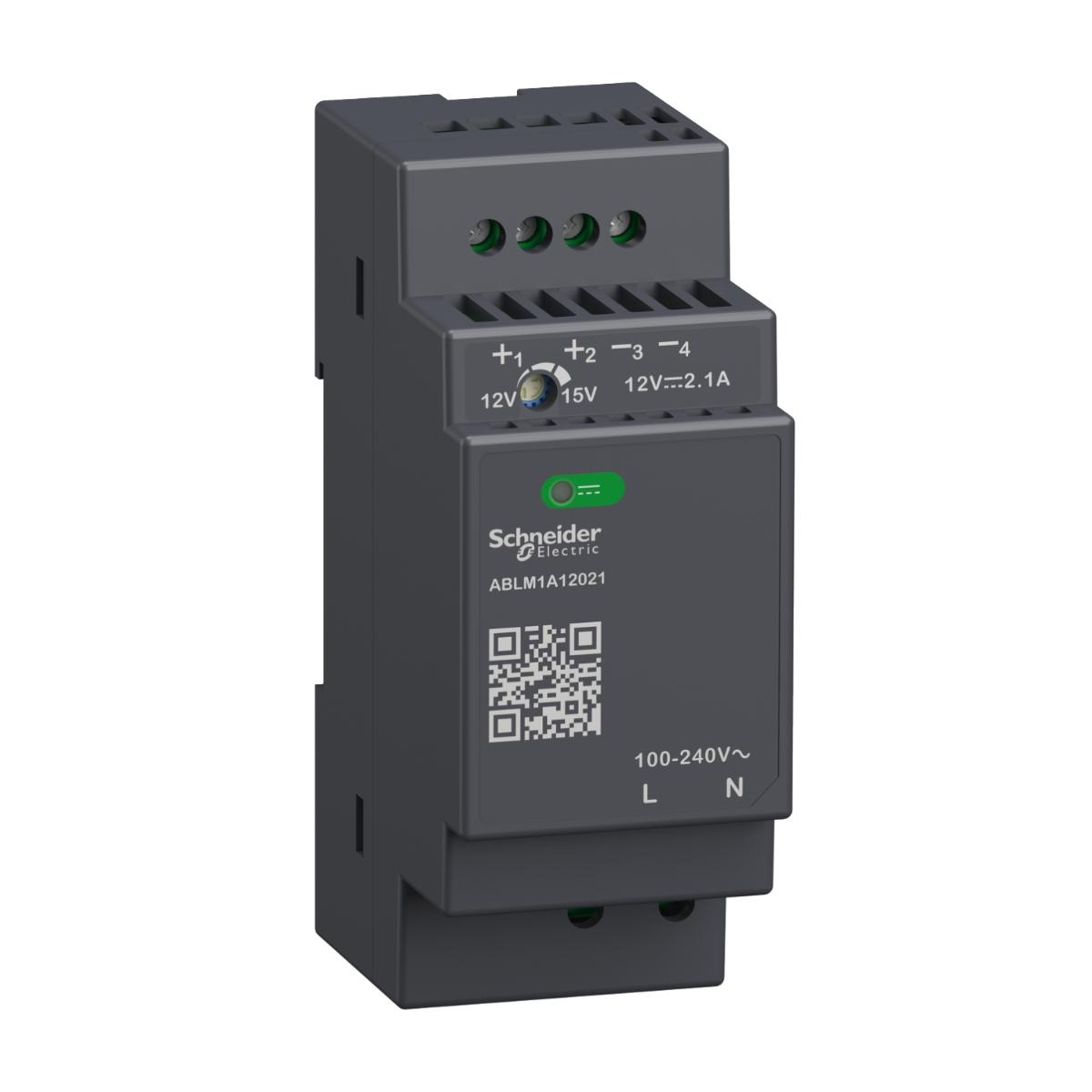

Schneider Electric ABLM1A12021 Regulated Power Supply, 100 to 240V AC, 12V, 2.1A, single phase, Modular
Code: SCHABLM1A12021
Unit of measure:
EACH
Description
POWER SUPPLY 12V 2.1A MODULAR
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Enclosure material | plastic |
| Electromagnetic compatibility | immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | 55-70 °C with current derating of 2.67 % per °C mounting position A < 2000 m |
| Input protection type | external protection (recommended) 20 A Curve C |
| Current consumption | < 0.6 A 230 V AC |
| Output voltage | 12 V DC |
| Efficiency | 85 % at 230 V AC |
| Supplier Code | ABLM1A12021 |
| Maximum leakage current | 0.25 mA 240 V AC |
| Power factor | 0.38 at 230 V AC |
| Power dissipation in W | 4.6 W |
| Vibration resistance | 10 m/s² (f= 9-200 Hz) conforming to IEC 60721-3-3 |
| Dielectric strength | 3000 V AC input/output |
| Shock resistance | 150 m/s² for 11 ms |
| Earthing system | TT |
| Power supply type | regulated switch mode |
| Line and load regulation | < 1 % at 0 to 100 % load |
| IP degree of protection | IP20 |
| Range | Modicon Power Supply |
| Overvoltage category | II |
| Power supply output current | 2.1 A |
| Electrical shock protection class | class II without PE connection |
| Response time | < 2 s |
| Pollution degree | 2 |
| Network frequency limits | 50-60 Hz |
| Inrush current | 50 A at 230 V |
| Connections - terminals | screw connection: 0.5...1mm²- (AWG 20...AWG 18) with wire end ferrule for input/output |
| Rated power in W | 25 W |
| Output voltage limits | 12...15 V |
| Input voltage | 100...240 V AC phase to phase |
| Supply | SELV conforming to IEC 60364-4-41 |
| Depth | 55.6mm |
| Mounting support | double-profile DIN rail |
| Height | 91mm |
| Electromagnetic emission | radiated emissions conforming to IEC 61000-6-4 |
| Output protection type | against overvoltage- protection technology: manual reset |
| Width | 36mm |
| Operating altitude | 2000 m...5000 m overvoltage category II |
| Status LED | 1 LED (green) output voltage |
| Meantime between failure [MTBF] | 1000000 h at 55 °C- 80 % load |
| Service life | 10 year(s) |
| Input voltage limits | 90...264 V AC |
| Residual ripple | < 100 mV |
| Output coupling | serial |
| Standards | EN/IEC 62368-1 |
| Product certifications | NEC: class 2 |
| Brand Name | Schneider Electric |
| Variant option | modular |
| Holding time | > 60 ms 230 V AC |
| Net weight | 0.170 kg |
| Product or component type | power supply |
| Load capacitance | 3000 µF |
